ESP8266EX Development Board

Overview

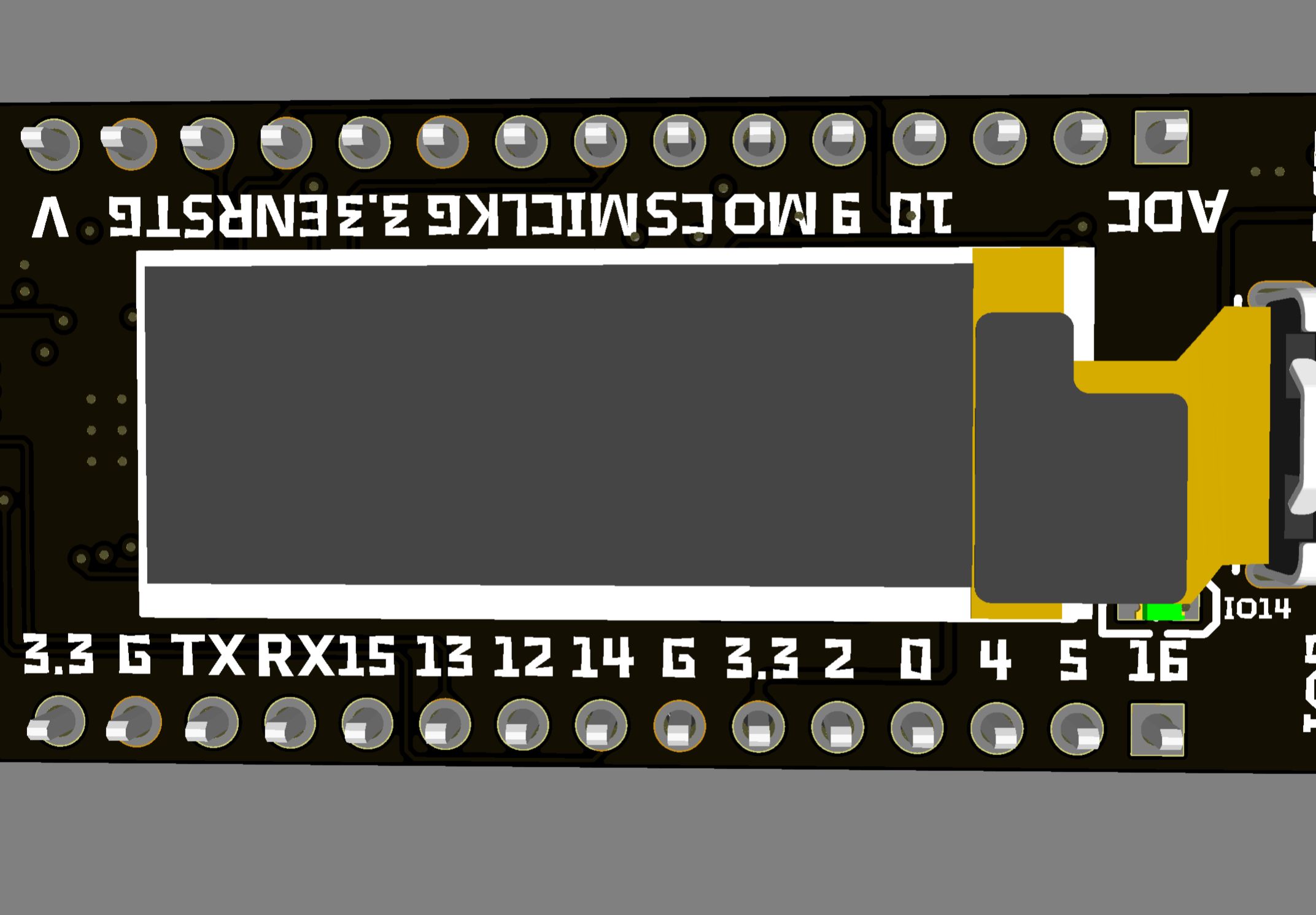

It uses ESP8266EX main control chip and 0.91-inch SSD1306 OLED screen. The screen does not occupy the IO port. If you need to use the IO port, you can disconnect the connection point on the back to release the IO pin.
It has a user LED and
uses TYPE-C interface for communication and power supply.
CH340C is used to bridge ESP8266EX .
LDO uses SPX3819 with a current output capacity of 500ma, which meets the working needs of ESP8266EX.
END
