15v power amplifier walkman audio circuit

Overview

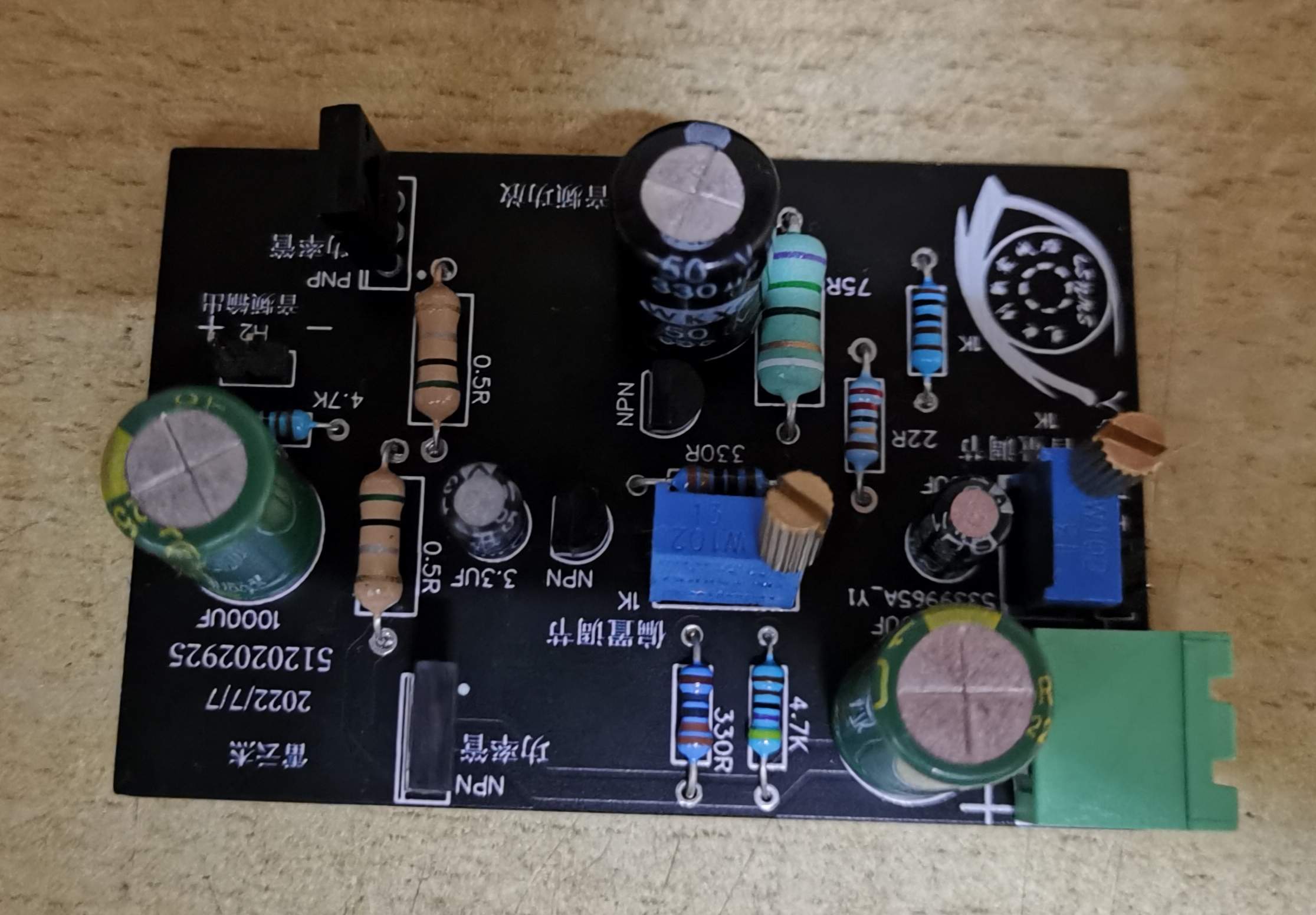

The target is a Walkman audio power amplifier circuit powered by 15V. The input signal voltage is 0.2V and the output is 0.5W. The input port uses a sliding rheostat for volume adjustment. The common emitter amplifier circuit performs one-stage amplification. The NPN tube and the PNP tube work Push-pull output. Due to crossover distortion, a Vbe multiplier is used to eliminate the distortion effect.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
