CH340C-TYPEC-Serial port burning tool

Overview

2022-6-18 Additional note: If the prompt "Computer cannot recognize" pops up after connecting to the computer, please carefully check whether the TYPEC interface is cold soldered (I soldered a few more today, and one of them is this problem).

There are many open source projects about the burner, so I won't say much.

Preface: The first burner I used was one end plugged into the USB port of the computer (as shown below). When using it, you may need a long DuPont line to connect to the microcontroller.

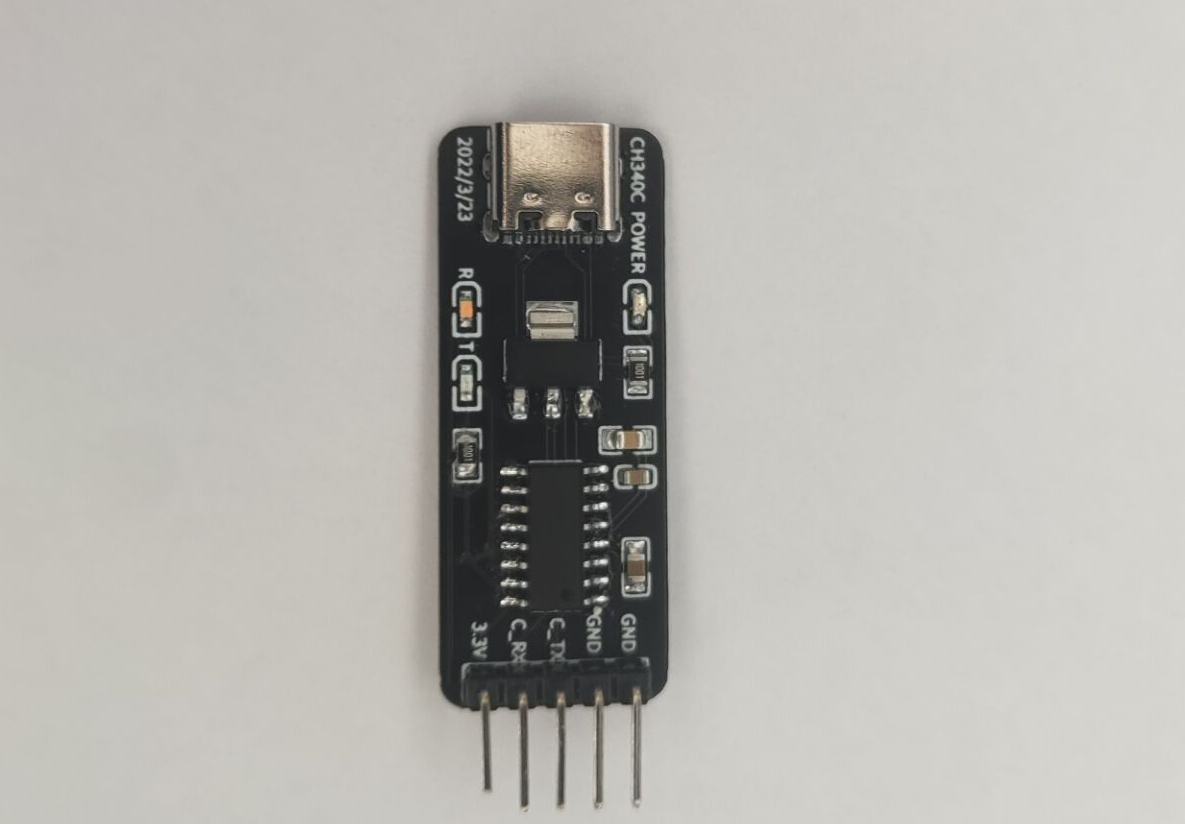

So I drew this board:

You can connect the computer USB port to TYPEC through a data cable, and connect the other end to the burning hole or DuPont line through a pin header to connect the microcontroller to complete the burning.

Actual use (burning diagram):

I lead out two GNDs to facilitate IO0 grounding. Please adjust the lead-out according to your actual needs when using it.
