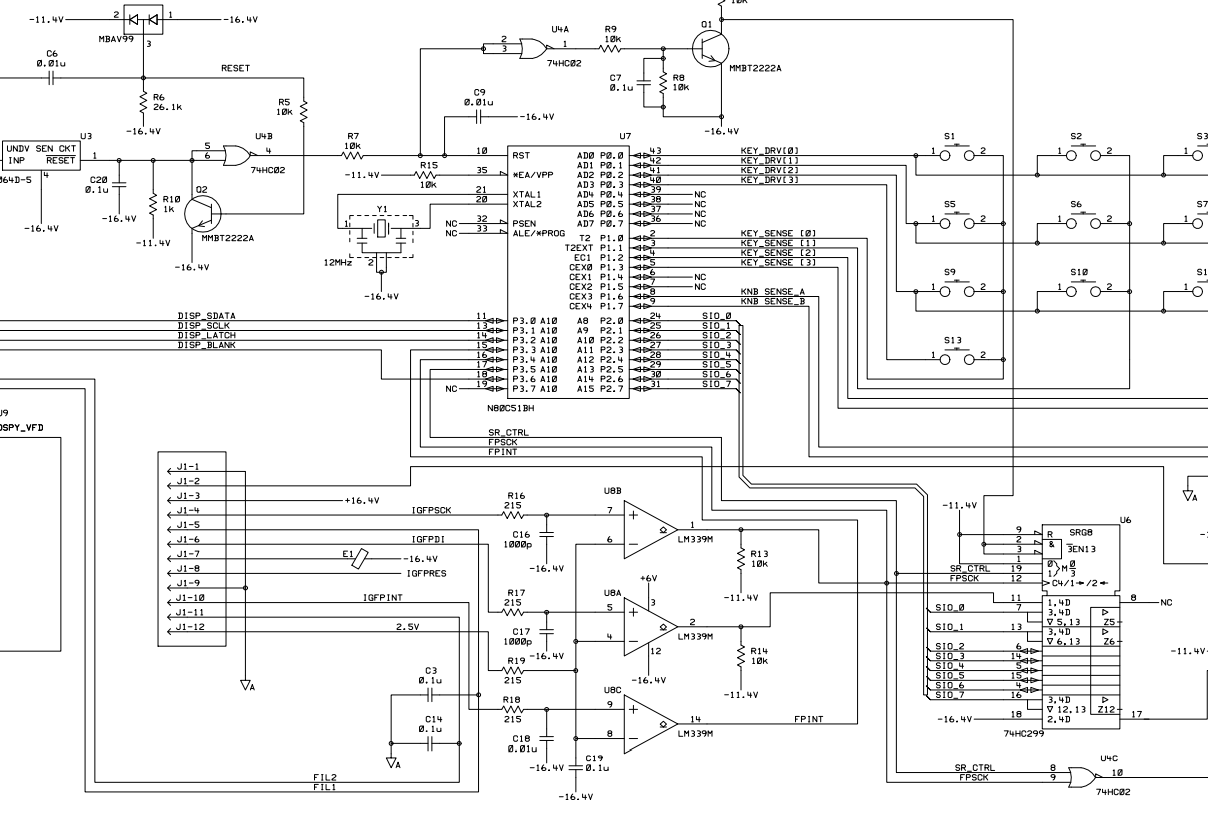

Agilent E3631A DC power supply schematic diagram

Overview

Several 51 chips were also used in the design. Specifications: Output ratings Output 1: 0 to 6 V, 0 to 5 A Output 2: 0 to +25 V, 0 to 1 A Output 3: 0 to -25 V, 0 to 1 A Accuracy (25°C ±5 °C) Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV+ Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA Ripple and Noise (20 Hz to 20 MHz) Normal mode voltage: <350 µVrms/2 mV pp, <350 µV rms/2 mV pp, <350 µV rms/2 mV pp Normal mode current: <500 µA rms, <500 µA rms, <2 mA rms25° C Readback Accuracy at ±5°C Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mV install

Design Files

Agilent-E3631-Service-Guide
