NCL30125FW300WGEVB: Fixed frequency current mode PWM controller for two switch forward topology

NCL30125FW300WGEVB: Fixed Frequency Current-Mode PWM Controller for Two Switch Forward topology

Overview

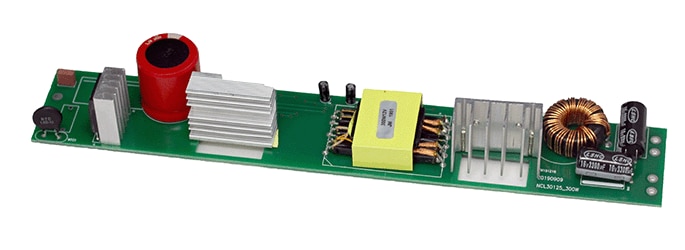

The NCL30125 eval bpard is a fixed frequency current-mode controller with integrated high voltage gate drivers. The

HV pin allow a quick start-up with dynamic self supply (DSS) features. The skip cycle mode insures good efficiency in light load condition. And enable flexible & robust design with controllable soft-start time, switching frequency and various protections.

Design Files

Documentation

NCL30125FW300WGEVB Design Notes
