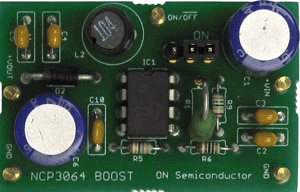

NCP3064PDBSTGEVB: PDIP-8 Boost Evaluation Board

Overview

The NCP3064 device supports a buck configuration with a wide input voltage range. The NCP3064 is a low cost converter that supports a peek current of 1.5A with a maximum duty cycle of 85.7%. The ON/OFF function allows turn the device to low consumption mode.
Features and Applications

Features
Input Voltage Range from 3.0 V to 40 V
Logic Level Shutdown Capability
Low Power Standby Mode, Typical 100 uA
Output Switch Current to 1.5 A
Adjustable Output Voltage Range
150 kHz Frequency Operation
Precision 2% Reference
Internal Thermal Shutdown Protection
Cycle-by-Cycle Current Limiting
NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
These are Pb-Free Devices

Applications
StepDown, StepUp, and Inverting supply applications
High Power LED Lighting
Battery Chargers
