NCP45521IMNGEVB: Integrated load switch with ultra-low Ron, 11.5A, evaluation board

NCP45521IMNGEVB: Integrated Load Switch with Ultra-Low Ron, 11.5A, Evaluation Board

Overview

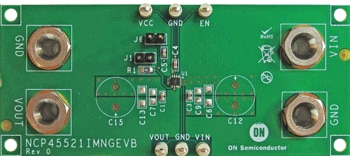

The NCP45521IMNGEVB evaluation board is designed to quickly assess the NCP45521, an integrated load switch. The ecoSWITCH™ NCP45520, NCP45521 series of load management devices provide a component and area-reducing solution for efficient power domain switching with inrush current limit via soft start. In addition to integrated control functionality with ultra low on-resistance these devices offer additional system safeguards and monitoring via fault protection and power good signaling. This cost effective solution is ideal for power management and hot-swap applications requiring low power consumption in a small footprint.
Features and Applications

Features
Advanced Controller with Charge Pump
Integrated N-Channel MOSFET
Soft-Start via Slew Rate Control (Adjustable)
Input Voltage Range 0.5 V to 13.5 V (18V Tolerant)
Low Standby Current
Quick Output Discharge Function (Adjustable)
Fault Protection: Over Temperature
Fault Protection: Under Voltage Lockout
Fault Protection: Short-Circuit Protection
