NCV7685HIGH1GEVK: NCV7685 high-end EVB/REF kit

NCV7685HIGH1GEVK: NCV7685 HIGH-END EVB/REF Kit

Overview

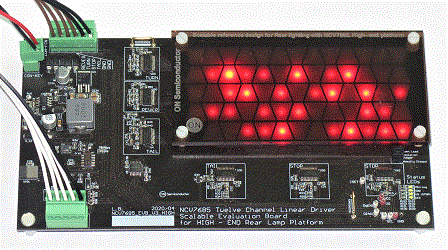

The Scalable reference design kit / evaluation board demonstrates
the Rear Combination Lamp Application with the multiple NCV7685
LED linear current drivers. Three different variants (Low, Mid,
High-End) represents different target platforms. With using the same
LED display for every variant, the difference stilling performance can
be gained.
