NCV78763R1GEVK: NCV78763 Kit

NCV78763R1GEVK: NCV78763 KIT

Overview

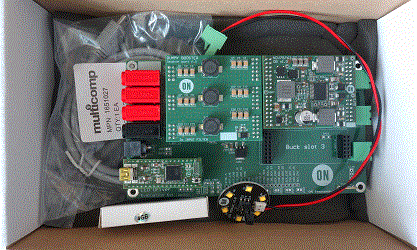

The plug-and-play NCV78763R1GEVK evaluation kit is delivered in paper box and is intended for fast evaluation of NCV78763 Automotive Boost-to-Buck Power LED Driver for driving two LED strings up to 1.6A/60V.
It contains all necessary hardware and software needed to control the NCV78763 device from your PC. The user-friendly Graphical User Interface (GUI) makes it possible to operate the evaluation kit in an easy way.
The provided evaluation kit gives a lot of flexibility during your development process. Easy access to several signals makes debugging very easy and gives you the possibility to connect the evaluation kit with your own application which reduces the development time.

This kit consists of the following orderable parts which can be ordered separately:

• NCV78763R1DAGEVB NCV78763 Daughter Board

• NCV78XXXBSTR1GEVB Dummy Booster Board

• NCV78XXXDRVR1GEVB LED Driver Mother Board

• ONMCU5V0R1GEVB MCU Control Board

• LEDMODULE6R1GEVB LED module 6 LEDs round shape
