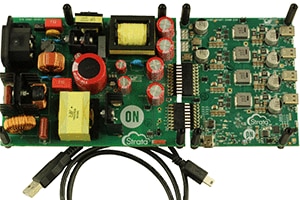

STR-USBC-4PORT-200W-EVK: USB AC-DC 4-port 200W power supply with Strata support

The 4-Port USB-PD Source showcases ON Semiconductor's broad portfolio of USB-PD power solutions, including the FUSB307 PD Port Controller, the FUSB252 HV Protection Switch, and the NCP81231 buck controller. The universal 200W AC/DC supply uses the NCP1399 LLC controller, the NCP1615 PFC, and NCP4305 secondary SR controller providing a highly efficient front-end solution. All ports are 100W capable with a total max system power limited to 200W using our First Come First Served power management algorithm. The Strata software provides powerful controls to test power profile configurations such as optional "assured" port 1 power, experiment with various fault and foldback features, and monitor system telemetry while charging various load devices. Design collateral such as schematics, PCB layout, test reports, etc. are supplied in the same Strata interface to ease evaluation. See the Strata webpage at www.onsemi.com/strata for more details!Click to Download Strata
Features and Applications


Features
Four USB Type-C Outputs
Supports USB Power Delivery up to 100W Per Port
Power Management Algorithm to Intelligently Deliver 200W Across Four Ports
Default PDOs = 5V, 7V,8V, 9V, 12V, 15V, 20V at 5A
Input and Output Power Monitoring
Thermal Protection, Overcurrent Protection
NCV81231Buck + FUSB307 Port Controller





Applications
Consumer Electronics
Computing
Point of Sale
USB Type-PD Systems
