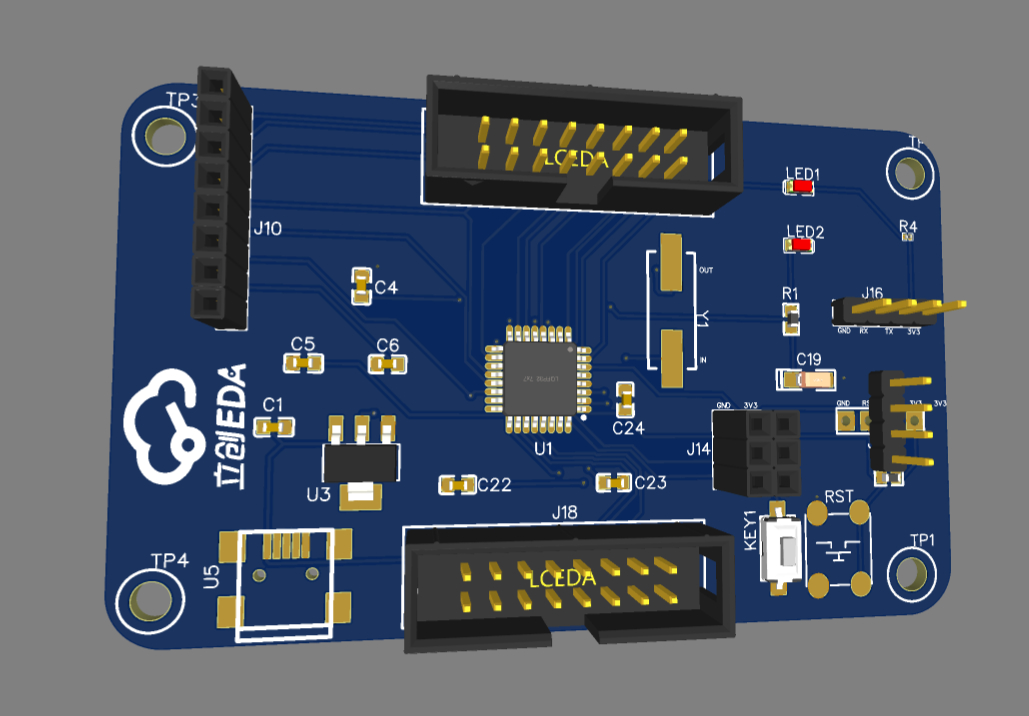

STM8S development board

Overview

1: OLED display interface;
2: Chinese font module interface;
3: One reset button, one user button;
4: All serial port pin headers are led out;
5: SWIM download port is led out;
6: 3.3V, 5V power supply is led out through pin headers , convenient for debugging peripherals;
7: One power LED indicator and one user LED indicator;
8: Using USB power supply.
