Digital and Electronics Course Design

Overview

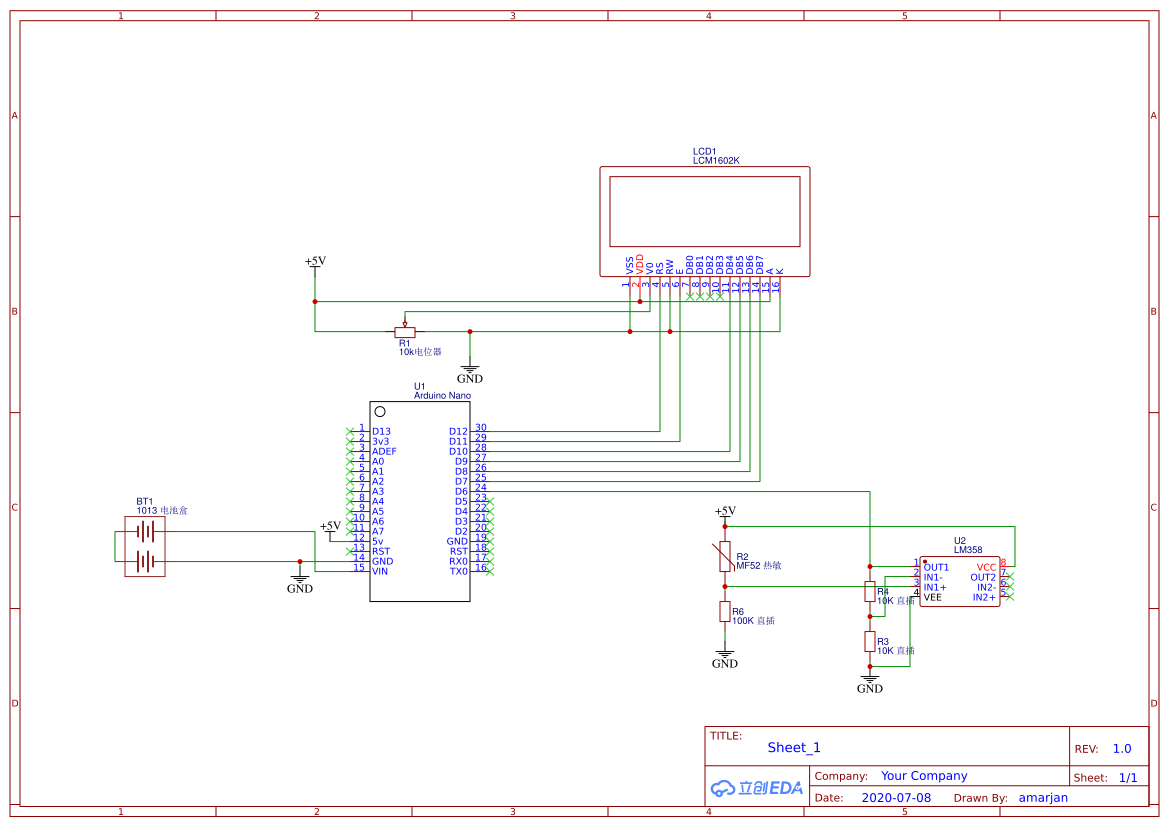

This circuit is powered by two 18650 batteries connected in series, the control chip uses an Arduino Nano development board, and the display is a 1602 LCD screen. The temperature information is read by the arduino through a PTC 1k positive temperature thermistor and a 1k fixed value resistor voltage divider.
