LED pseudo-nixie tube

Overview

Video displayed at Station B: Introduction to
LED pseudo-nixie display

:

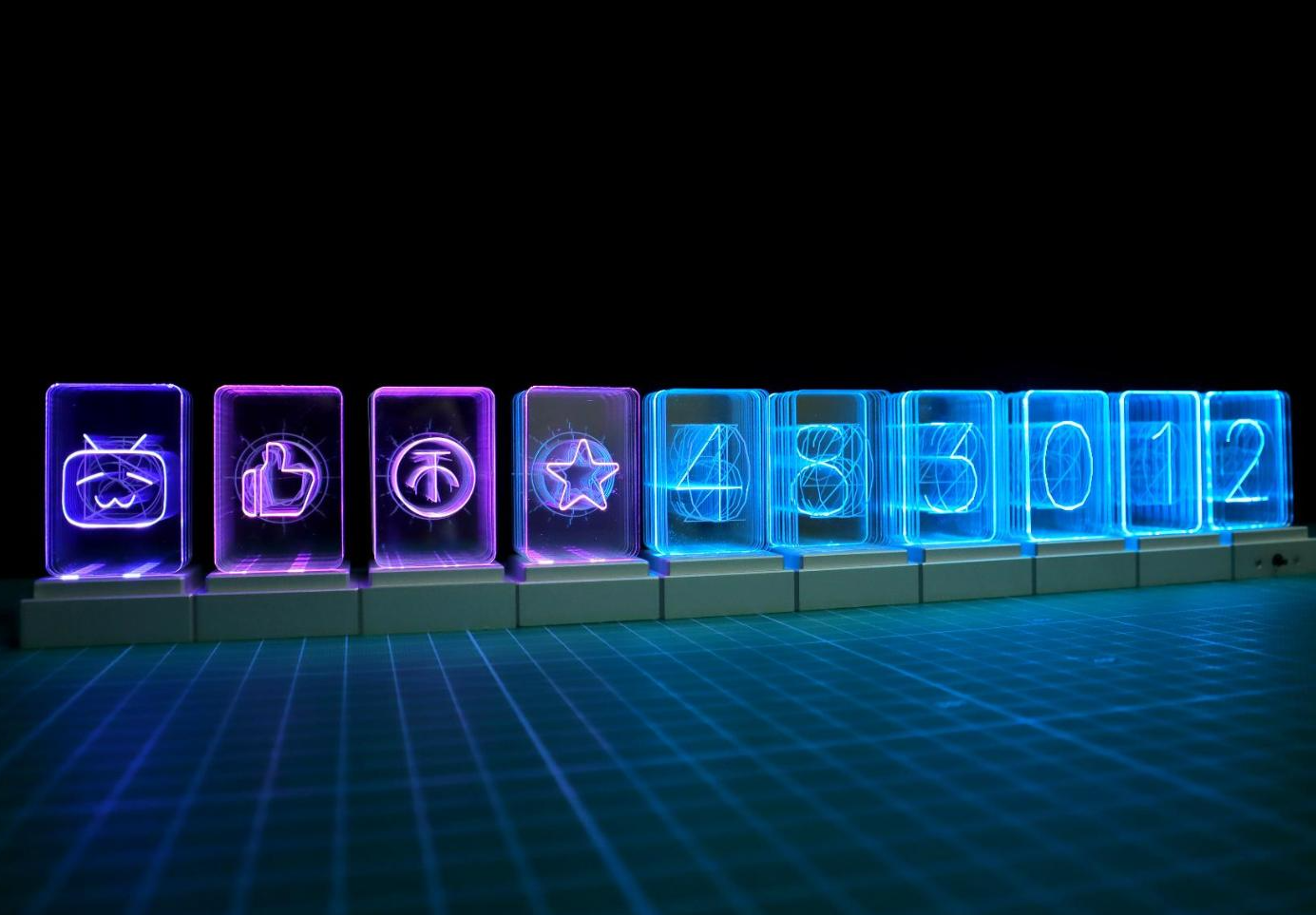

modular LED pseudo-nixie tube, with magnetic connections between modules (power and data). Multi-functional display: number of fans of Station B, three consecutive data, clock, stopwatch, and simple animation. Switch functions via a 5-way multi-function joystick. The shell is made of aluminum alloy CNC processing (3D Monkey), which is very textured.

Model files, codes, etc.:
They are all in the attached compressed package. They are all source files and can be modified at will.
The main control is ESP8266, and I forgot to write

a tutorial in the information:
upload the information first, and those with experience can start hands-on first. Detailed tutorials will be added later.

Design Files

LED pseudo-nixie tube-black black technology.zip
