# USB chip/CP2104-F03-GMR verification scheme

**USB chip/CP2104-F03-GMR [Lichuang Mall link](https://item.szlcsc.com/48747.html)**
### PCB description
! [CP2104_T.png]

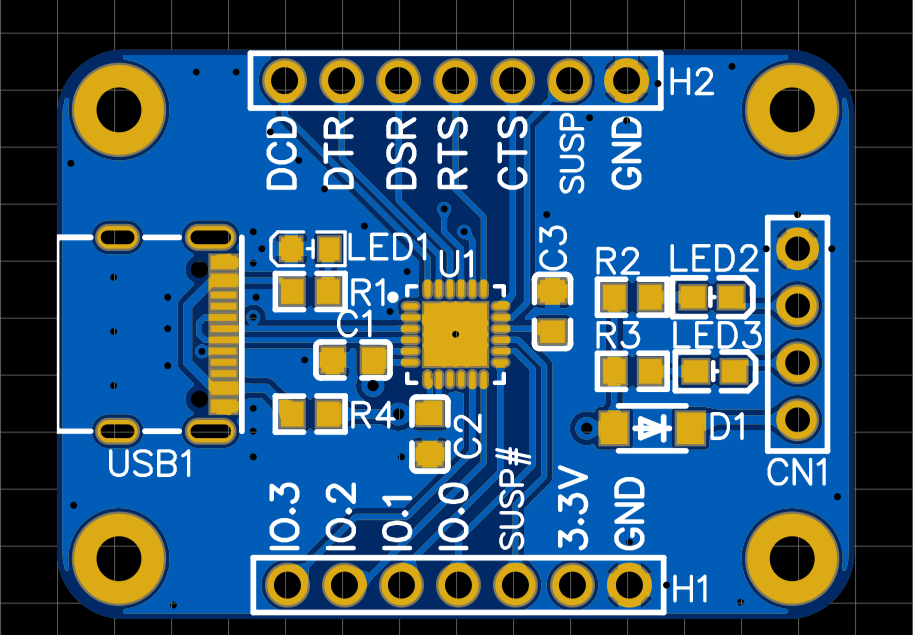

+ This project is a CP2104 verification solution board, which leads out all the IOs of CP2104 and can verify the ROM configuration of CP2104; the serial port IO is led out separately using 4pin headers. Nowadays, the use of Type-C interface is basically popular, so this design uses Type-C as the USB interface;
+ The four positioning holes of the board are suitable for M2 copper pillars. The distance between the center holes of the long side copper pillars is 30cm, and the distance between the center holes of the short side copper pillars is 30cm. Hole spacing 20cm;
+ More USB driver download links [CP2104 driver](https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers)
