Simple single power supply to dual power supply circuit

Overview

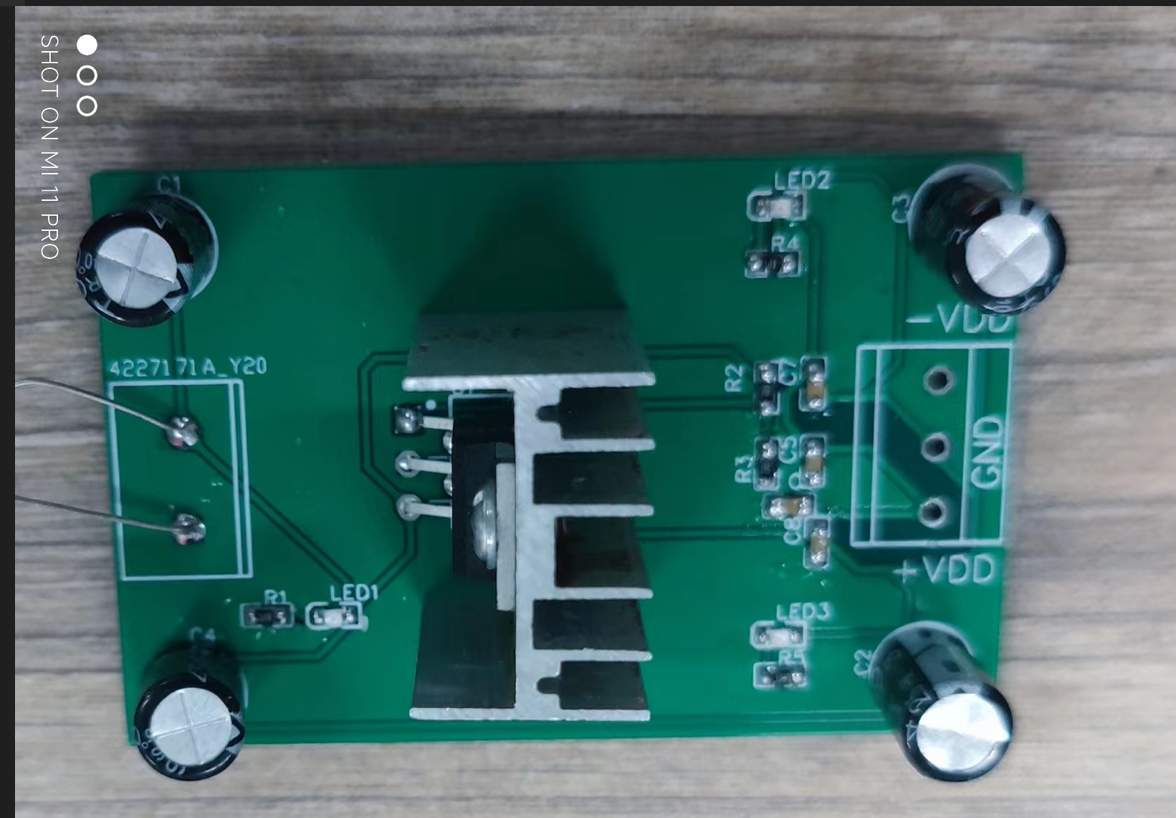

This design is a single-turn dual power supply module based on TDA2050. It supports a maximum of plus and minus 0~15 volts. It automatically adjusts according to the input voltage. The maximum input voltage cannot exceed 30V and can only be used as a power supply.
