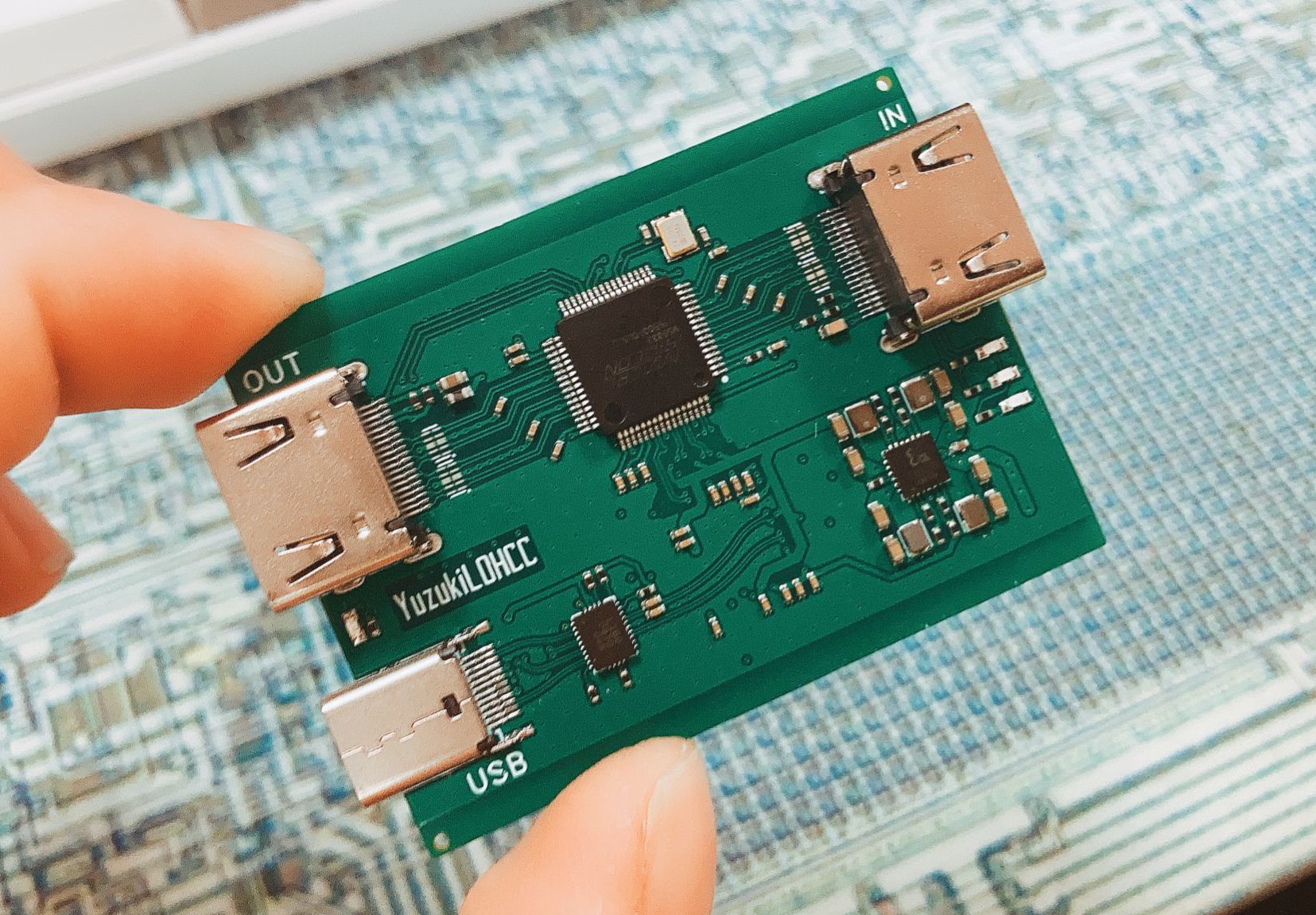

YuzukiLOHCC Pro USB3.2 Gen1 Capture Card

Overview

Parameters:
Support HDMI 4Kx2K@30Hz and HDMI 2.0, YCbCr420 4Kx2K@60Hz loop-out
Support 10/12/16-bit color depth loop-
out Loop-out Adaptive input balanced
loop-out Integrated HDCP Key
Built-in EDID RAM
Type C USB3.2 Gen 1 interface, support positive and negative insertion
Full-height HDMI
Compatible with DVI 1.0
Support capture HDCP 1.4 (the firmware does not provide HDCP keys, please apply for keys yourself
Support YUV&JPEG output
Compatible with UVC 1.0
Support audio capture
Support video capture
Maximum video input 3840x2160@30
Maximum output resolution 4096*2160@15
Support capture 1920*1080@60

Bilibili: https://www.bilibili.com/video/BV1sT411P7me/
Click on the picture:

Firmware burning method:
Use SPI NOR programmer to write to SPI NOR and then solder

other
YuzukiHD open source hardware and software exchange group: 685554363

Design Files

YuzukiLOHCCPro.bin
