Relay control board

Overview

1: Product introduction

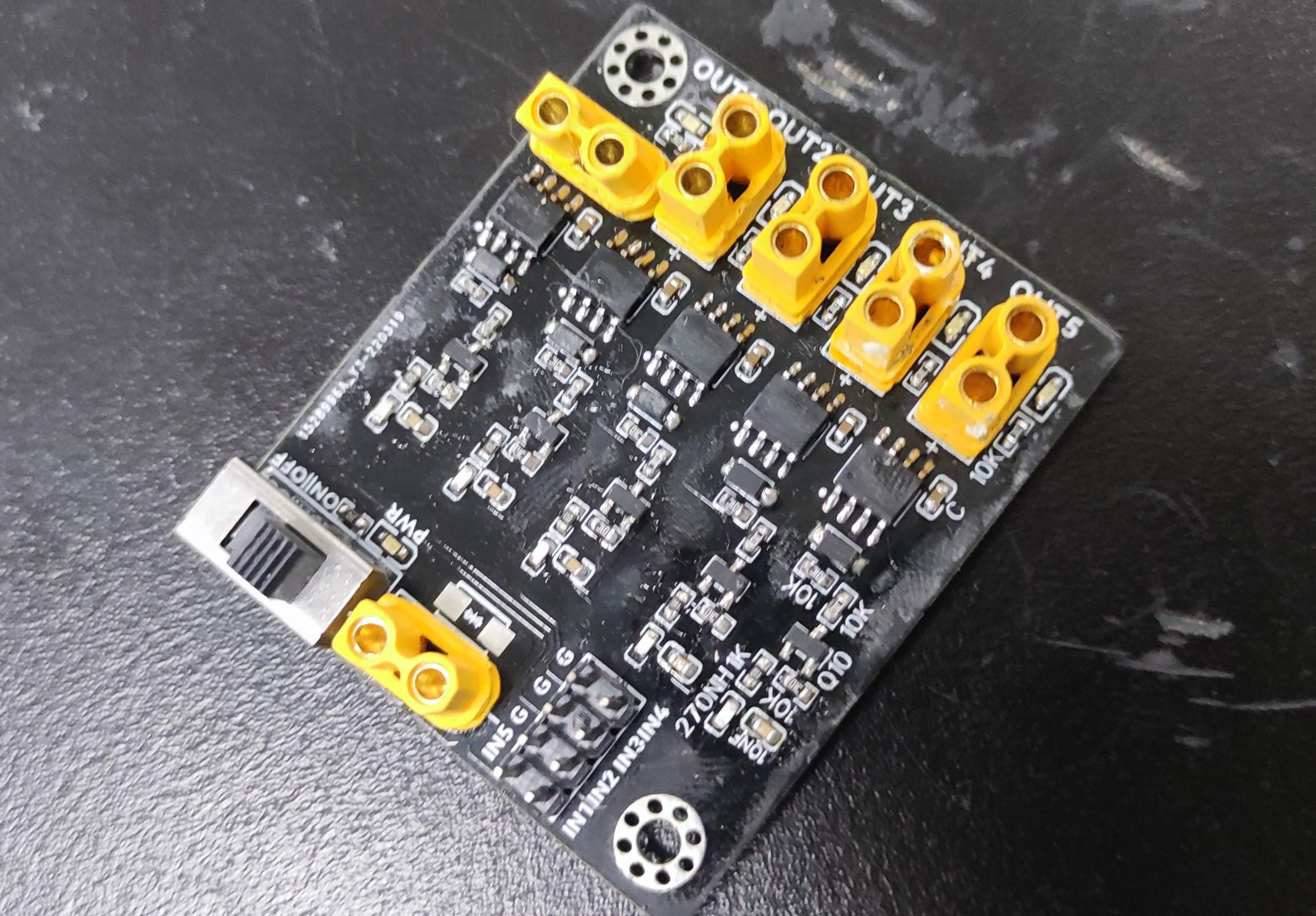

The input voltage is 0~28V, and the current used in each branch is recommended to be less than 5A. It is recommended to use 6S and below batteries for power supply. The five-way switch board controls the power on and off through the IO port, opening when it is high and closing when it is low. The mark on the silk screen is the control path corresponding to the IO port.
2: The application scenario
meets the power supply requirements below 6S and can be used in places that require multi-channel power supply control, such as controlling multi-channel solenoid valves.
