[Glow] World Line Change Meter!

Overview

"Destiny, manifested again!

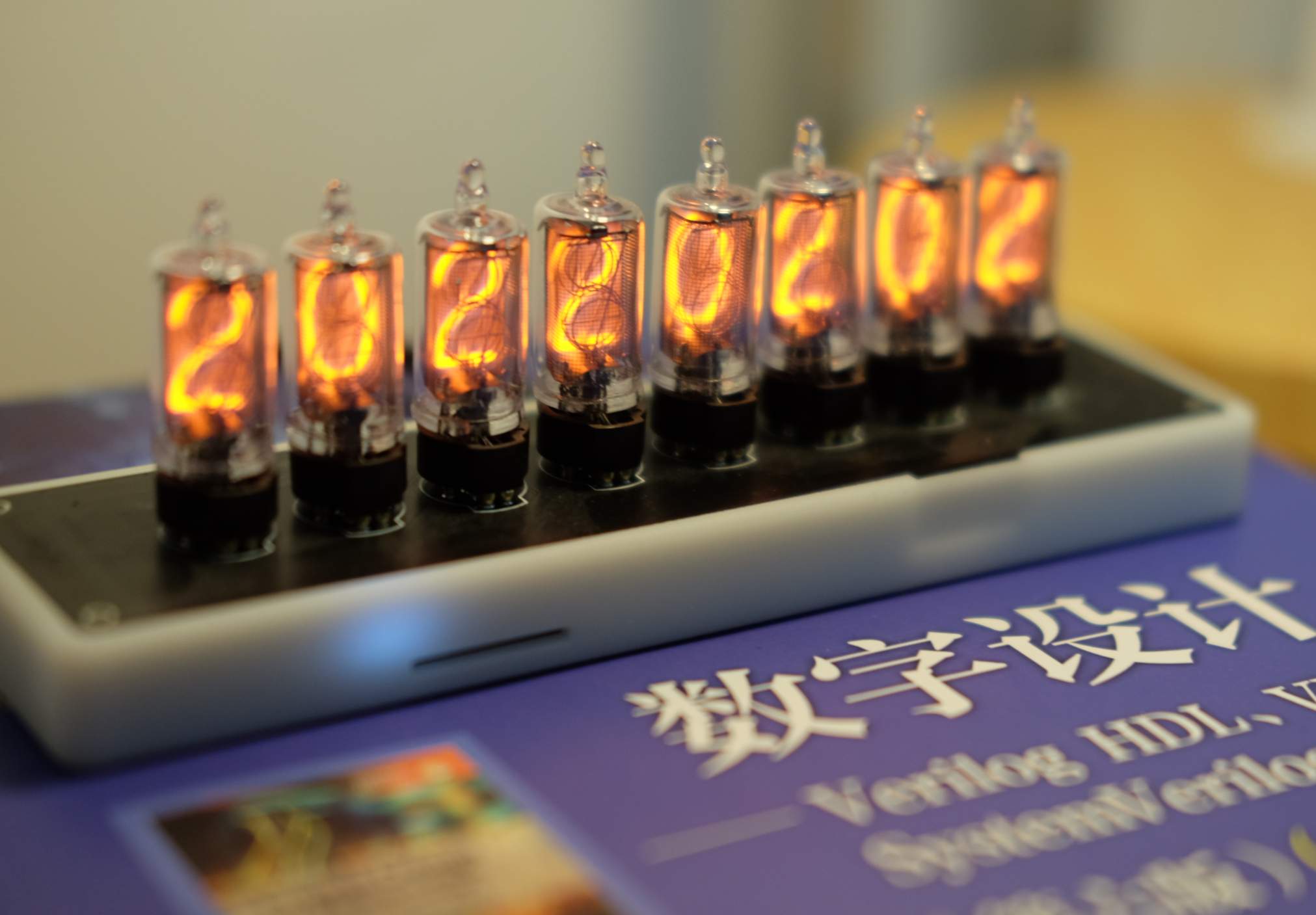

World line change meter - based on NL5870ST,

the timeline baseline is 2.0220222...

Progress
[2021.06.07] Updated appearance

[2021.06.01]
The next version of the overall design may remove the SD card peripheral because It's really useless...

[2021.05.15] Shell design
Redesign the shell, Jialichuang 3D prints YYDS...

[2021.04.15] Baseboard design:
The second version has been sent for proofing, and
the design using HV5523+ESP32 is being adapted on the PCB. Equipped with STM32+BLE, waiting for the third version of PCB to be the official version

[2021.04.10] Top plate design

album

PS
PS1: The pins on the top plate use gold-plated pins, just use the picture below to purchase:

PS2: Boost module:

PS3: BTB connector:
