FOC control panel

Overview

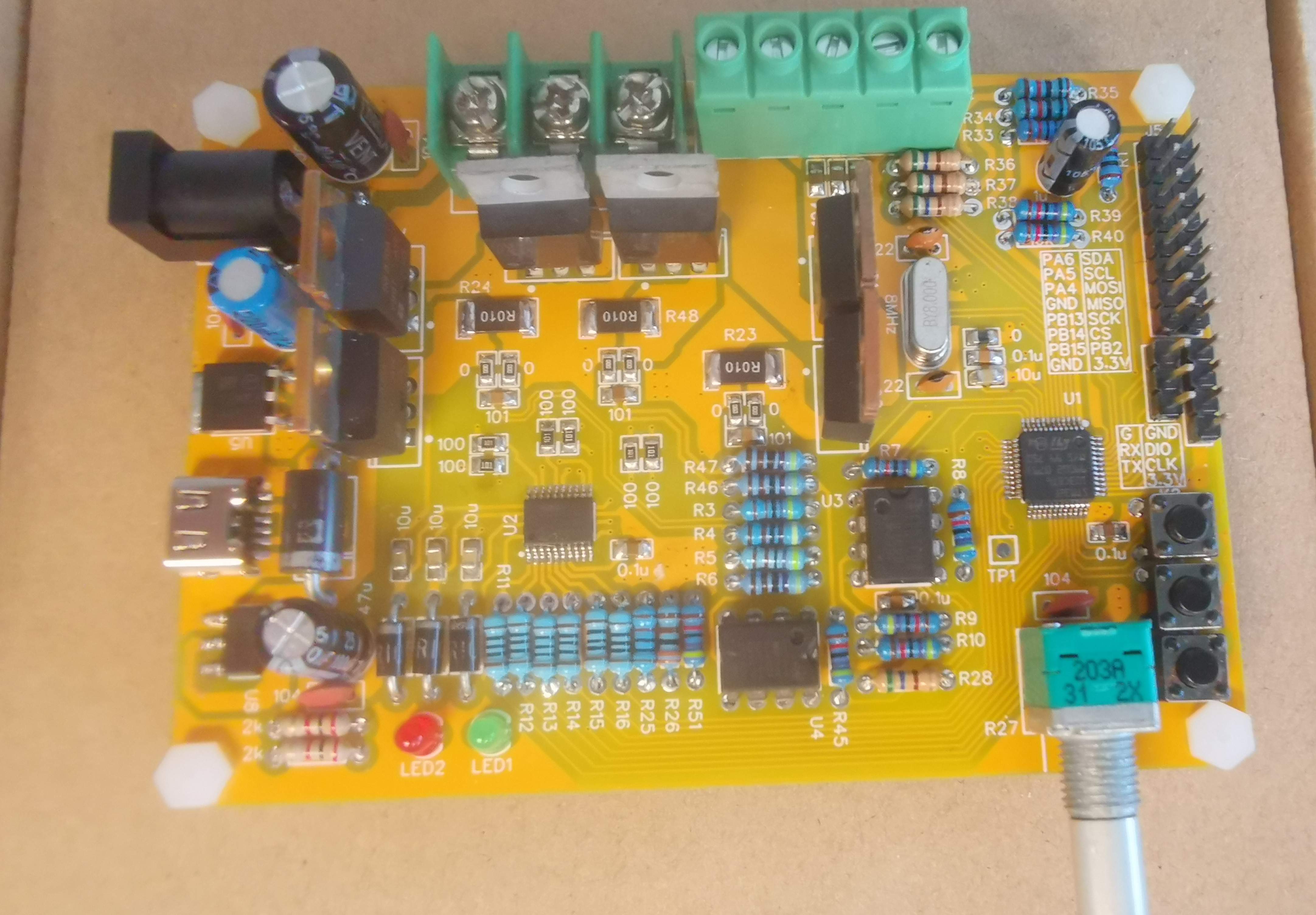

I originally wanted to use a dedicated current detection chip for current detection, but INA240 is too expensive. I still have a few LM358 operational amplifiers on hand, so I used it. I made do with it. The power supply can be changed to 5V. Here, 3.3V is used. The magnification cannot be set very high.
