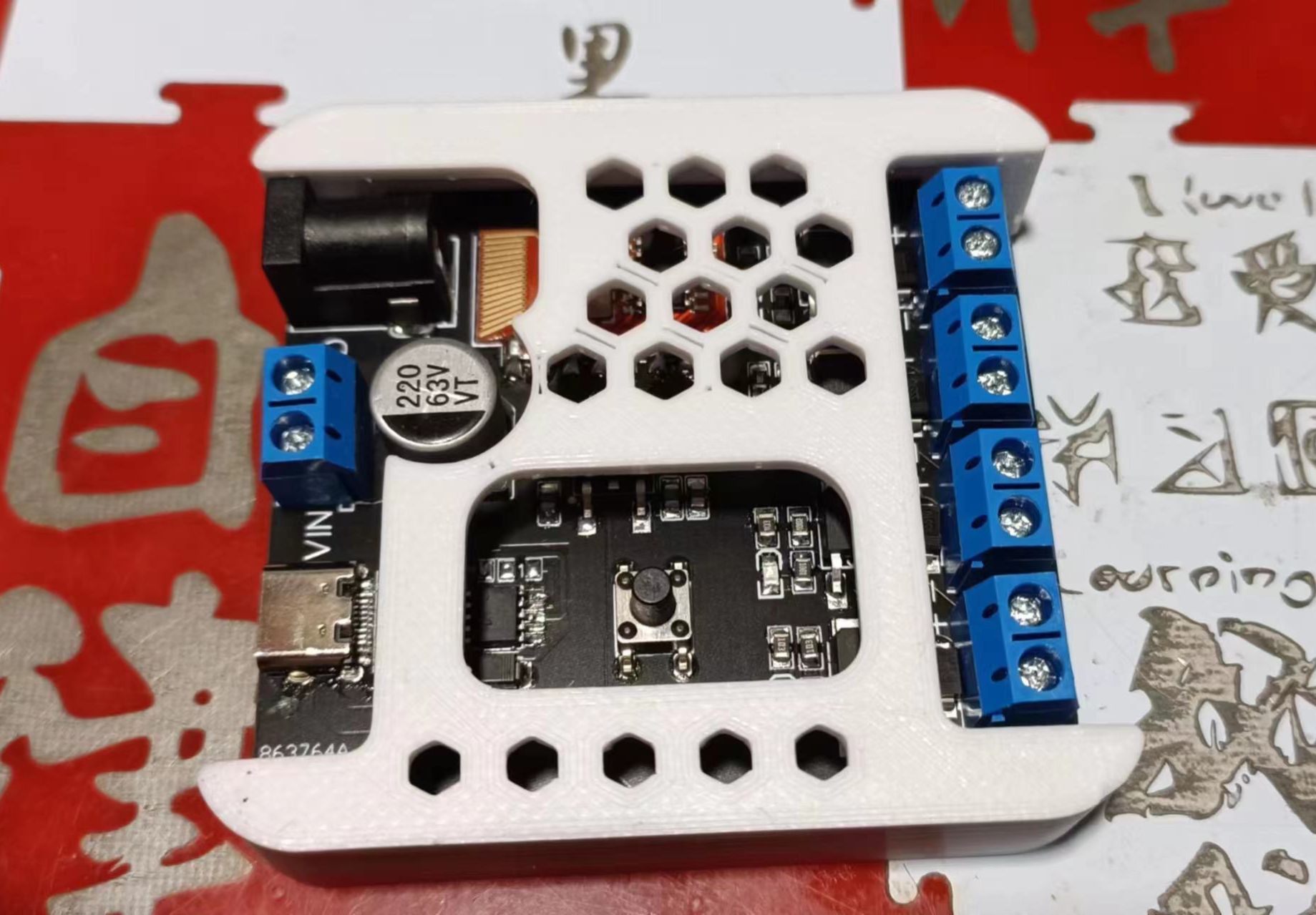

433M (Ling-R1A) four-way receiving module

Overview

1 Input voltage: 9v-28v
2 R15 does not weld by default and induces 20v by default for fast charging. Replace R15 to select a different induction voltage.
3 The output voltage is the input voltage, and each channel can output 30w power.
4. Purchase the receiving module (Ling-R1A) M1 flip mode module
5. Double-click the pairing button. When the module starts to flash and enter the pairing mode, press the remote control to pair. After pairing is completed, click the button to reset.
6 The remote control uses a 433mhz four-way remote control, supports coding 1527/2240/2262, can store 80 remote control IDs, and Changan resets in 8 seconds to clear the pairing information.
