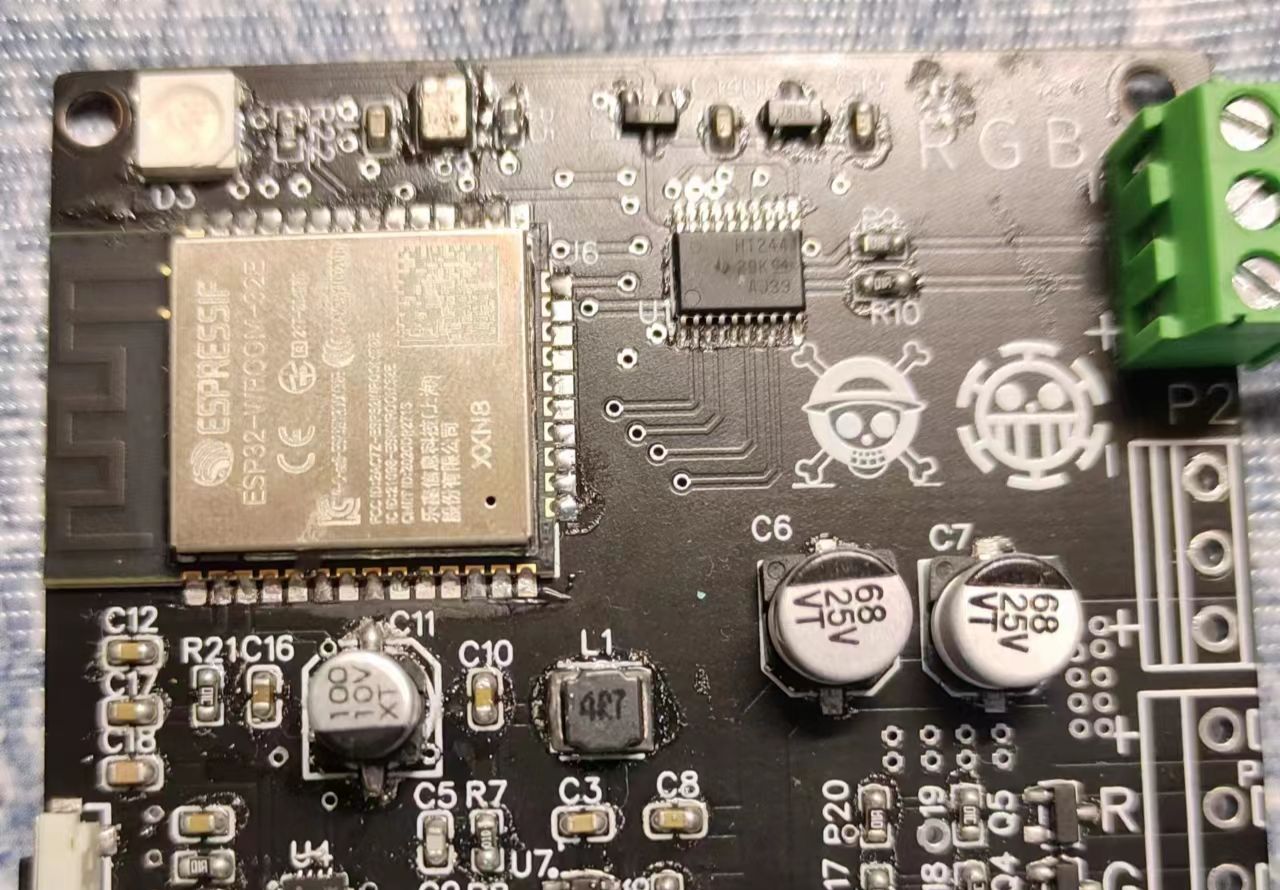

Light strip based on esp32

Overview

1. The light strip control board supports 5V/12V light strip driving and can be switched through a switch.
2. Equipped with a microphone that can change the status of the light strip according to the changes in surrounding sounds.
3. It has strong load capacity, can drive multiple light strips at the same time, and can drive a large number of strips.
4. Various driving methods, covering almost all light strips on the market.
5. The hack lab boss is equipped with control pages for computers and mobile phones. You can connect the computer and mobile phones to control the status of the light strip.
6. As long as the ch340 driver is installed, the program can be downloaded directly through the web page.
BOM address: HACKLED PRO V1.1 BOM (hacklabs.icu)
Program download address: Firmware installation (hacklabs.icu)
Computer control page: After connecting to the wifi signal, enter 4.3.2.1. in the browser.
Note: The original author of this project is HACK Laboratory. For more detailed information, you can search the WeChat public account and station b. The original author drew it in kicad. This pcb and schematic diagram were modified and reproduced based on it.
