High voltage arc generator

Overview

Taobao buys the entire high-voltage package for eight yuan, a wolf-proof artifact, a must-have for girls.
High voltage is dangerous. Although the current is very small, never use
this high voltage package on people. The voltage can reach 1000KV, and the arc can reach two centimeters, but it cannot be used for ignition. It is best not to discharge continuously for more than 5 seconds, as it will burn.

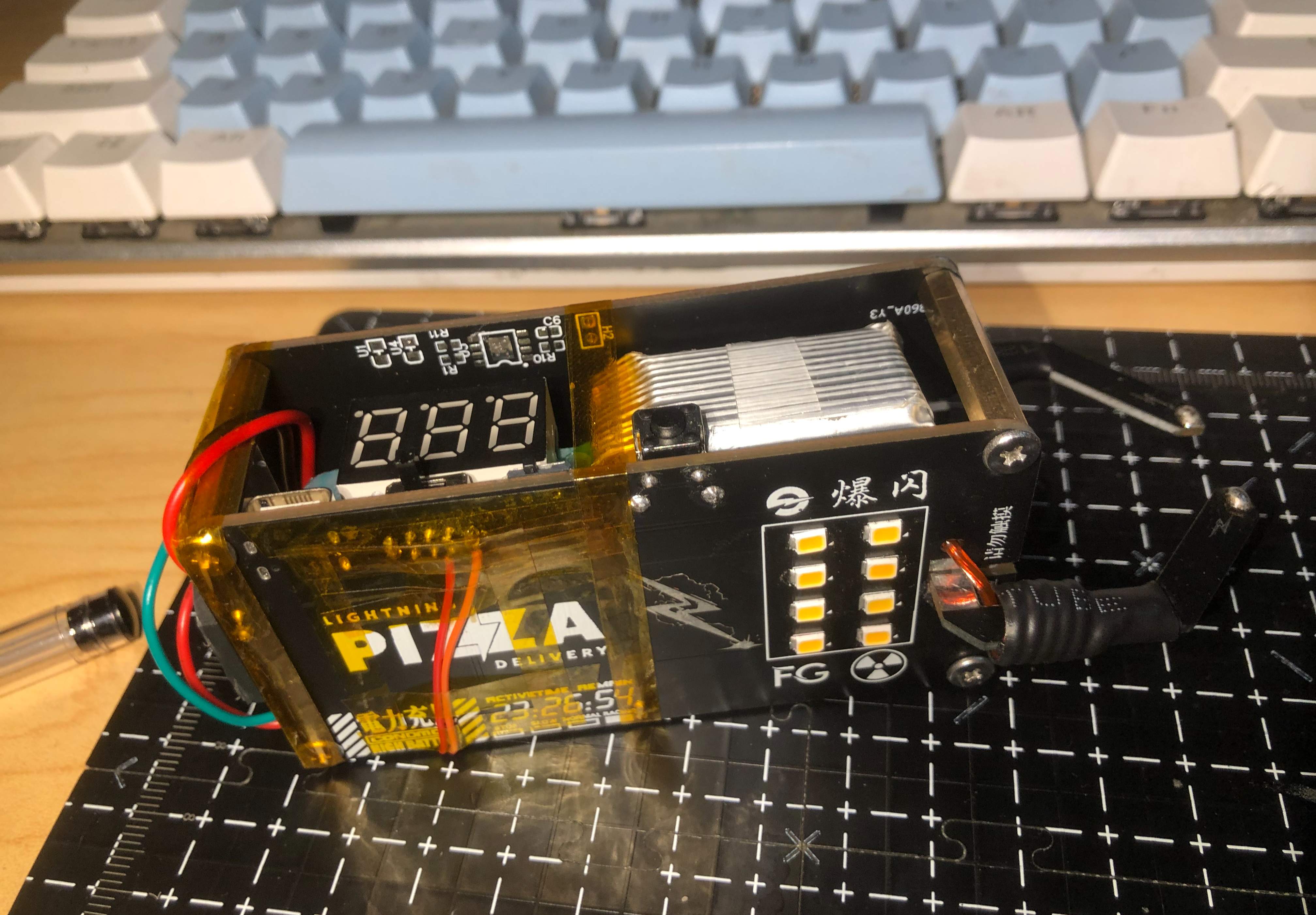

With the addition of TP4056 charge and discharge management, advanced type-c charging
and eight 3W high-brightness lamp beads, it can really be used as a flashlight.
