#The 7th Lichuang Electric Competition#usb-ammeter

Overview

Note: * is a required field,
please fill it in during the registration stage↓

* 1. Project function introduction
4.75--25V; 0-5A can be measured

* 2. Project attributes
LiChuang training camp

* 3. Open source agreement,

please fill it in during the competition stage↓

*4. Hardware part
PCB uses Jia LiChuang EDA to design

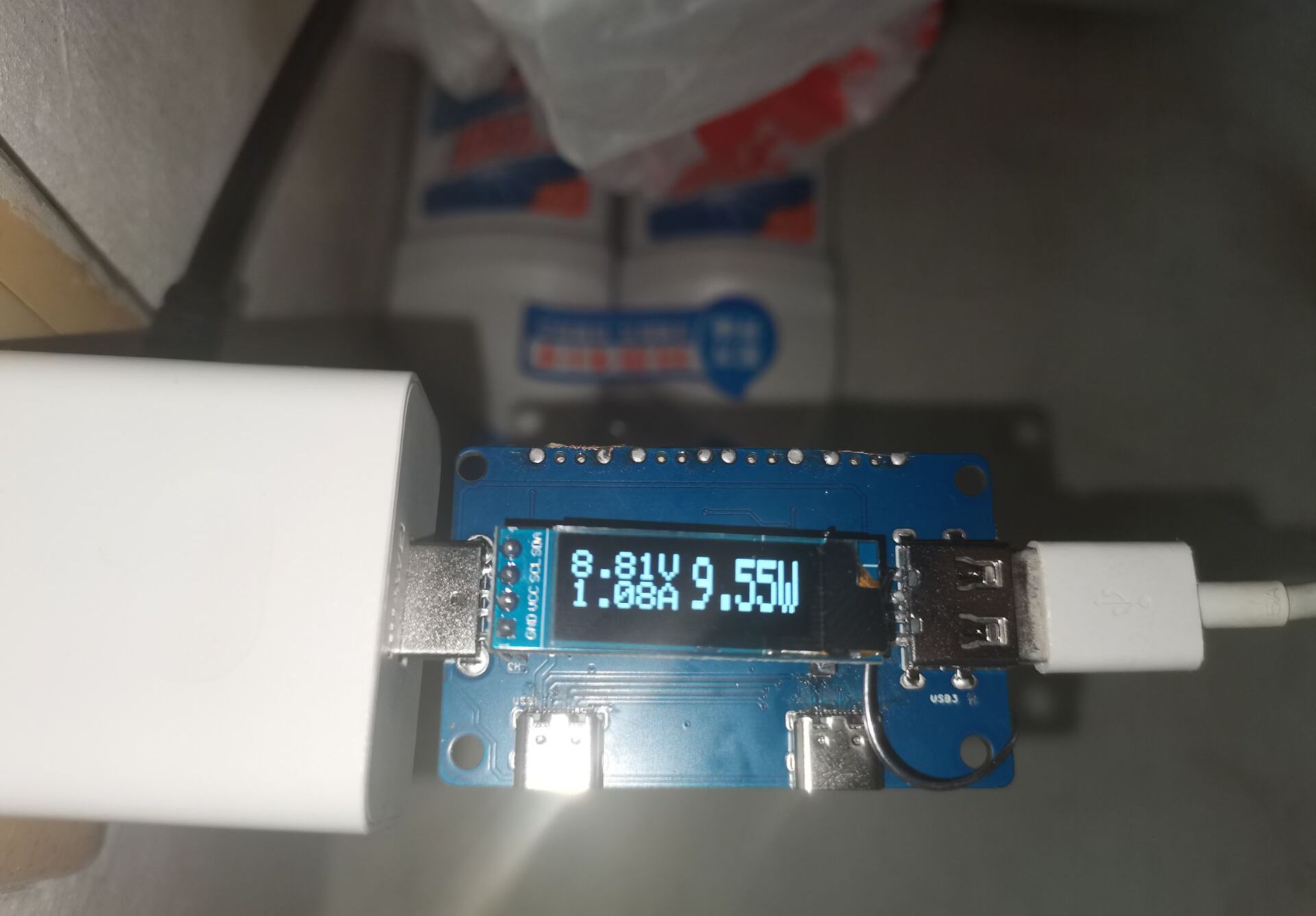

the current sampling using TI's INA199 current sensor amplifier, the sampling method is low-side sampling
The voltage sampling part consists of a series voltage divider circuit composed of two resistors
. 4 buttons are reserved for later expansion. The three-channel sampling voltage can sample D+D- and input voltage respectively

*5. Software part

*6. BOM list

*7. Competition LOGO verification

* 8. Demonstrate your project and record it into a video and upload

it for more details: https://diy.szlcsc.com/posts/d76d9cb41705430e9a54e7a5feed07a5
