MAXREFDES163#: Industrial Magnetic Sensor

Overview

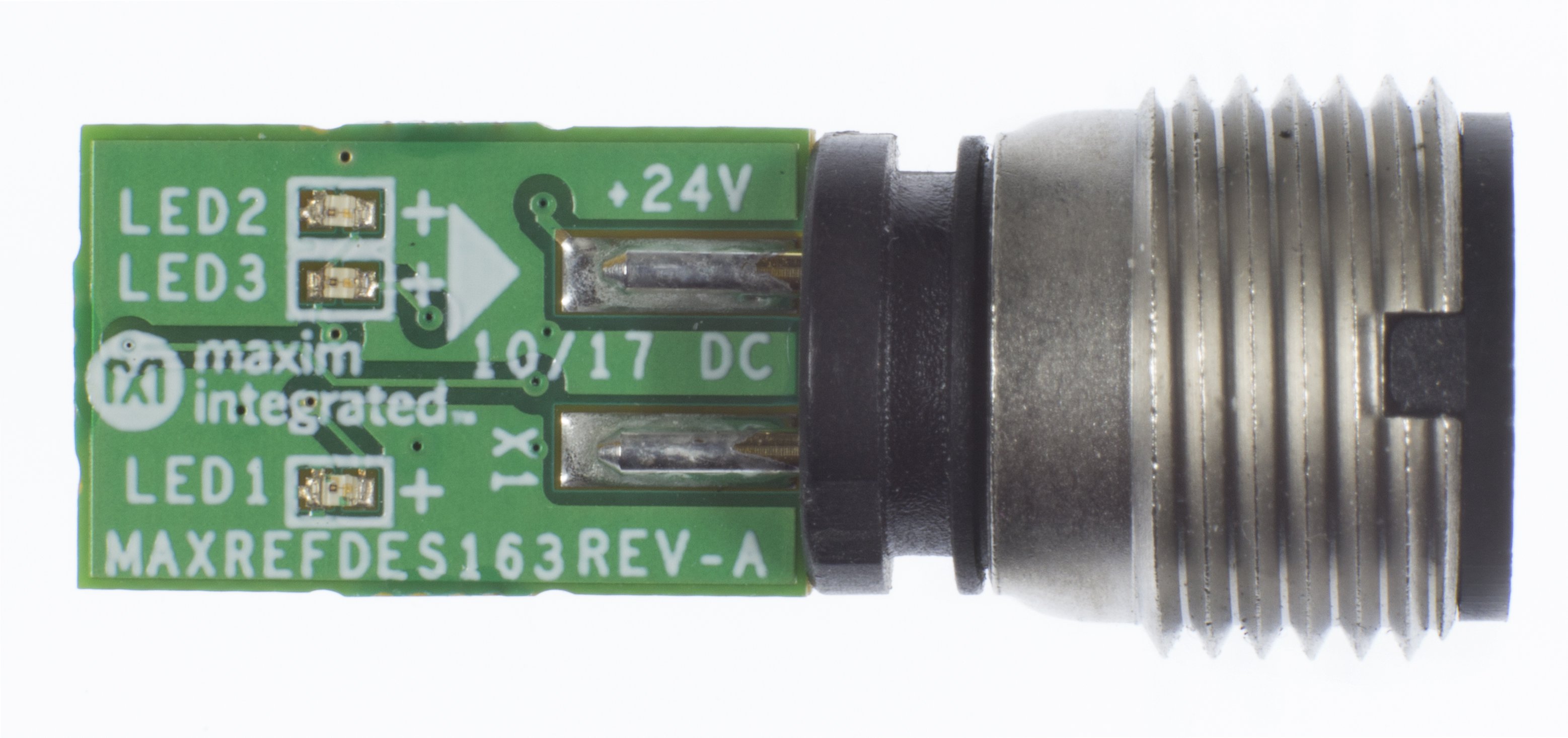

The MAXREFDES163# is one of the world’s smallest industrial magnetic sensor solutions that uses a RedRock™ RR120 TMR integrated digital magnetic sensor and the MAX14839, an industrial sensor output.

The reference design PCB dimension is just 15mm long x 10mm wide, with the width determined by the size of the M12 connector.

Design files can be found on the Design Resources tab. The board is also available for purchase.

Features

Tiny Form-Factor, M12 Connector
Integrated Protection Provides Robust Sensor Solution

Reverse-Polarity Protection on DO, V_CC, and GND
V_CC Hot-Plug Protection
Thermal Shutdown Protection
±1kV/500Ω IEC 61000-4-5 Surge Protection
±8kV IEC 61000-4-2 Air Gap ESD Protection
±6kV IEC 61000-4-2 Contact ESD Protection

Applications

Industrial Binary Sensors
Proximity Switches
Magnetic Sensors
