MAXREFDES130#: Building Automation

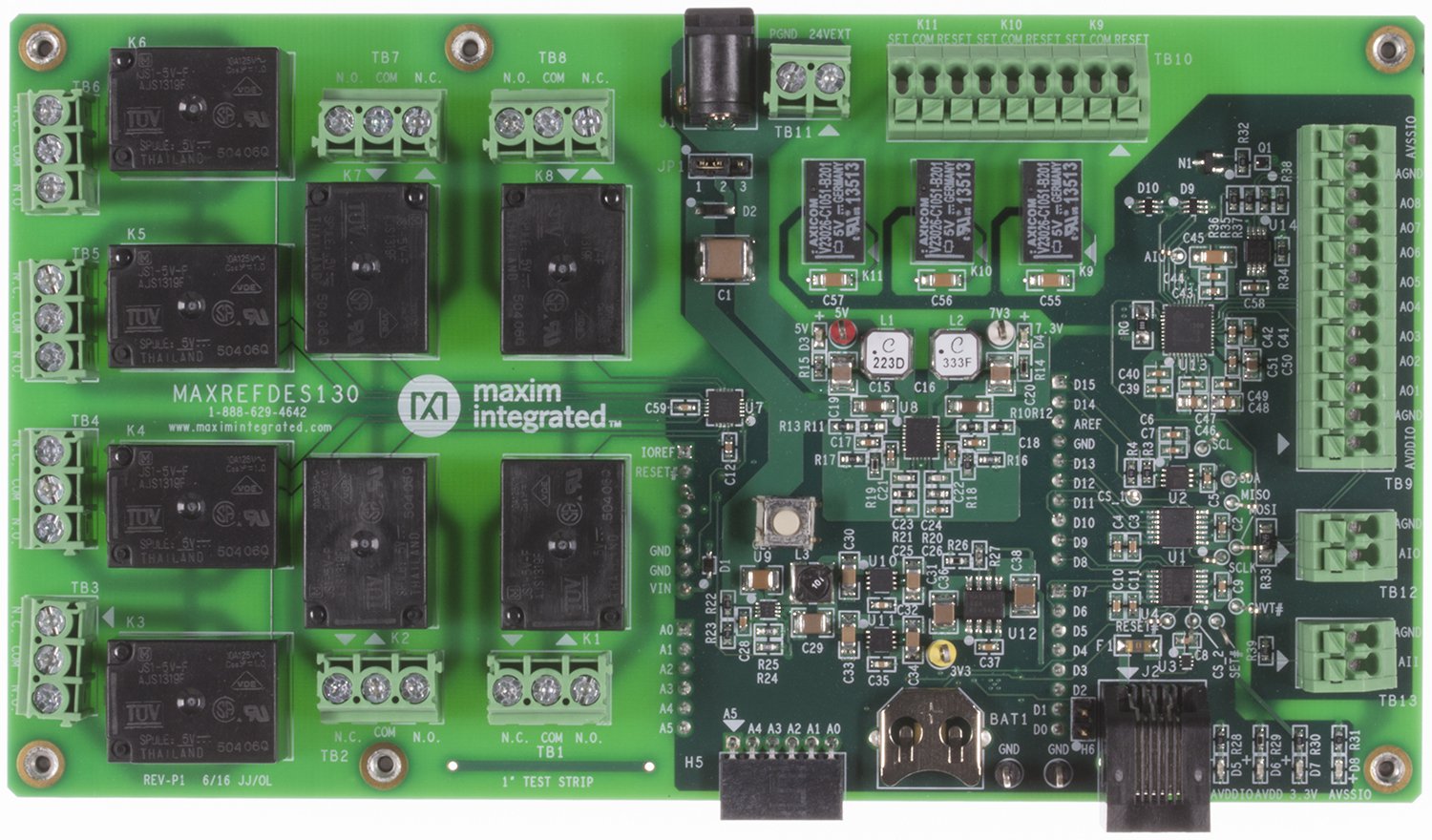

MAXREFDES130# is an Arduino^® form-factor shield compatible with ARM^® mbed™ and Arduino platforms providing a complete reference for prototyping your next building automation design. This design includes eight 0VDC-10VDC analog outputs, one 4-20mA output, one 4-20mA input, eight nonlatching relays, three latching relays, an RTC, and 1-Wire^® master. The MAXREFDES130# works well with one or more of the MAXREFDES131#, the 1-Wire^®, Grid EYE^® sensor, to make a complete building automation solution.

Refer to the Details tab for more information. Design files and firmware can be downloaded from the Design Resources tab. As with all Maxim reference designs, boards are available for purchase.

Features

• Analog IO
  • Eight OVDC-10VDC outputs
  • One 4-20mA Output
  • One 4-20mA Input
• Arduino compatible
• ARM mbed compatible
• AC load switching
• Latching relays for thermostat control
• RTC

Competitive Advantages

• Accelerated development time
• Flexible analog for multiple configurations
• Ease of use

Applications

• Building automation
• IoT
• Animatronics
• Holiday displays
