STM32F030C8T6 minimum system board and running lights

Overview

[STM32](https://blog.zeruns.tech/tag/stm32/)F030C8T6 minimum system board and running water lamp.

[Embedded](https://blog.zeruns.tech/tag/embedded/) class design, to make a running water lamp, I drew a minimum system board, open source, please give me some advice, where to optimize and improve.

The WS2812 RGB lamp uses the wrong pin, so it can't be controlled by PWM. I didn't consider it when drawing, you can change the IO pins yourself if you need to use it.

I drew a minimum system board for MSP430F149 and made it open source: [https://blog.zeruns.tech/archives/713.html](https://blog.zeruns.tech/archives/713.html)

## Effect picture
![1684339351837.gif]

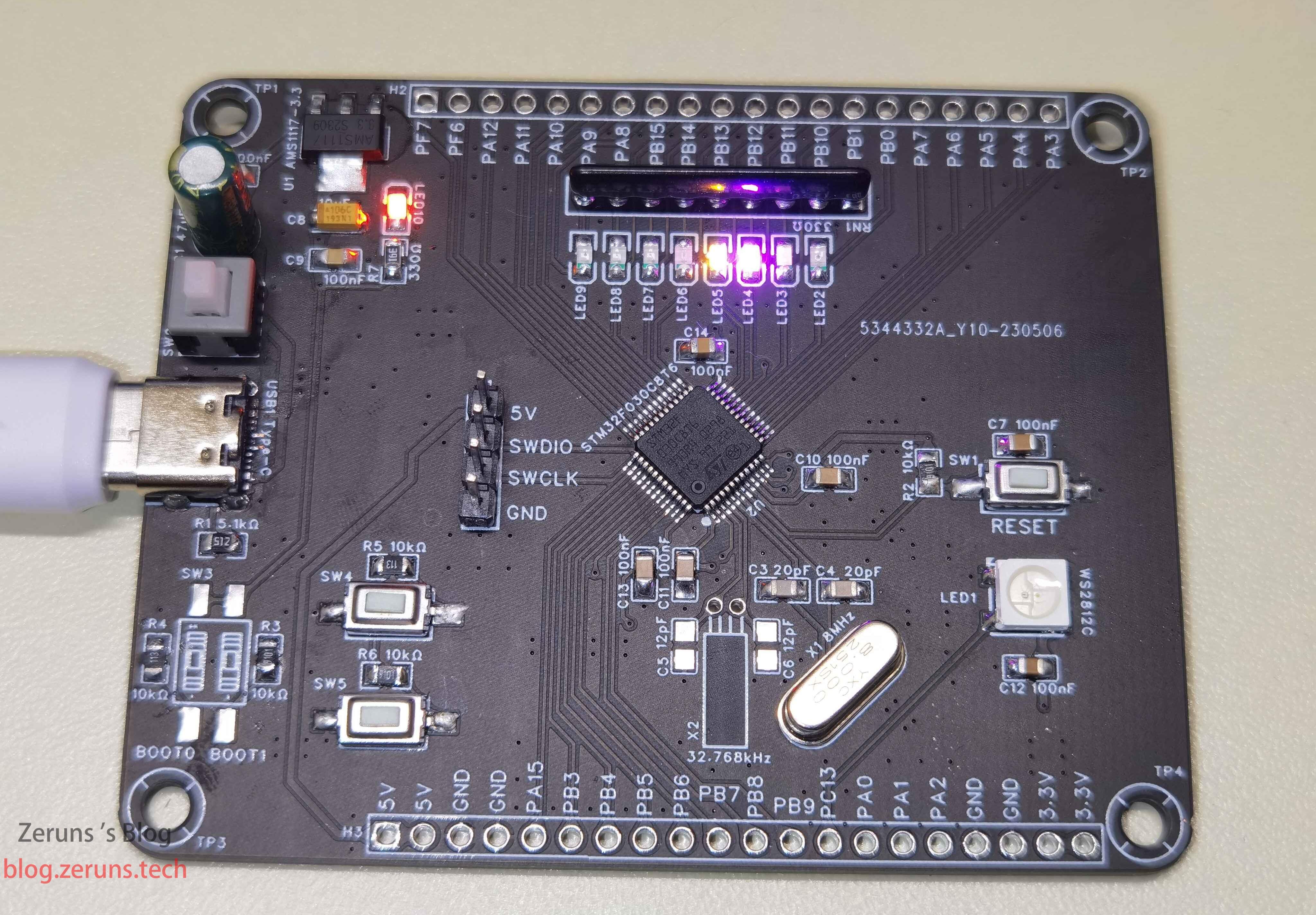

![IMG_20230518_130158(1).jpg]

## Resource download

example download address: [https://blog.zeruns.tech/archives/715.html](https://blog.zeruns.tech/archives/715.html)

PCB board file (Gerber) download: [https://pan.baidu.com/s/1KVE2wBR3KYPoqVpxH1r4lA?pwd=hyk4](https://url.zeruns.tech/1M8SA) Extraction code: hyk4

## CubeMX configuration diagram

![2023-05-18_13-04-04.png]
