CH455H_Nigital tube display module

Overview

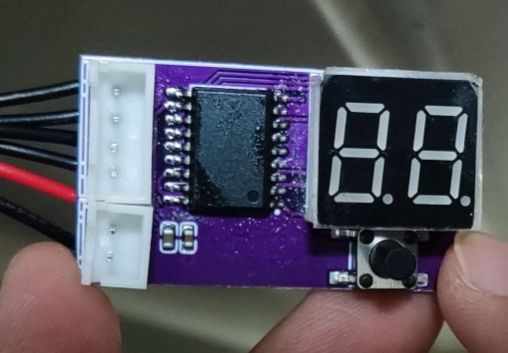

The digital tube driver module based on CH455H integrates a micro switch and uses 3.3V power supply.
When the micro switch is pressed, the btn pin outputs low level.
Please refer to the PCB document silk screen for pin definitions.
