High Voltage Battery Junction Box Reference Design

Overview

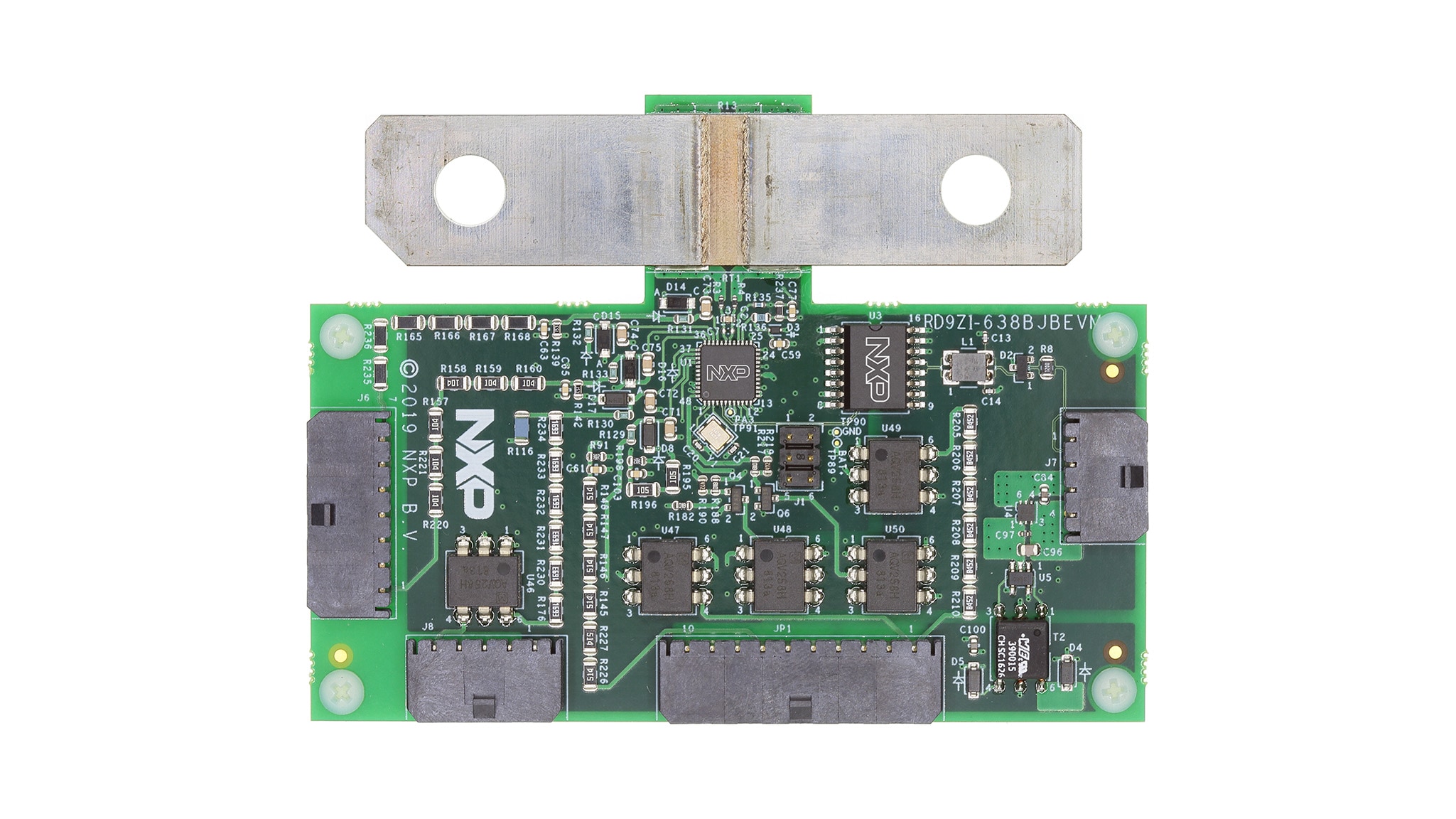

The RD9Z1-638BJBEVM is a hardware tool for evaluation and development, ideal for rapid prototyping of high-voltage battery junction boxes (HV-BJBs) in electric vehicles. This board evaluates the functionality of the RD9Z1-638BJBEVM device and allows the user to connect to a power distribution unit (PDU) for voltage, current, temperature sensing and contactor status diagnostics. The RD9Z1-638BJBEVM reference design can help accelerate your project development. It is a flexible, independent function board with high integration, smaller size, and compatibility with electric vehicles and electric buses.

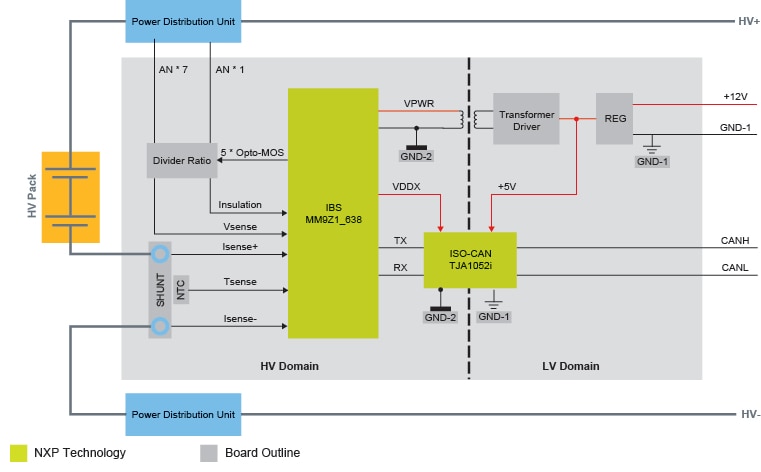

Blockdiagram

Design Files

Documentation
