DER-712 - 60 W ultra-wide input range adapter using InnoSwitch3-EP PowiGaN and MinE-CAP

DER-712 - 60 W Ultra-Wide Input Range Adapter using InnoSwitch3-EP PowiGaN and MinE-CAP

Overview

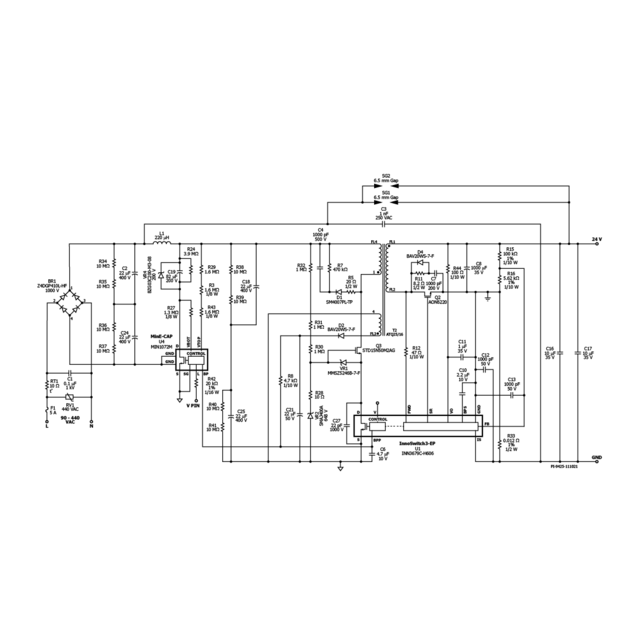

60 W Isolated Flyback Adapter with StackFET™ for the highest possible power density and design simplicity using MinE-CAP IC PowiGaN-based InnoSwitch3-EP Offline Flyback Switch IC (INN3679C-H606) MinE-CAP Large Capacitor miniaturization IC (MIN1072M) Input: 90 - 440 VAC Output: 24V, 2.5A60 W isolated flyback adapter with StackFET™ using MinE-CAP ICs to achieve the highest possible power density and design simplicityPowiGaN-based InnoSwitch3-EP offline flyback switcher IC (INN3679C-H606)MinE-CAP bulk capacitor miniaturization IC (MIN1072M)Input: 90 - 440 VACOutput: 24 V, 2.5 A
