RDR-813 - 27 W USB PD 3.0 with 3.3 V-11 V PPS power supply, using InnoSwitch3-Pro and VIA Labs VP302 controller (single-board design)

RDR-813 - 27 W USB PD 3.0 with 3.3 V-11 V PPS Power Supply Using InnoSwitch3-Pro and VIA Labs VP302 Controller (Single-Board Design)

Overview

27 W USB PD 3.0 with PPS charger (5 V/3 A; 9 V/3 A; 3.3 V-11 V PPS output) using InnoSwitch3-Pro (INN3366C-H301) and VIA Labs VP302 USB PD controller, Single board design 27 W USB PD 3.0 with PPS charger (5 V/3 A; 9 V/3 A; 3.3 V-11 V PPS outputs) using InnoSwitch3-Pro (INN3366C-H301) and VIA Labs VP302 USB PD controller, single -board design

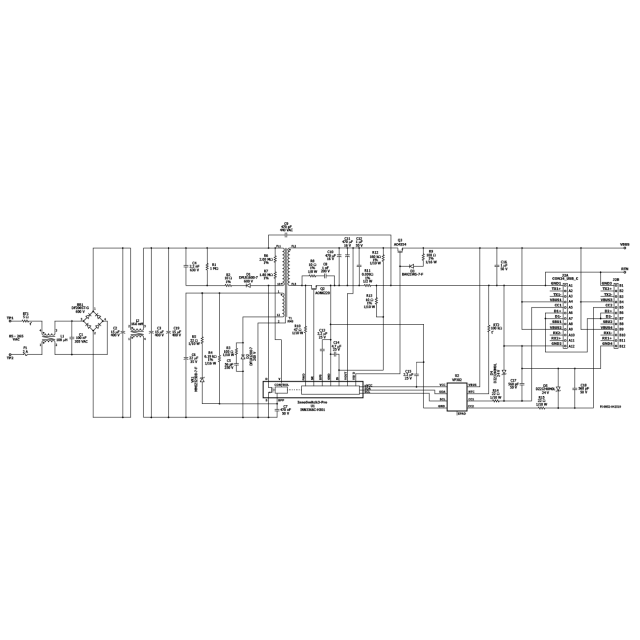

Blockdiagram
