DER-1029 - 50 W DC-DC Converter for Solar Racing Using InnoSwitch3-EP (750 V PowiGaN)

DER-1029 - 50 W DC-DC Converter for Solar Racing Car Using InnoSwitch3-EP (750 V PowiGaN)

Overview

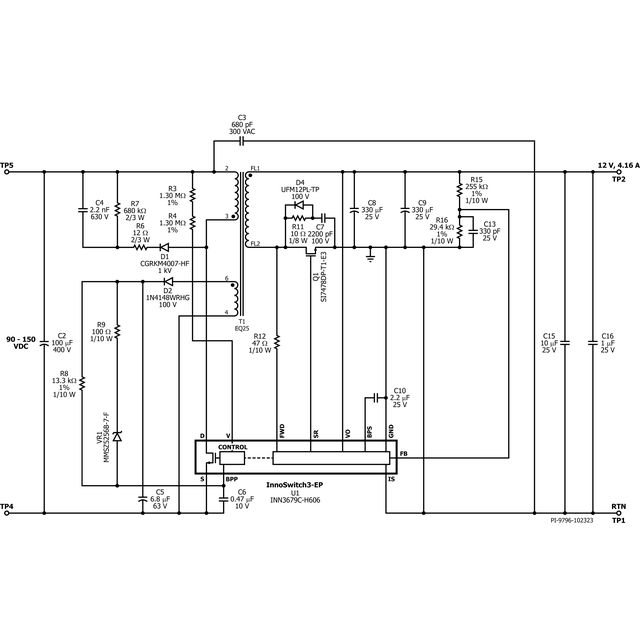

A 50 W flyback converter specially designed for solar racing as its auxiliary power supply, using 750 V PowiGaN-based InnoSwitch3-EP (INN3679C) switching IC Input: 90-150 VDC Output: 12V, 4.16A 30% to 120 VDC Average efficiency of 95.7% at 70% load High efficiency thanks to built-in synchronous rectification Very high full load efficiency 95.22% efficiency at 120 VDC Minimal number of primary inductive overvoltage protection components: 36 components Internal short-circuit protection 50 W flyback convertor tailored for a solar race car as its auxiliary power supply, using 750 V PowiGaN-based InnoSwitch3-EP (INN3679C) switcher ICInput: 90-150 VDCOutput: 12 V, 4.16 AAverage efficiency of 95.7% from 30% to 70% load at 120 VDCBuilt- in synchronous rectification for high efficiencyVery high full-load efficiency95.22% Efficiency at 120 VDCPrimary sensed overvoltage protectionVery low component count: 36 componentsInternal short-circuit protection
