MAXREFDES101#: Health Sensor Platform 2.0

Overview

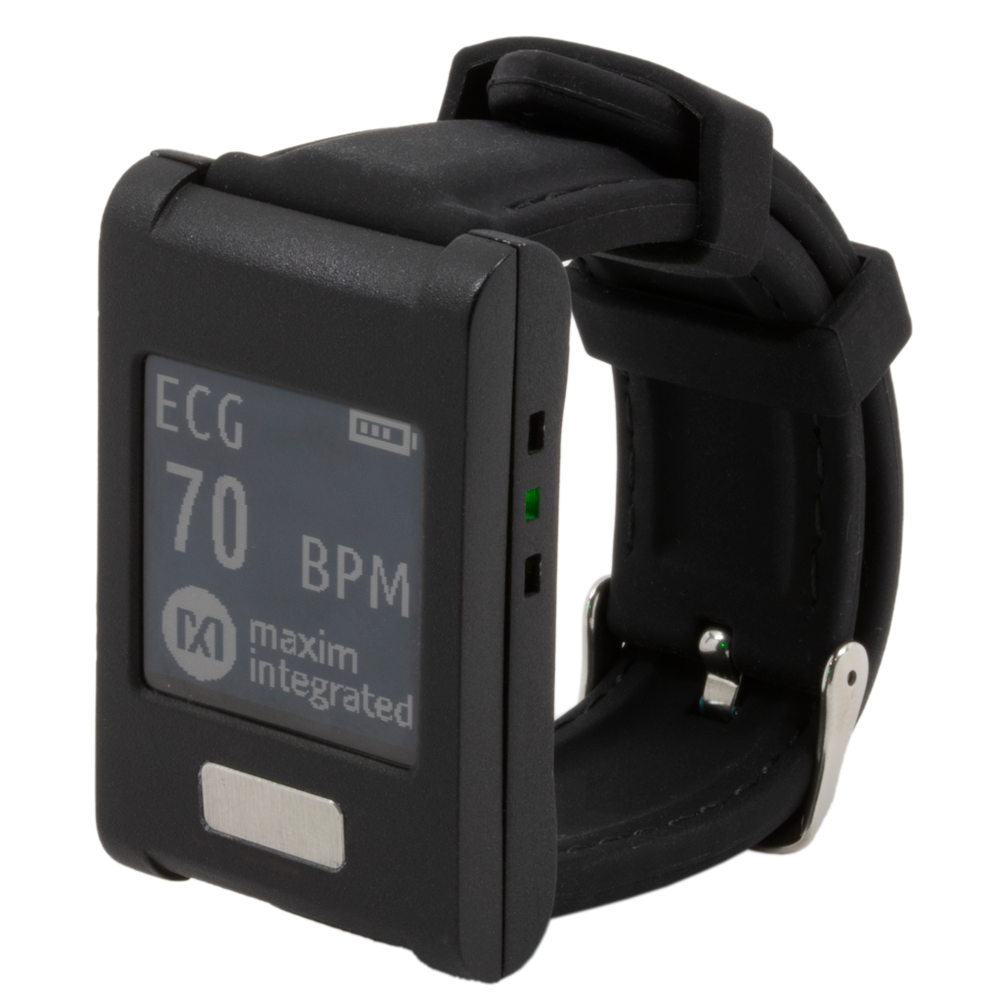

MAXREFDES101# is a unique evaluation and development platform in a wrist-worn format that demonstrates the functionality of various Maxim health testing products. The second-generation health sensor platform ( successor of MAXREFDES100# ) integrates PPG analog front-end (AFE) sensor (MAX86141) , biopotential AFE (MAX30001) , body temperature sensor (MAX30205) , microcontroller (MAX32630) , and power management IC (MAX20303 ) and 6-axis accelerometer/gyroscope. The complete platform includes the watch case and biometric sensor concentrator with embedded heart rate algorithm (MAX32664) . Algorithm output and raw data can be streamed via Bluetooth® to an Android ^®^app or PC GUI for demonstration, evaluation and custom development.

Design files, firmware, and software can be downloaded from the Design Resources tab. Circuit boards are provided for users to purchase.

Key Features

Photoplethysmography (PPG)
Biopotential measurement (ECG)
skin temperature
Embedded heart rate algorithm
movement and rotation
wearable watch form

application

wearable sports watch
health tracker
On-demand ECG monitoring
Heart Signal Data Tracker
