Pui Ching Graffiti Electricity Meter - Three-way

Overview

This project

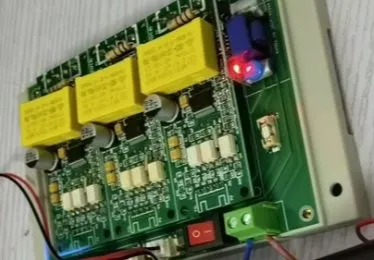

introduces a three-way WiFi power meter built using a 17H65 BLE chip, Tuya WBR3, and Peizheng power module.

Through configuration, it can monitor home electricity usage in real time

and set alarm power levels.

It also monitors three power sources simultaneously. **

Note:** This project involves high-voltage electricity; please exercise caution. The project owner is not responsible for any consequences arising from its use. Open
source link
- Software open source link
. All materials,
code, and project configurations are attached.

Configure the Tuya platform product key in the protocol.h file to use

the Tuya platform. Configure

data points. Configure
Tuya data points.

Configure the Studio panel. Configure

the hardware
casing. **

PS:** Why is it a four-layer board? Because the PCB exceeds 10cm. [dog emoji]
