VL812&VL813_USBHUB

Overview

Video Link:
Bilibili Video -- Function Demonstration and Introduction
Project Overview
This project is a replica of the original Bilibili video above.
Physical Images :
Figure 1: Soldering Completed

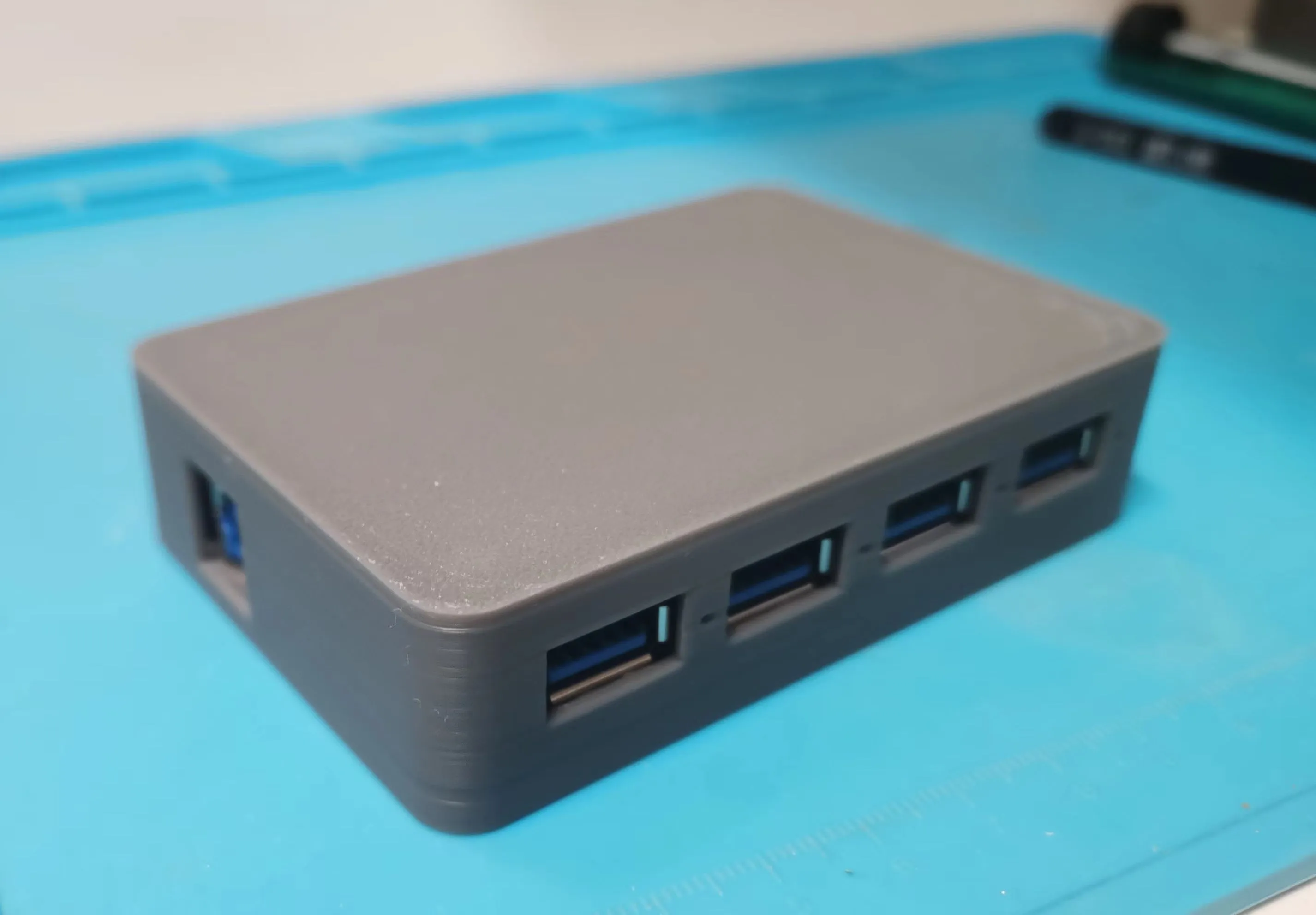

Figure 2: Printed Shell

Figure 3: Assembly

Figure 4: Hole Alignment Perfect

Figure 5: Read/Write Speed is also Acceptable

Overall, it's a successful replica.
Notes :
1. I used that large inductor for the 1.2V section because I happened to have it, so I used that package. Replicas don't necessarily need to use the same one.
I didn't use Type-C because I'm too inexperienced to solder a 24-pin connector (sad).
