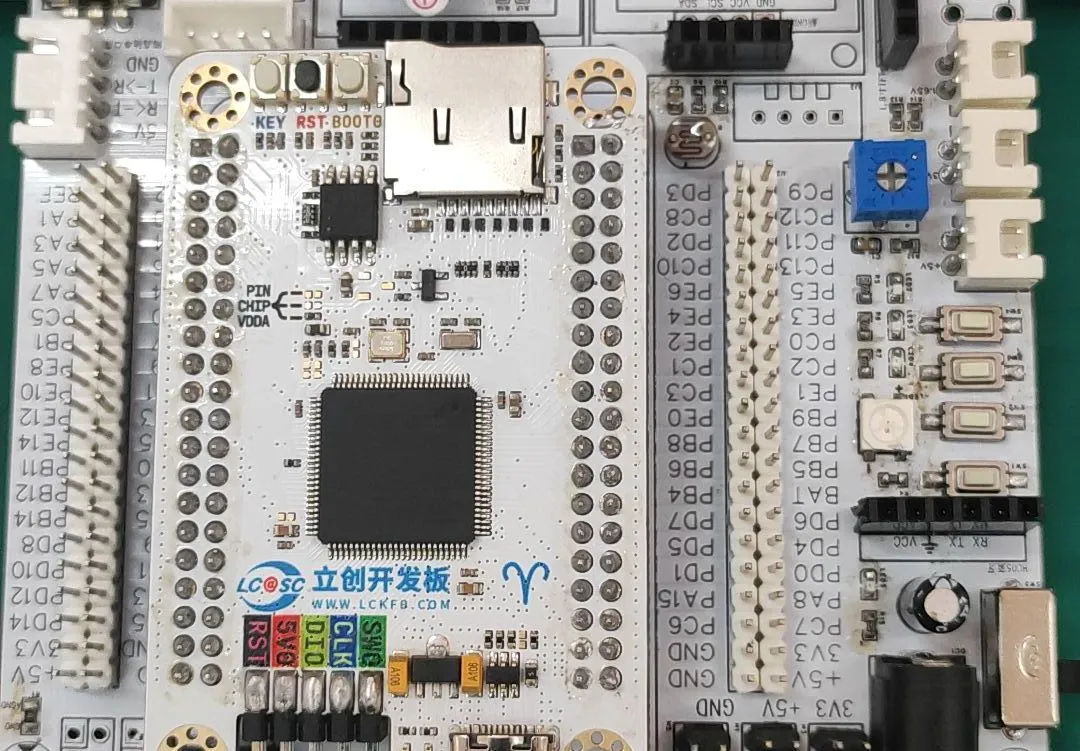

F407VET6 Expansion Board

Overview

This specification

supports STM32F407VET6, STM32F407VGT6, and GD32F407VET6
. It offers rich peripheral interfaces including motor drive modules, buzzers, servos, rotary encoders, and temperature and humidity sensors
. Multiple communication interfaces are available, such as USART, SPI, and I2C
. Expansion pins include GPIO and ADC interfaces
. Onboard power management includes power indicator lights and a power switch.
All pins are brought out via headers.

Important notes:

Ensure secure and reliable soldering.
Before powering on, check for cold solder joints and ensure the power supply voltage meets requirements.
Follow the STM32 programming and debugging guidelines.
