STM32F103C8T6 expansion board

Overview

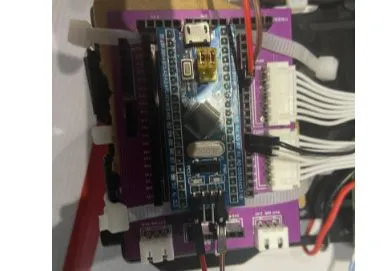

This is an expansion board for the STM32F1C8T6, including the following expansion resources: STM32F1C8T6 expansion pins, OLED expansion pins, two-way tracking expansion pins, five-way tracking expansion pins, 3.3V, 5V, and GND expansion pins, TB6612 motor expansion pins (we use the TB6612 voltage regulator chip from Lunqu, which can be directly plugged in with a clip), Bluetooth module expansion pins, and OpenMV expansion pins.
