MSPM0G3507 Development Board

Overview

Note: This is a KiCAD project!

Features

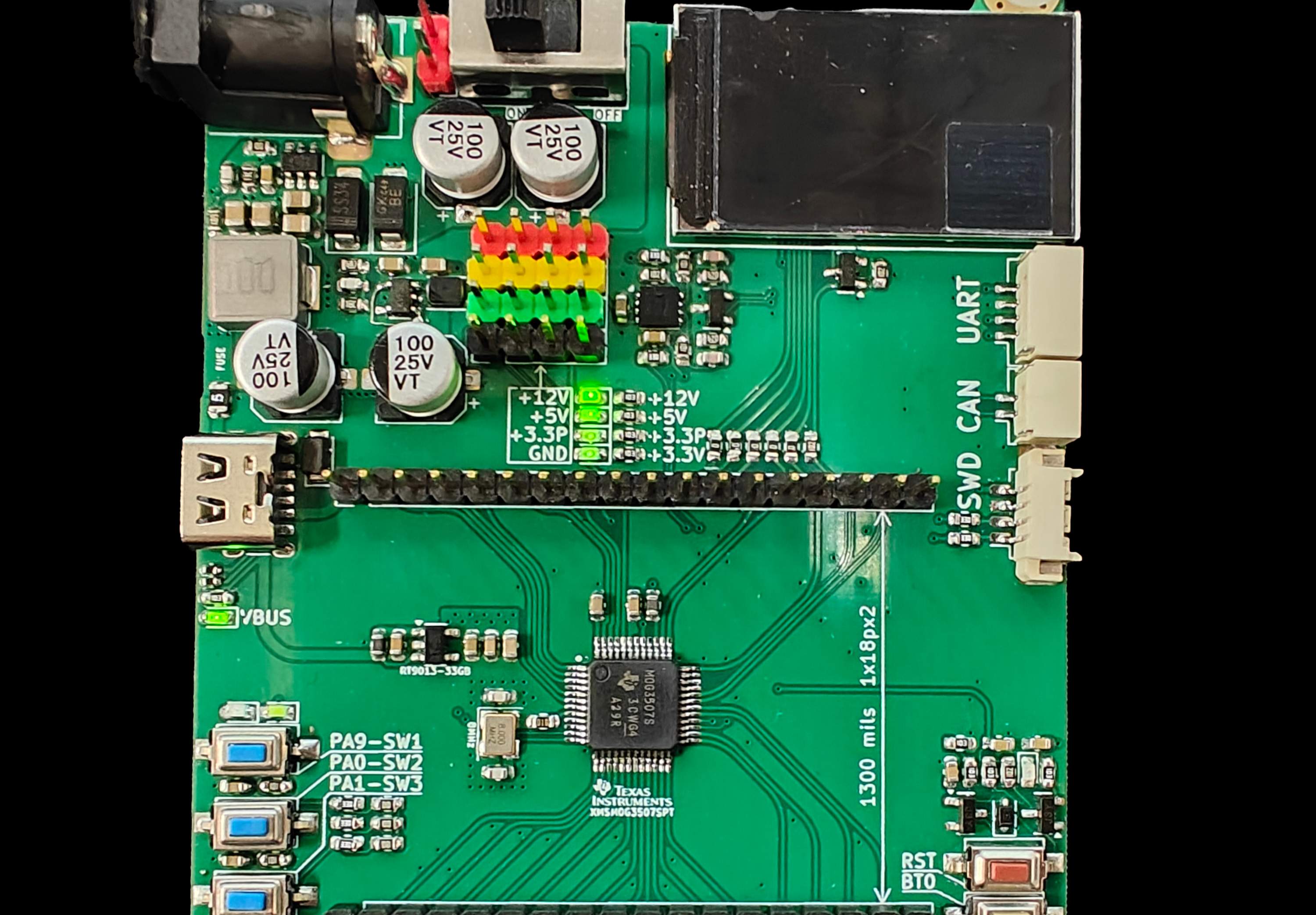

include: onboard 135*240 LCD screen,
DC power interface,
main power switch
, 12V, 5V, 3.3V power header,
TYPE-C power supply interface
, CAN-FD interface (unverified),
three user buttons
, two onboard LEDs
, reset button, BSL button
, serial port (GH1.25 4P), and SWD interface (MX1.25 4P).

Supports

3S lithium battery power supply,
12V and 5V power supply, TVS protection,
onboard peripherals can be enabled via resistor,
one-button access to BSL
, CAN interface, TVS protection,
TYPE-C interface, 500mA fuse protection,
and chip pin header spacing in multiples of 100mil for easy perforated board insertion.

Video demonstration
: https://www.bilibili.com/video/BV1tr42137Vm/
Example code
: https://github.com/Alipay1/mspm0g3507_dev_board_example

Design Files
