TC3608H Minimalist Size Boost Module

Overview

Design Description:
This project presents a minimalist PCB design for a chip with the silkscreen marking B628. The cost is also quite reasonable, generally not exceeding 0.8 RMB per piece.

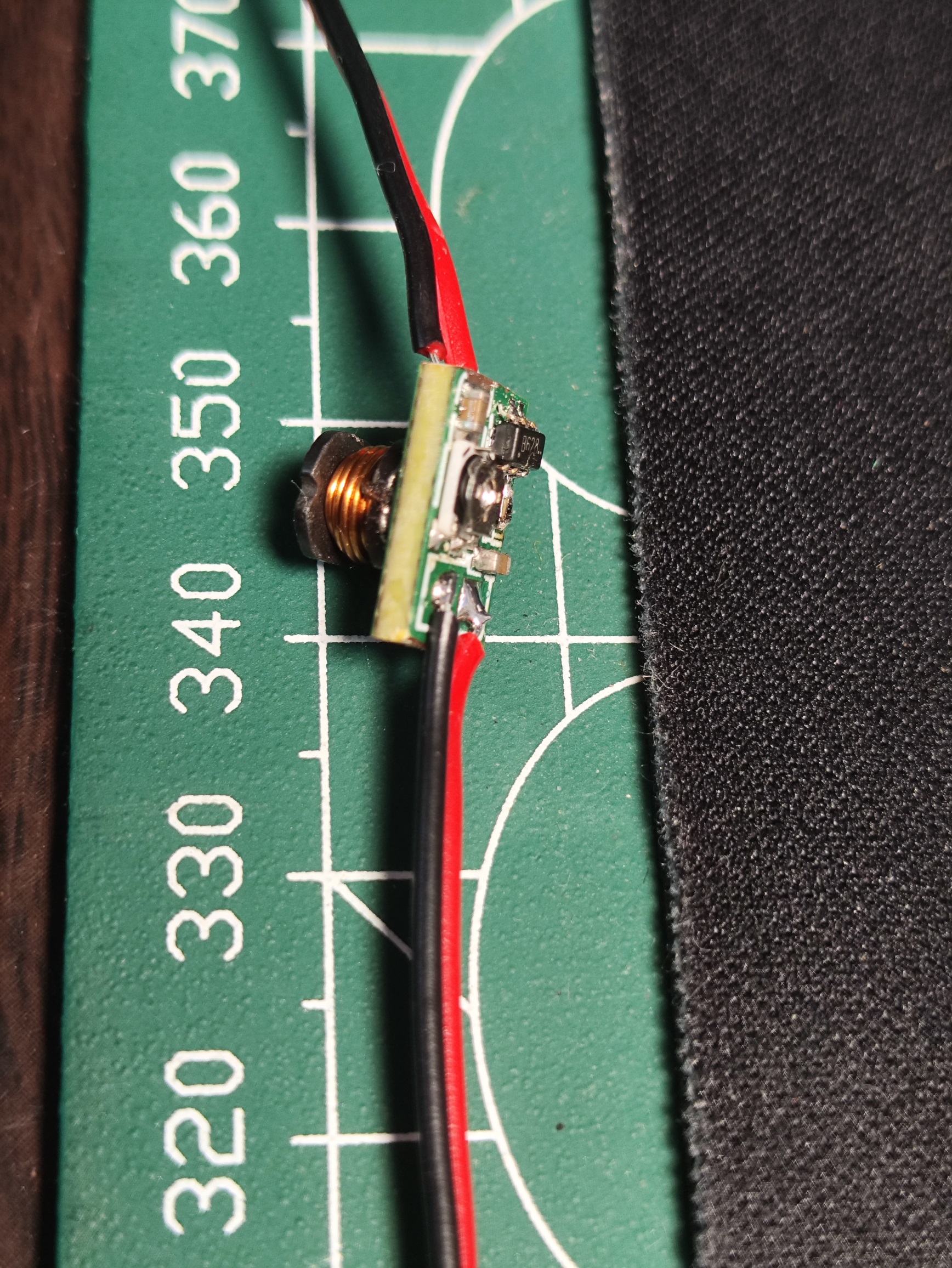

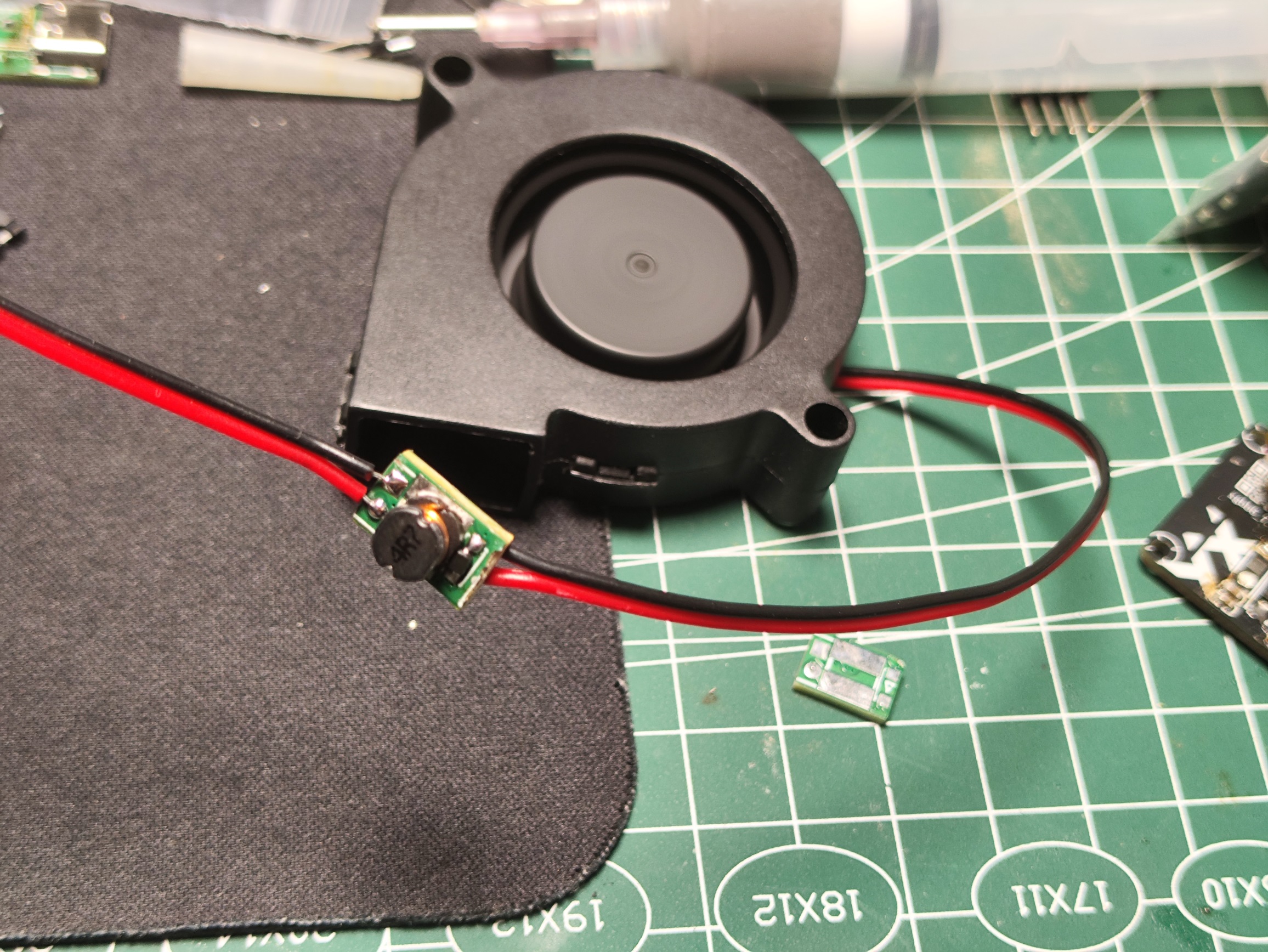

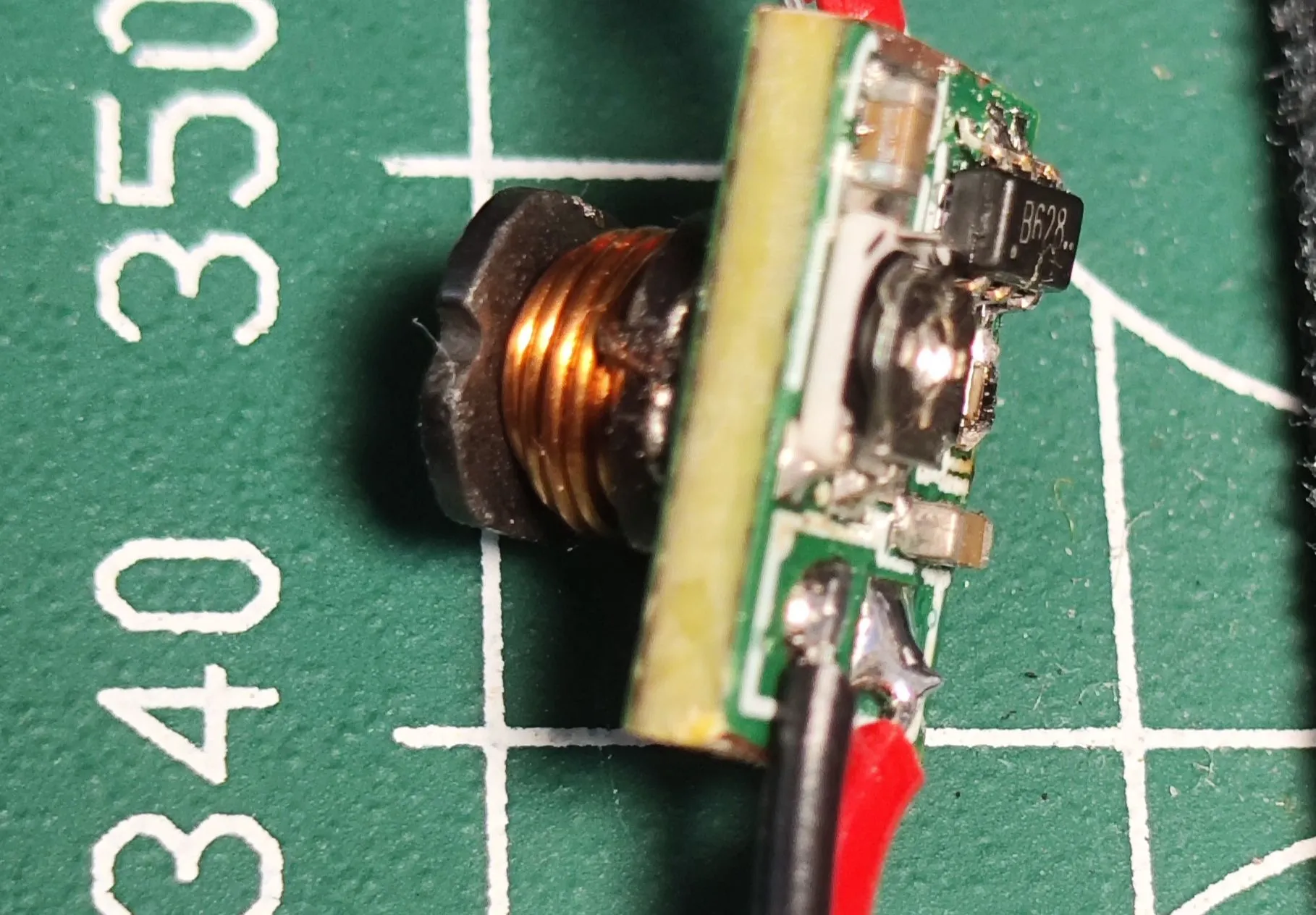

Physical Sample Display.

Important Notes:
The output capacitors used should not have a voltage rating lower than the output voltage.
The PCB consists of four connected pieces; if needed, simply cut them with pliers.
