24V Solenoid Valve Driver Board

Overview

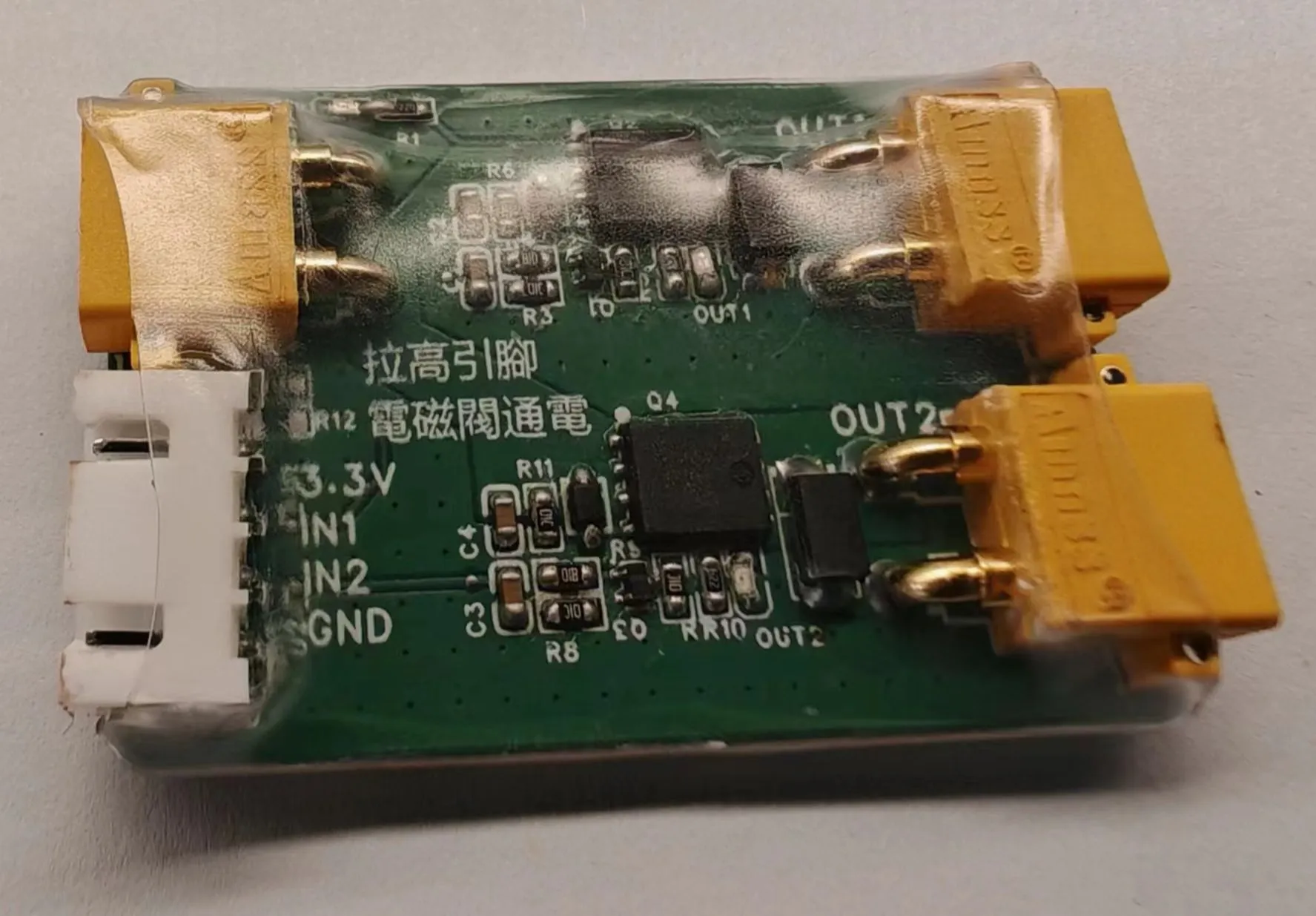

One XT30 is used as the input, and two XT30s are used as the outputs. The XH2.54 interface is used for signal control; pulling the corresponding pin high energizes the corresponding solenoid valve. It is recommended to use this system with the [verified] ROBOCON2024 vehicle circuit topology - LCSC open-source hardware platform (oshwhub.com), using the 4-pin reverse connector of the XH2.54 to connect the PWM interface and the signal input port.
