5YIDX

USB 2.0 expansion dock

Overview

This is a 1-to-4 USB 2.0 expansion dock
with the SL2.1A main control chip. It uses Type-C for data input, supports four outputs, and has overcurrent protection.
The top is made of acrylic, allowing you to see the internal components and color silkscreen printing.
It is small in size and has been tested for stable performance.
Photos of
the acrylic top cover and printed support are in the compressed file.

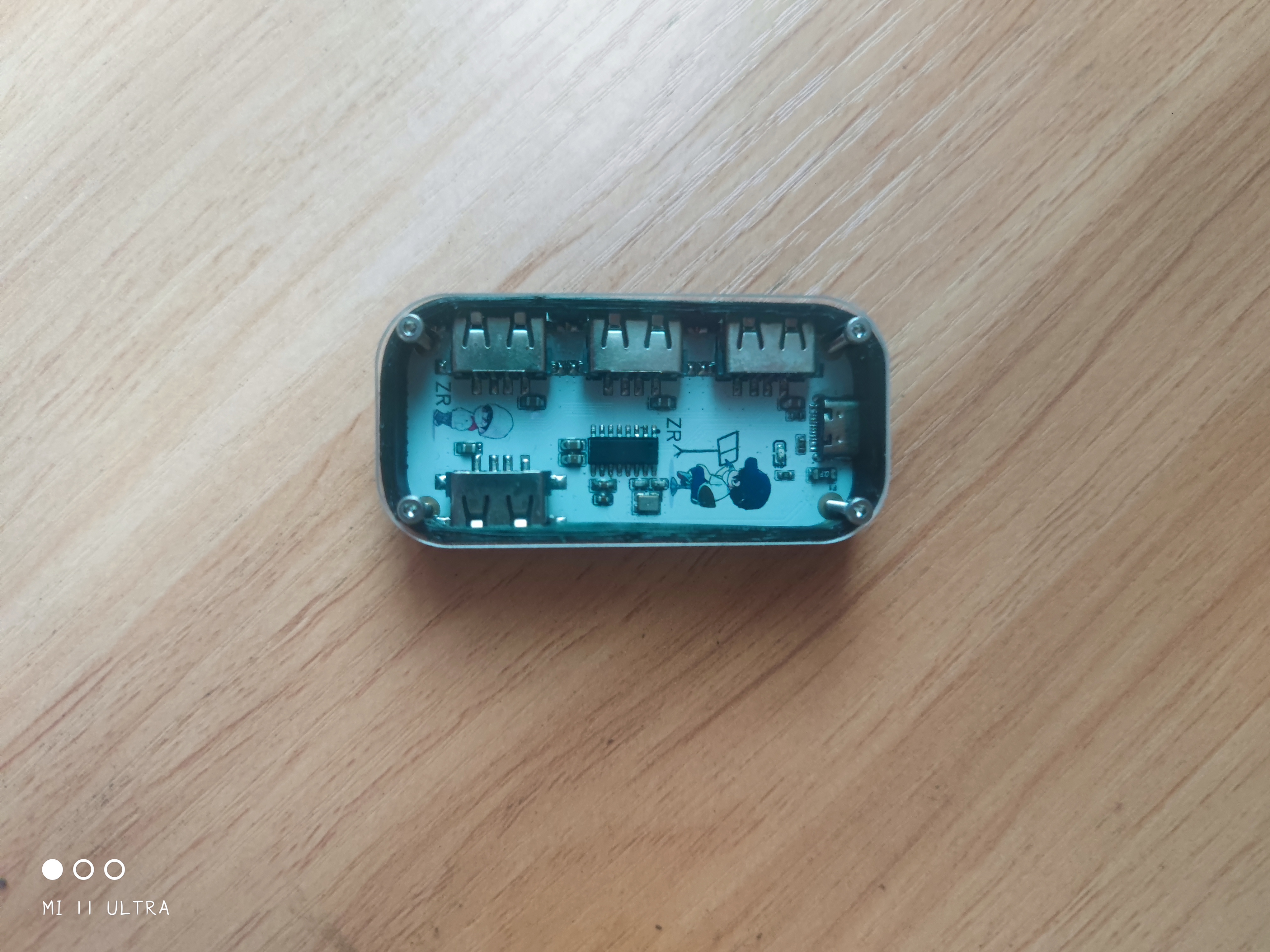

[Image 1]

[Image 2]

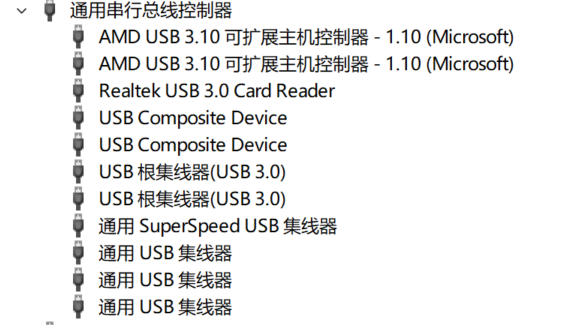

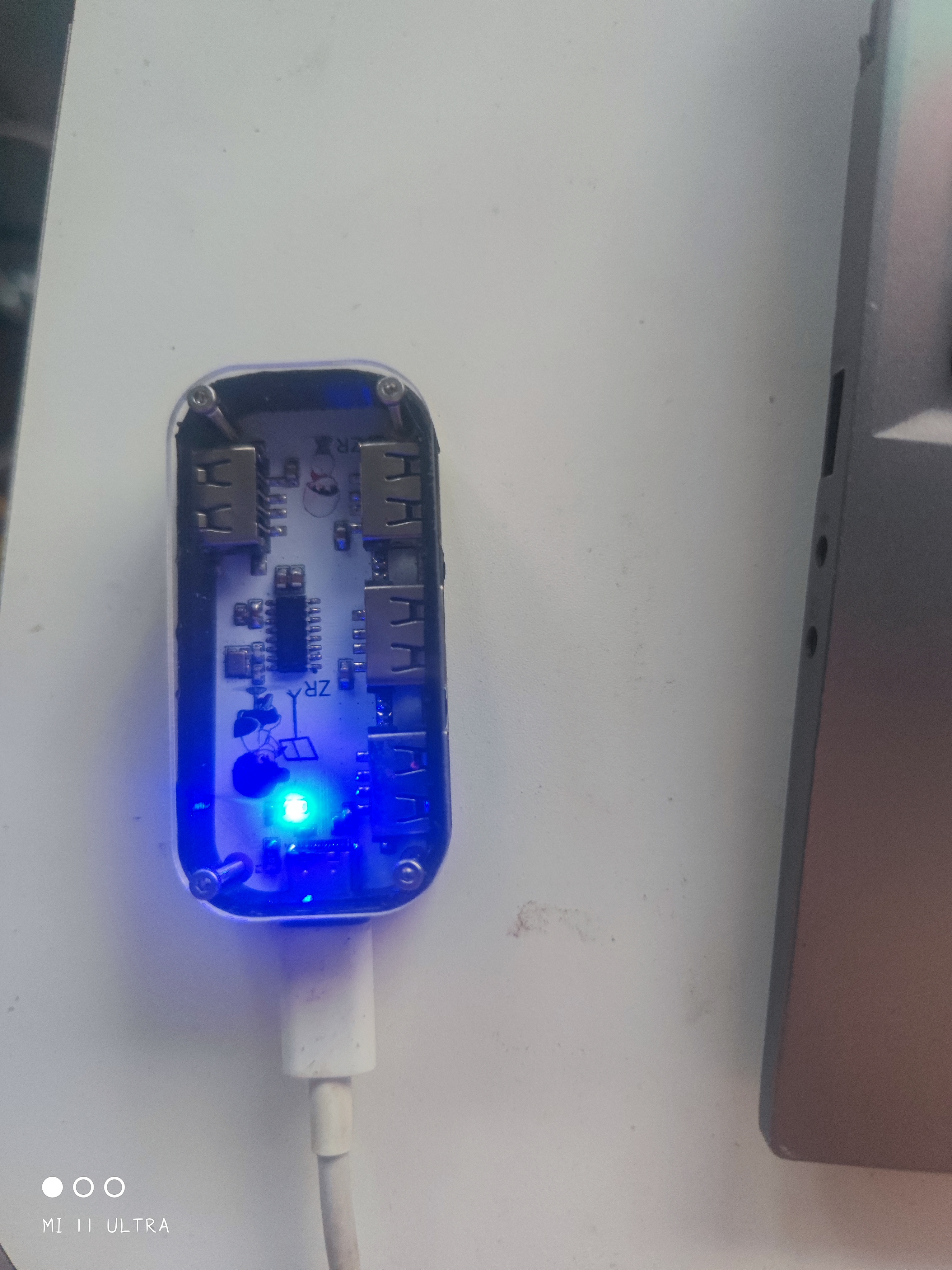

After connection, a blue light illuminates, and a universal USB hub appears in Device Manager, indicating successful connection.

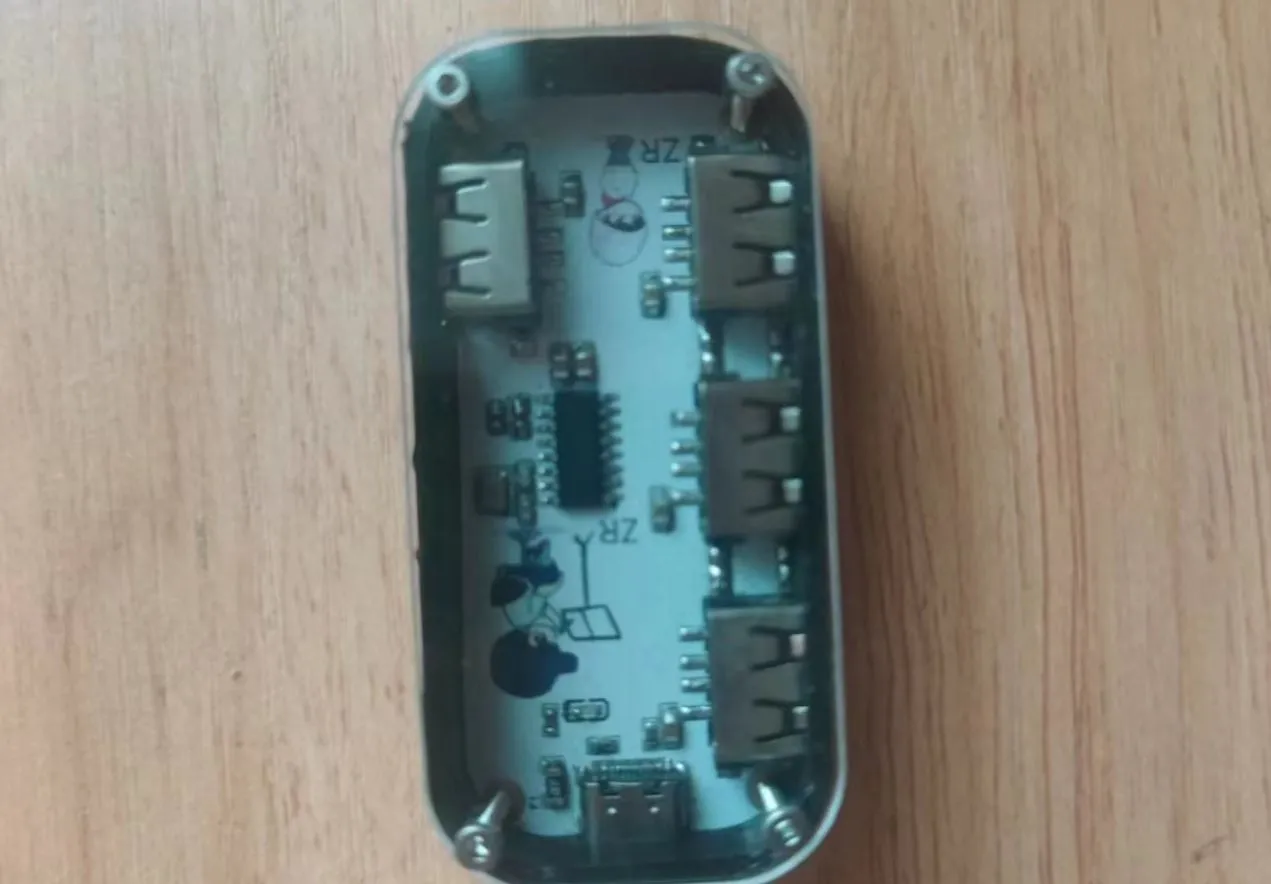

[Image 3]

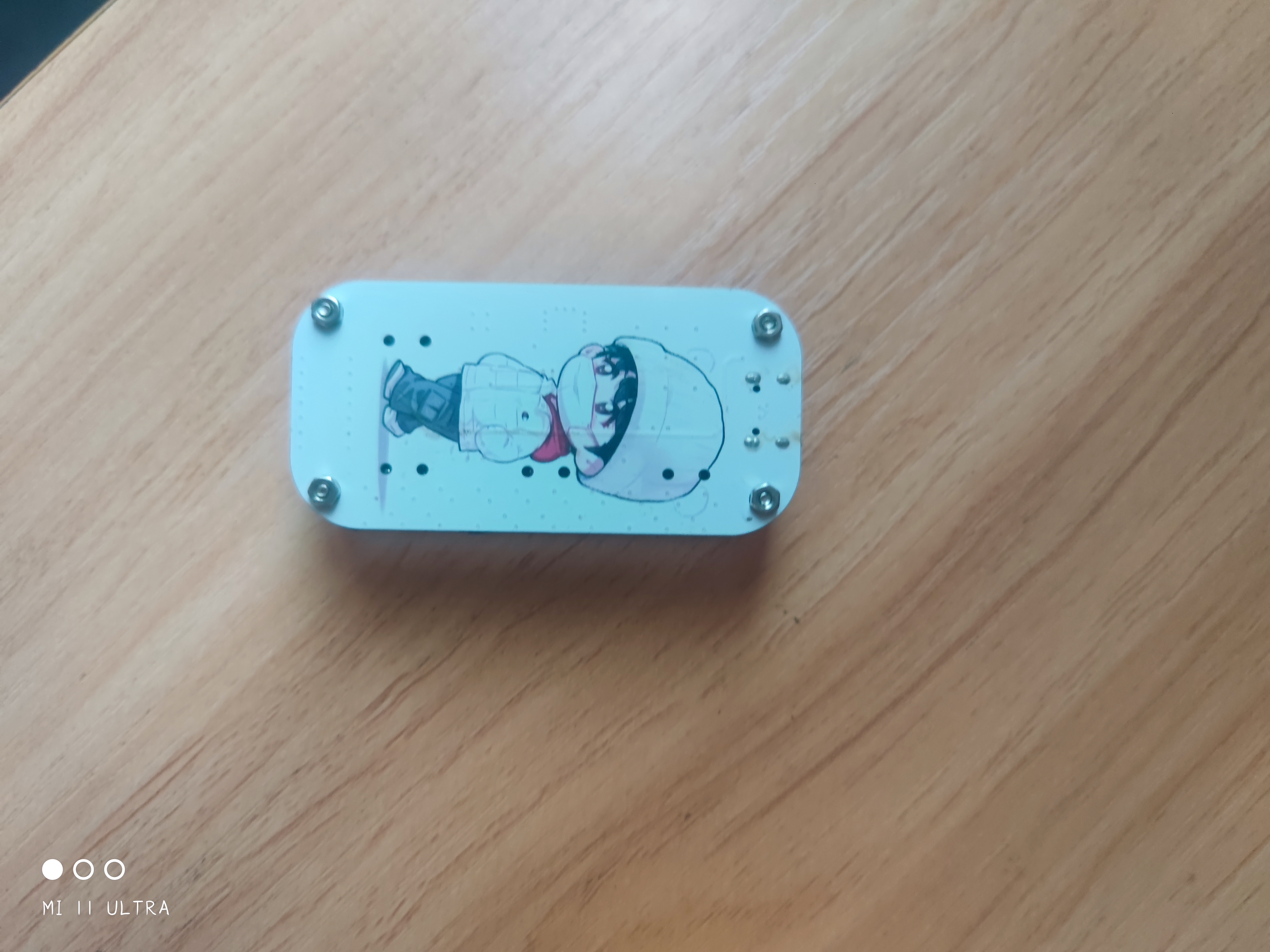

[Image 4 ]

[Image 5]

USB2.0 docking station.zip

PDF_USB2.0 Dock.zip

Altium_USB2.0 Dock.zip

PADS_USB2.0 Dock.zip

BOM_USB2.0 Dock.xlsx

92844

electronic

Design Files
