Voltage and current detectors

Overview

*1. Function Introduction

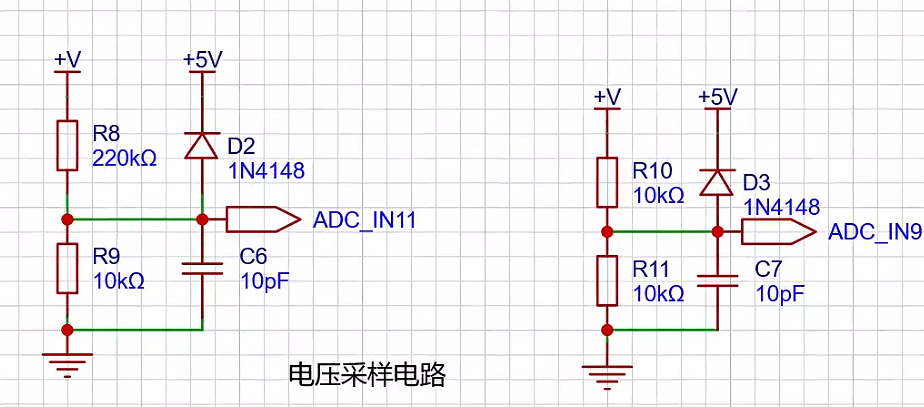

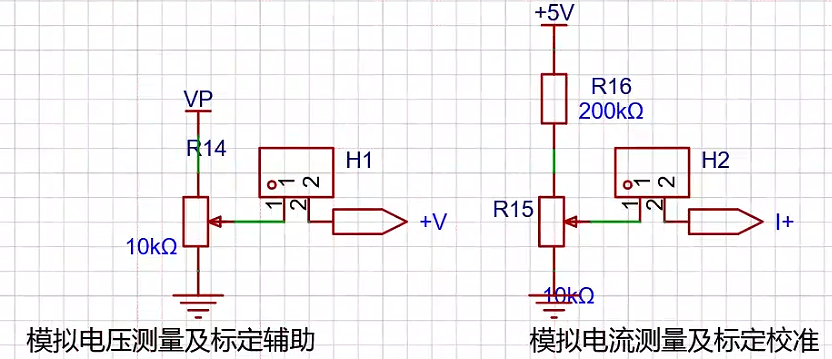

1. Accurately measures input voltage and current
2. Wide voltage measurement capability, maximum measurement voltage is 30V 2A
3. Maximum input voltage is 40V
*2. Project Attributes
: LCSC Training Camp
*3. Open Source License
: GPL 3.0

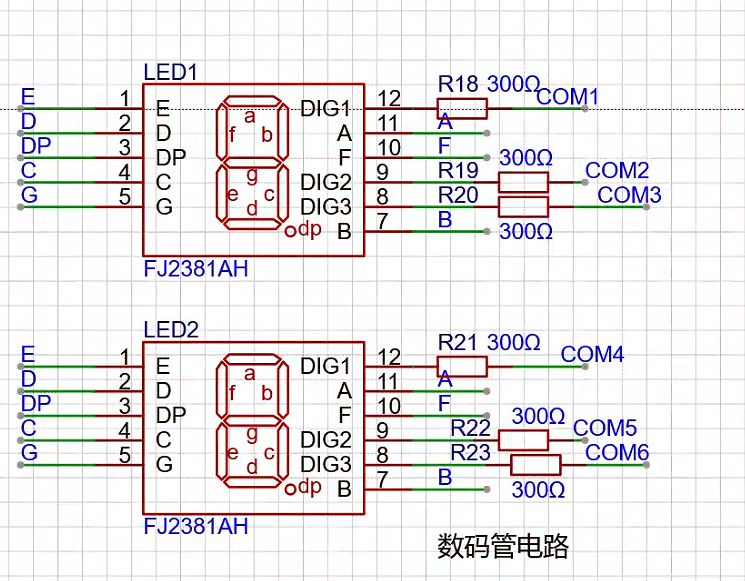

*4. Hardware:

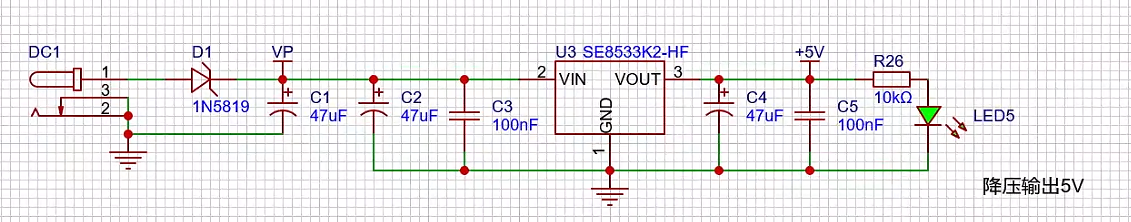

The step-down circuit here has a 12V input and 5V output

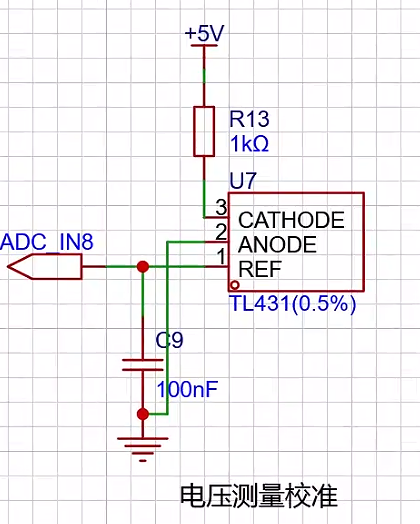

to reduce measurement voltage error. A TL431 is used to build the calibration circuit.

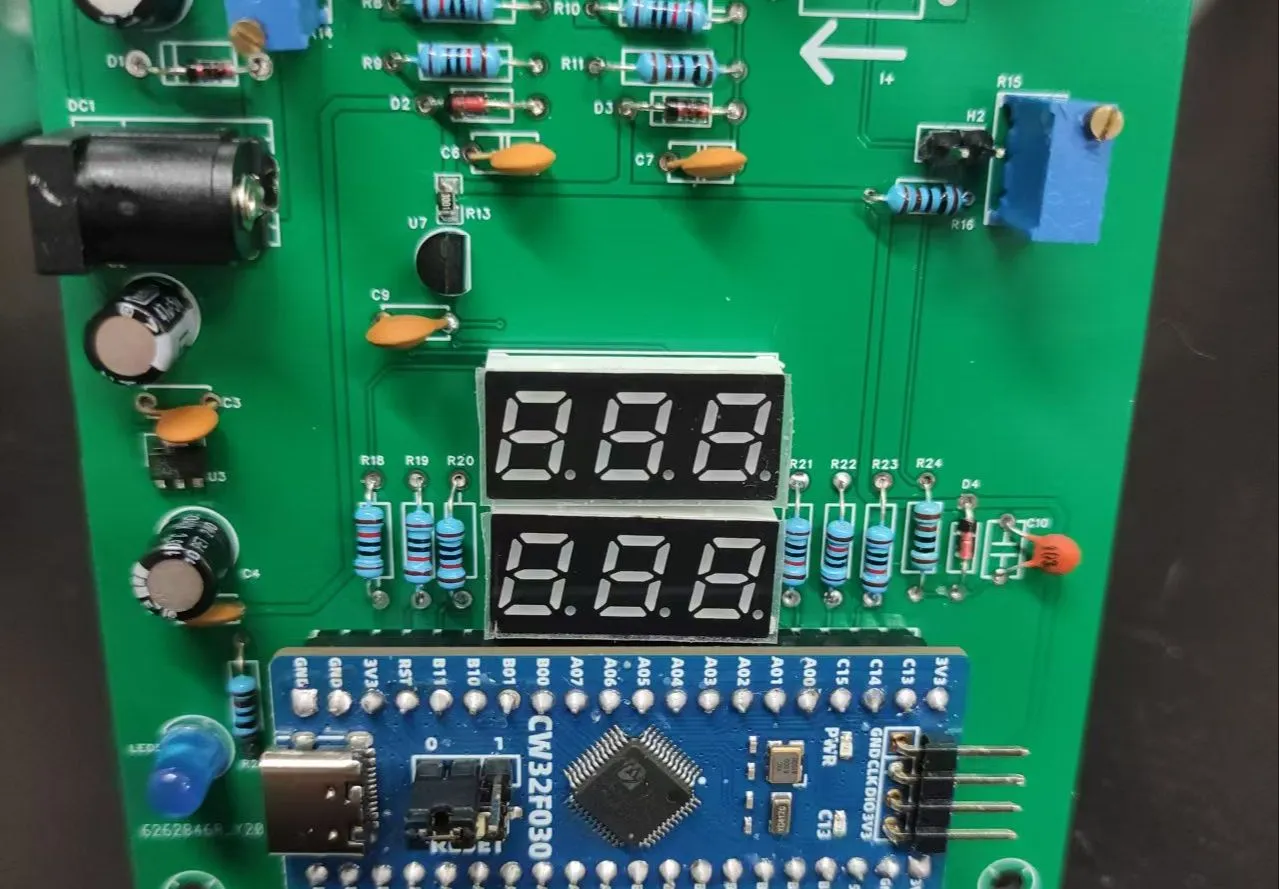

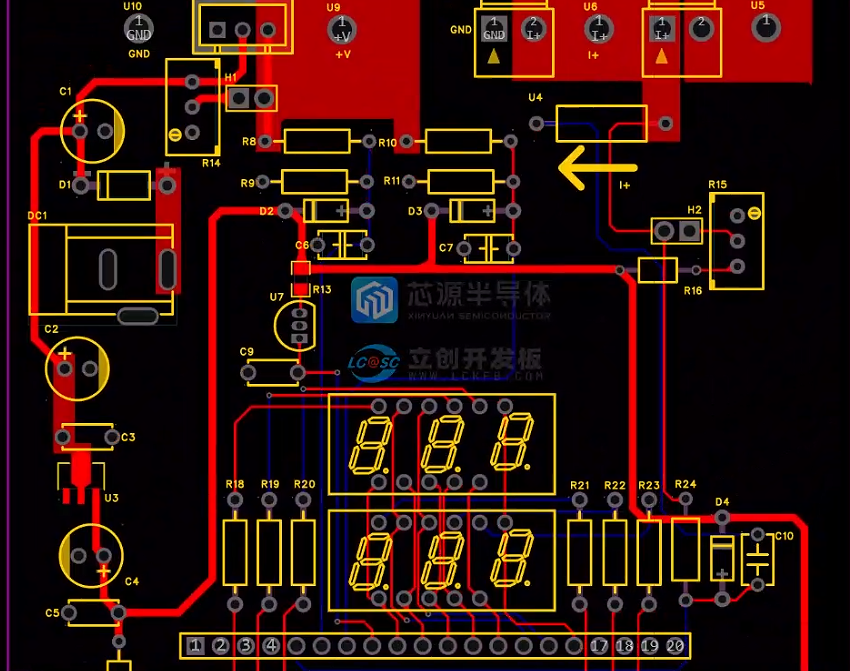

*5. PCB Part

*6. Software:

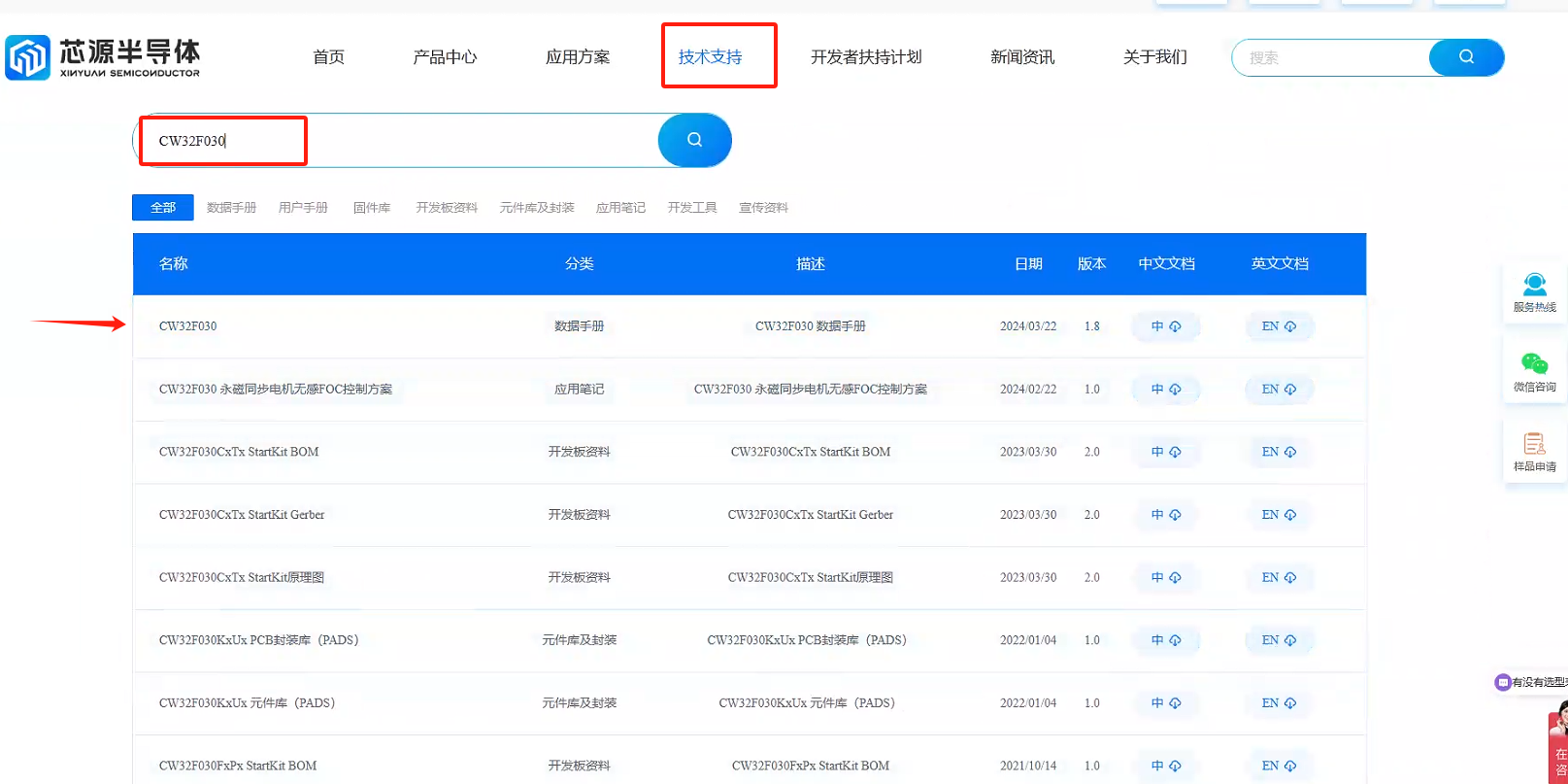

The corresponding example code can be downloaded from the CW32 official website. (

Uploaded as an attachment for download.)
