CD Reader - GL823K

Overview

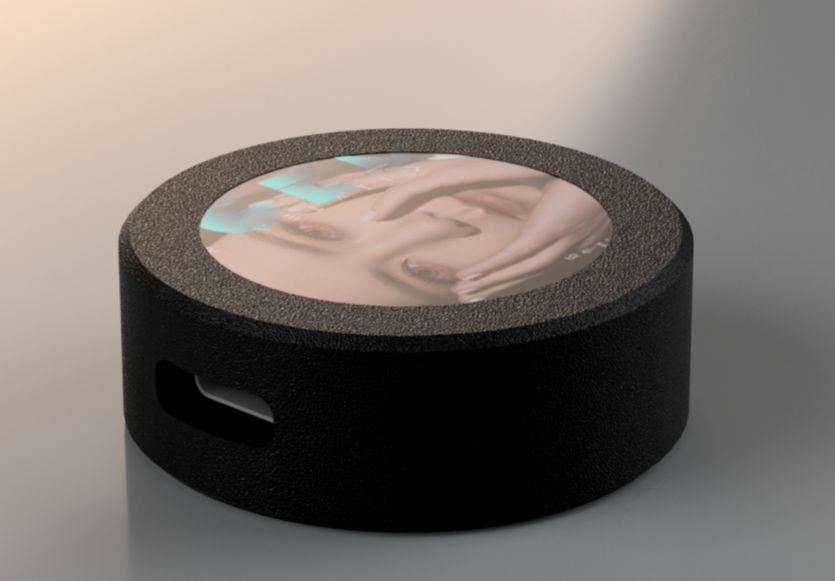

The cover is a rendering of Jie Jie's Revelation, which I absolutely love.
The background is
from a recent project I was working on, and I realized I needed a good card reader, so I made this project.
The main controller
uses a Skyworth GD823K ,
and the casing design
uses the Fusion360 design, with an appearance resembling a record. Black material is recommended for printing.
The top shell has a hole for placing the printed record on the panel.
M23 or M24 flathead screws are suitable for the connectors.
Tips: The panel printing file can be directly modified in LCSC EDA. Images can be quickly created using Photoshop or PowerPoint; simply make them circular, export them as PNGs, and import them with a diameter of 27mm. The two bottom parts are for placing the record; please select a thickness of 1.5mm.

Other links
: Bilibili video: https://www.bilibili.com/video/BV1Nr421F7KU/
The open-source files should be completed by June 30th and will be attached.
