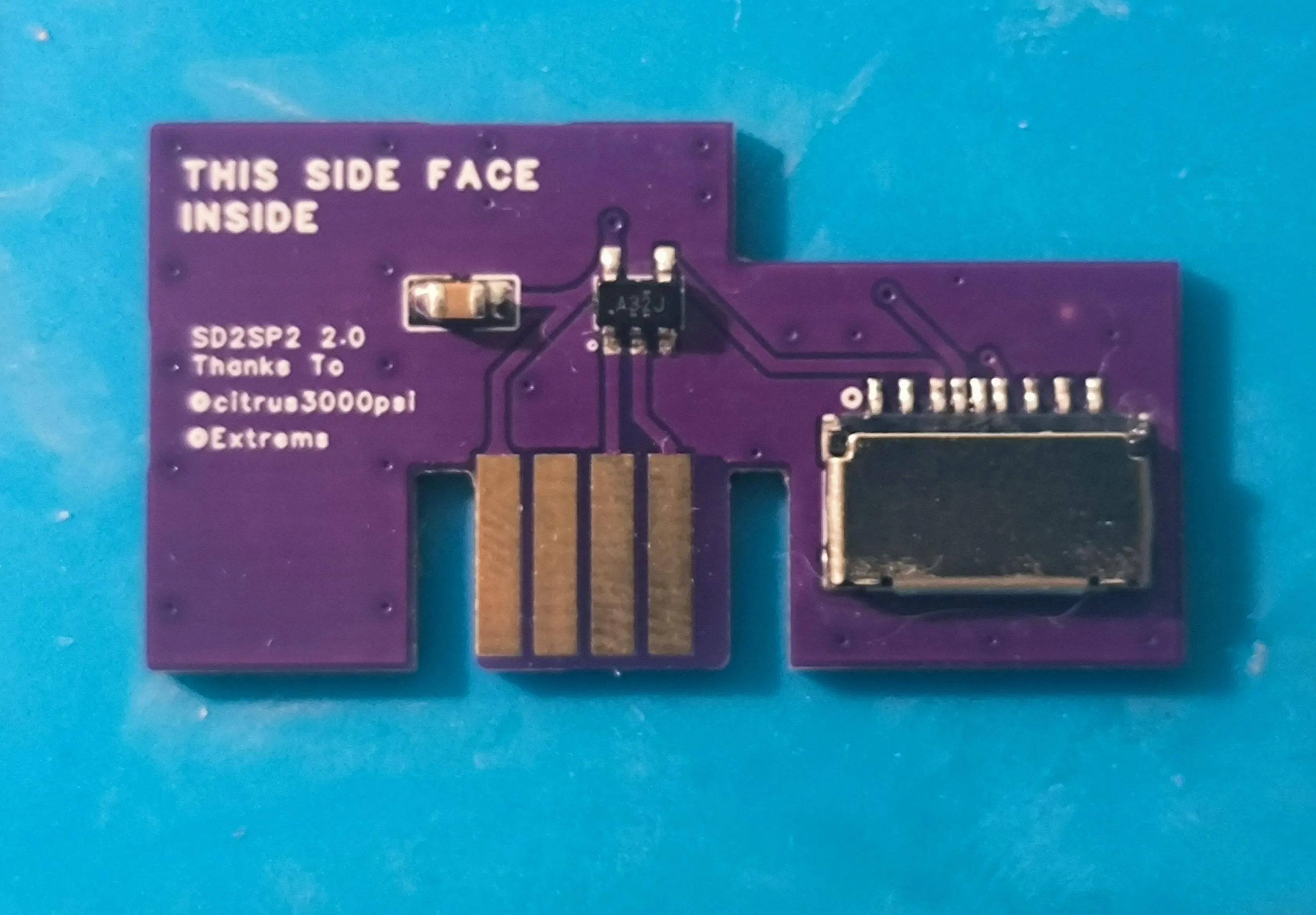

NGC uses a TF card adapter for SD2SP2 2.0

Overview

NGC uses a TF card adapter inserted into the SP2 interface. By adding an OR gate chip, the CPU load is reduced, thus resolving the stuttering issue of the initial Veroni card-head CG.
The video demonstration shows the actual Veroni card-head CG device.
