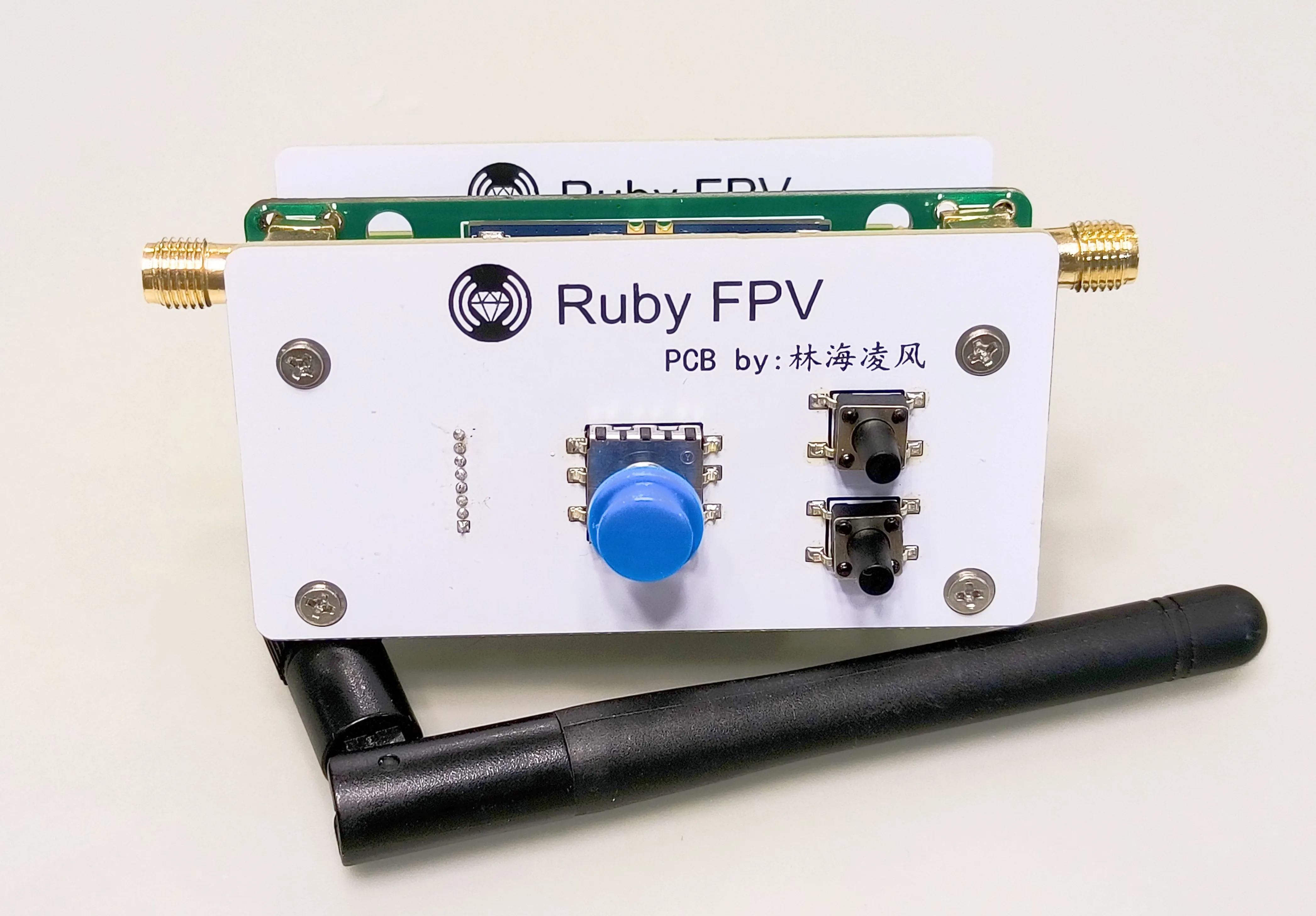

【RubyFPV】Radxa Zero 3W Expansion Board

Overview

The antenna mount uses this type (5cm in length):

Five-way buttons: Up = Previous, Down = Next, Left = Back, Right = Shortcut key Q1 Inward = Confirm.
If the up and down buttons are reversed during use, you can adjust them in the Ruby system. Shortcut key definitions can also be edited within the system.
Bilibili test video: [OpenIPC] Hand-built Radxa zero 3W expansion board for Ruby FPV firmware.
