Fast-edge pulse square wave generator

A fast-edge pulse square wave generator produces a square wave signal with a fast edge.

This fast-edge pulse square wave generator produces a square wave signal with a fast edge. It can be used in scenarios requiring low-cost generation of fast rise/fall times.
The measured rise time of this circuit is less than 600ps. According to the formula BW=0.35/Tr, it can also be used to test
how the frequency of the generated waveform can be changed by modifying the values ​​of R9 and C6.
Introductory video: [Fast-edge pulse square wave generator, oscilloscope bandwidth testing, signal reflection testing]

PDF_Fast Edge Pulse Square Wave Generator.zip

Altium_Fast-Edge Pulse Square Wave Generator.zip

PADS_Fast Edge Pulse Square Wave Generator.zip

BOM_Fast Edge Pulse Square Wave Generator.xlsx

93725

FPGA-EP4CE6E22+ESP32

The FPGA and ESP32 were designed on the same circuit board.

Chip Model
: FPGA: EP4CE22E22C8N ;
ESP32: ESP32-12F . The FPGA has as many pins as possible for easy secondary development. The FPGA is connected to the ESP32's serial port. Packaging and Soldering : The FPGA is in an LQFP package, and all resistors and capacitors use 0805 or larger packages for easy DIY manual soldering. Circuit Board Design: This circuit board was designed using LCSC EDA Professional Edition. It is a four-layer board with a power supply range of 5.5-36V.

PDF_FPGA-EP4CE6E22+ESP32.zip

Altium_FPGA-EP4CE6E22+ESP32.zip

PADS_FPGA-EP4CE6E22+ESP32.zip

BOM_FPGA-EP4CE6E22+ESP32.xlsx

93726

STC32G12K128-LQFP48 Development Board

The simple STC32G128K development board measures approximately 49.4mm x 72mm.

The main controller uses an STC32G12K128-35I-LQFP48
with 33 I/O ports. It has an onboard
5V to 3.3V
converter, one onboard power LED, one
onboard user LED, two onboard user buttons, one power switch, an external
8MB
FLASH interface, an onboard thermistor, a DS18B20
onboard satellite positioning module,

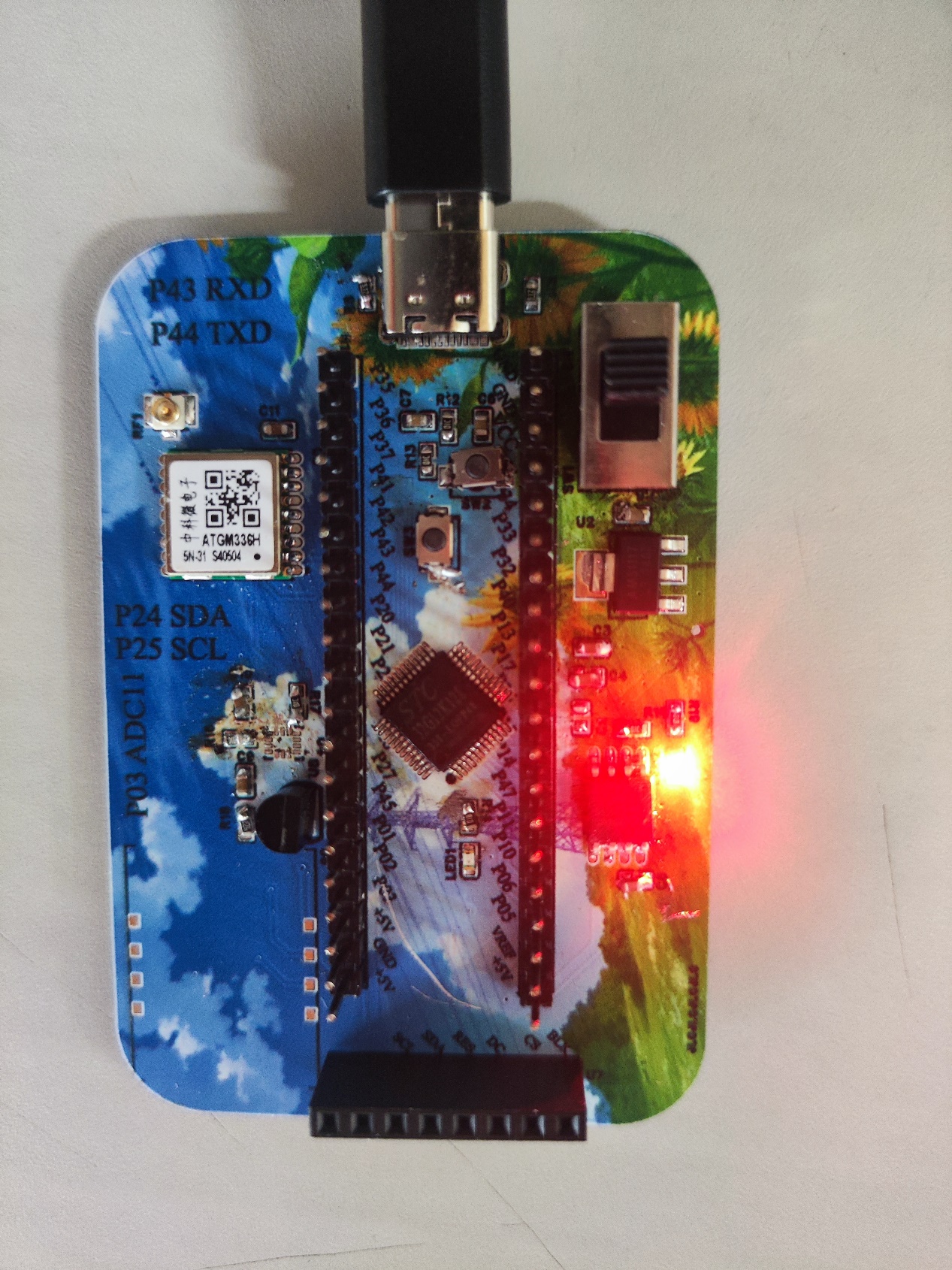

and Figure 1 (front view),

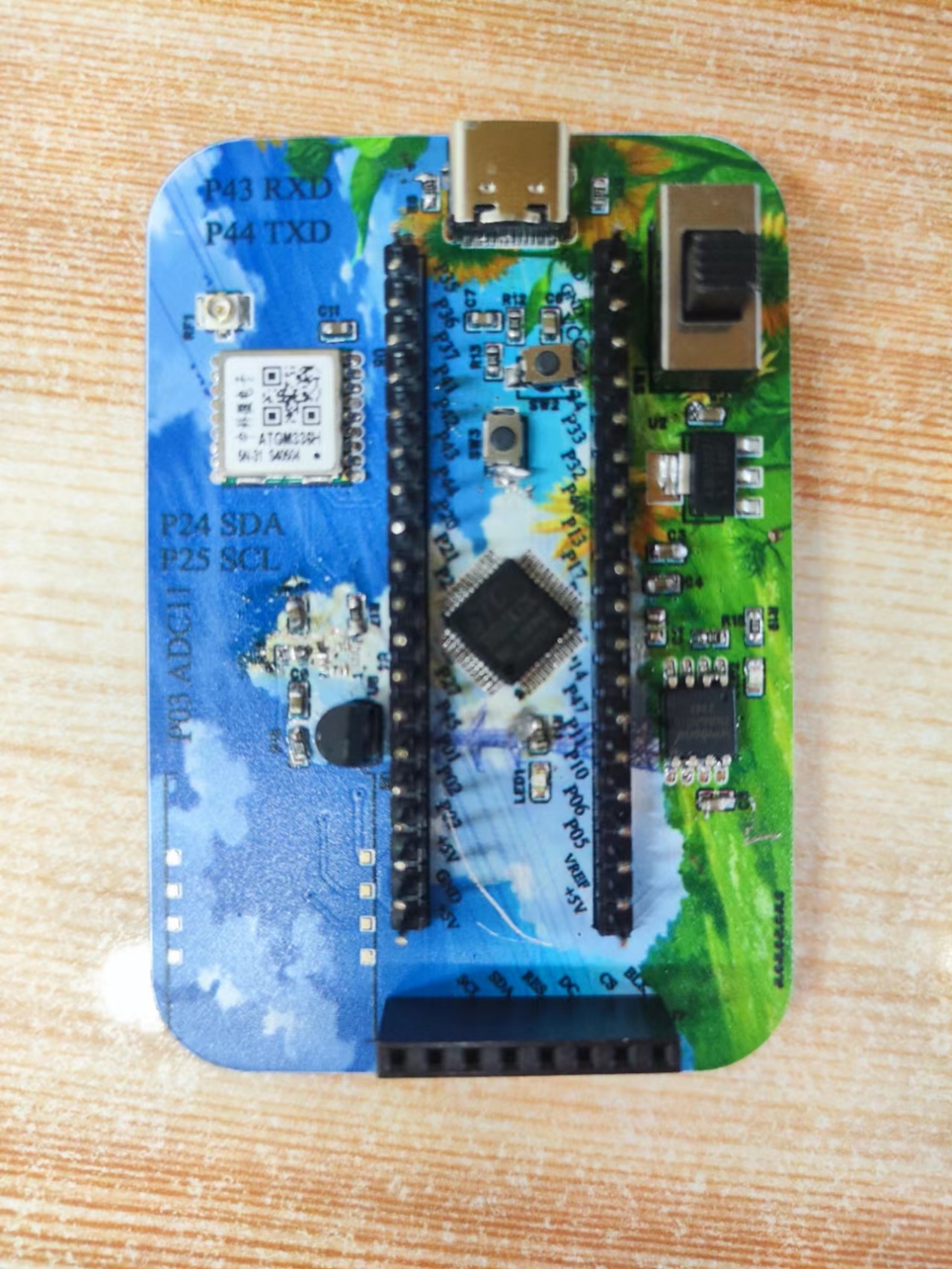

Figure 2 (back view), and
Figure 3 (power-on effect).

PDF_STC32G12K128-LQFP48 development board.zip

Altium_STC32G12K128-LQFP48 development board.zip

PADS_STC32G12K128-LQFP48 development board.zip

BOM_STC32G12K128-LQFP48 Development Board.xlsx

93727

#Bootcamp# Simple Oscilloscope Based on GD32 -- 5589055A

GD32-based oscilloscope

(1) Analog front-end processing circuit: responsible for processing the input detection analog signal and then giving it to the microcontroller for recognition. The specific circuit includes AC/DC coupling selection circuit, voltage attenuation circuit, and signal processing circuit.
(2) Power supply circuit: using the LCSC GD32E230C8T6 development board to convert 5V to 3.3V via LDO.
(3) Microcontroller part: directly using the LCSC GD32E230C8T6 development board to connect to the motherboard via a header.
(4) Human-machine interaction circuit: used to control the oscilloscope functions, including buttons, encoder, 1.8-inch TFT LCD screen, providing a foundation for the development of oscilloscope functions.

Measurement range: -80V — +250V.
Refer to the official case.
The oscilloscope can automatically capture the waveform, frequency, phase, etc. of the signal and present them on the display screen
to facilitate the analysis of the circuit working status.
