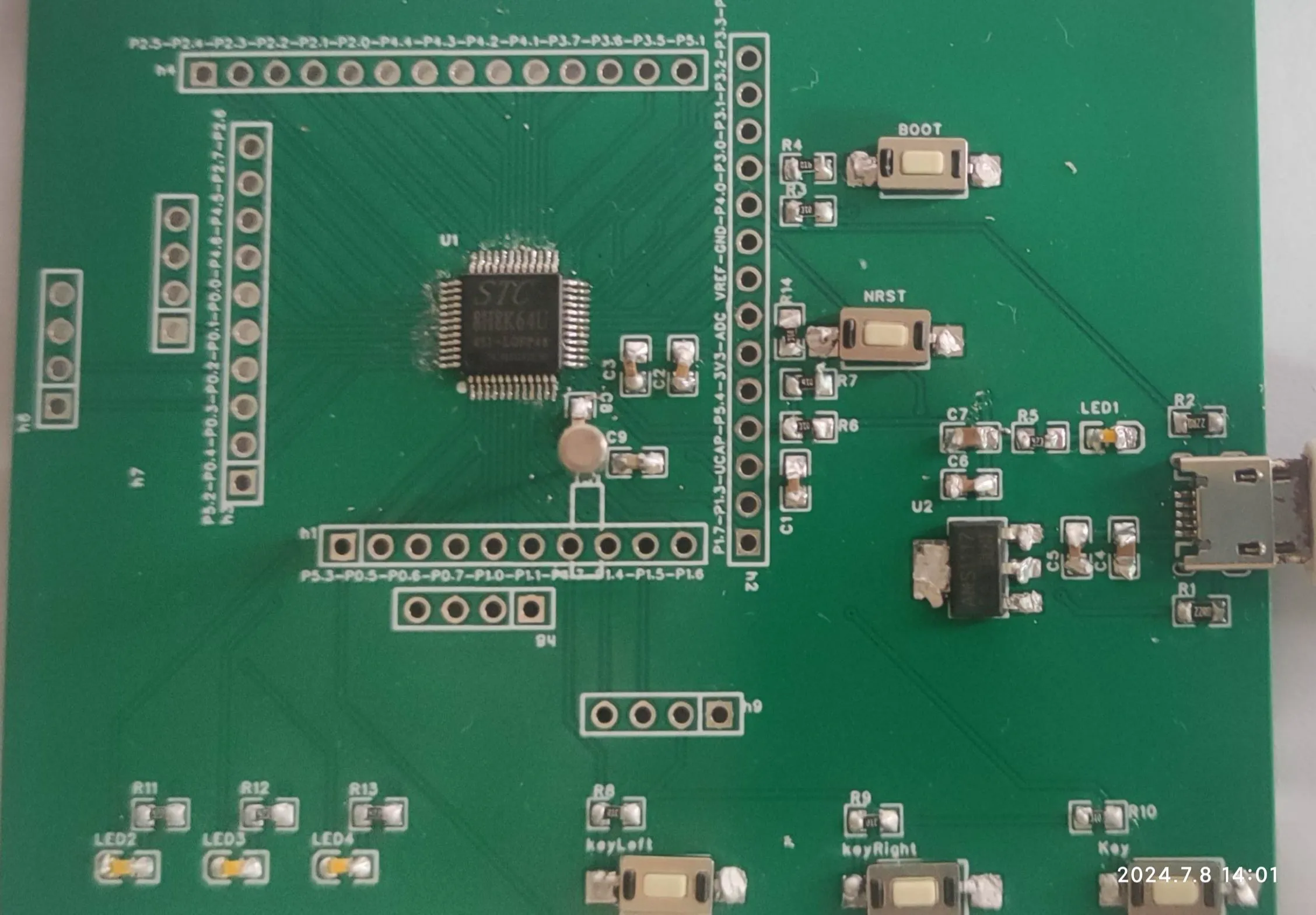

STC8 Minimum System Development Board

Overview

All I/O ports have been brought out.
I2C, SPI, USART2, USART3, and USART4 I/O ports are also separately brought out for easy module use.
To program, simply pull the BOOT button low and power on again.

LED2 blinks by default upon power-on; the blinking can be controlled via the keyLeft button.
LED3 is off by default; its on/off state can be controlled via the keyRight button.
The test program is attached and can be downloaded and programmed for testing and verification.
