RG8MCLAM

RTL8812EU baseplate OPENIPC_FPV

Overview

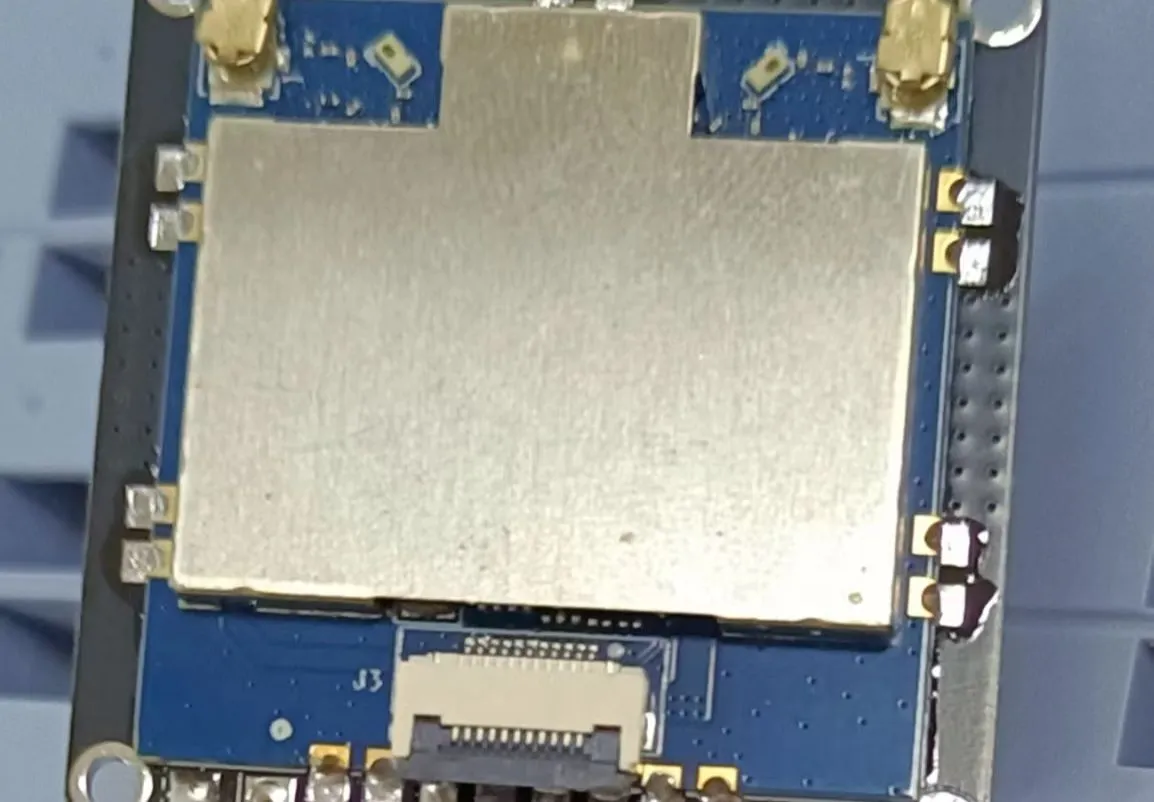

This design references the 8812EU network card soldering baseboard by Lin Hai Network Card expert: https://oshwhub.com/zcshanlin/8812eu-di-ban. Based on this, the pin positions of the 8812eu schematic were modified, and a 26*26mm heatsink and a 1.25mm socket were used.

Design Files
