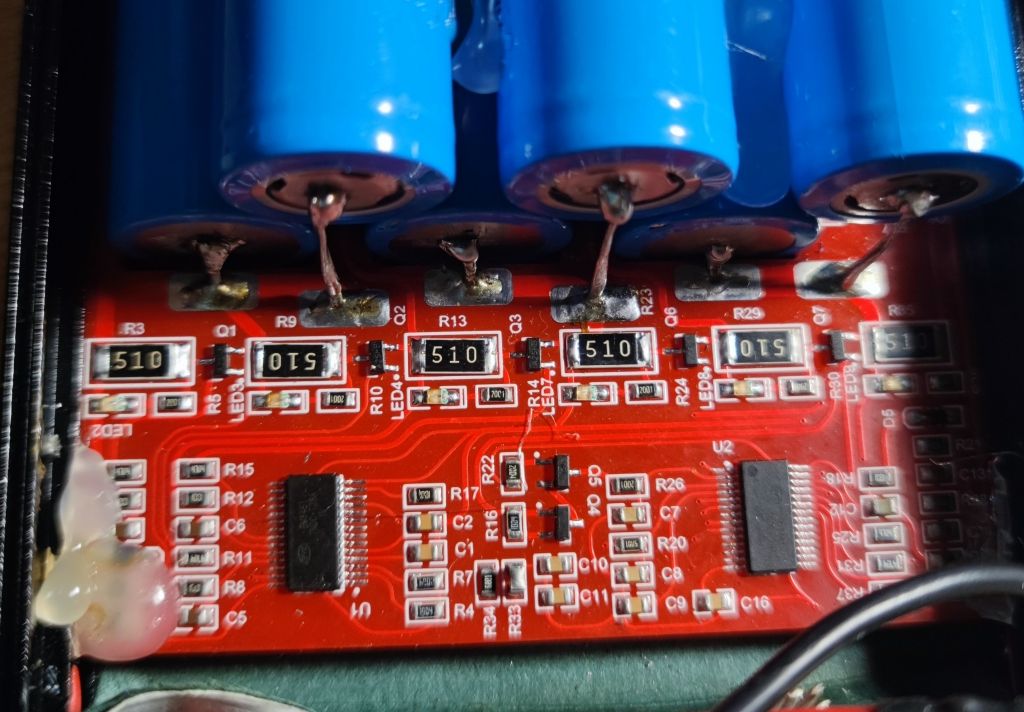

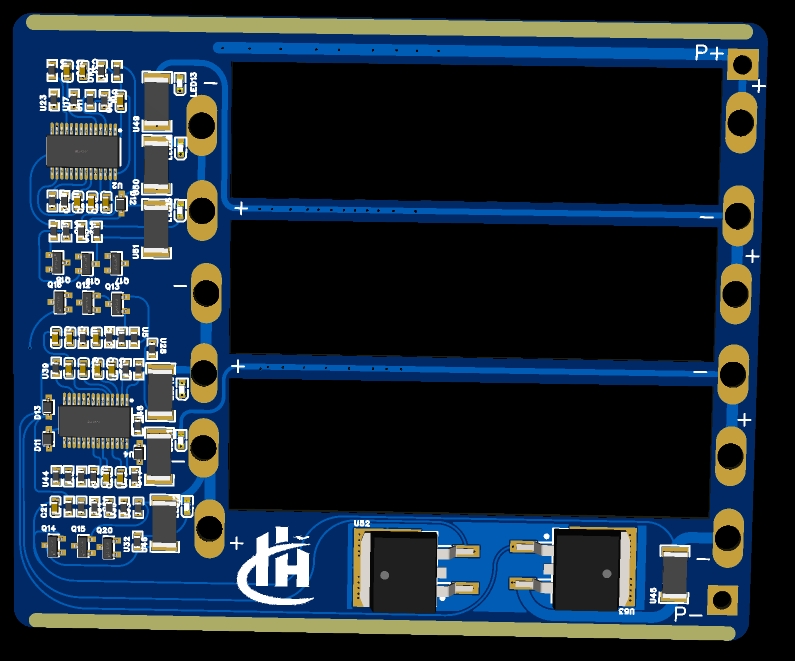

BM3451 Battery Equalizer Board V2.0

Overview

This 18650 protection board uses
6 18650 lithium batteries
to output 24V
and features short-circuit protection, overcurrent protection, and undervoltage protection.
The entire project is open source

and requires no coding. All hardware components are included

. It is used with T12 soldering irons and C245 soldering iron power supplies.
The project files are as follows:

Updated June 2, 2024, V2.0: Improved wiring standardization, enlarged battery holes for greater stability, and most importantly, free sample size
testing. We welcome your feedback and suggestions for improvement.
