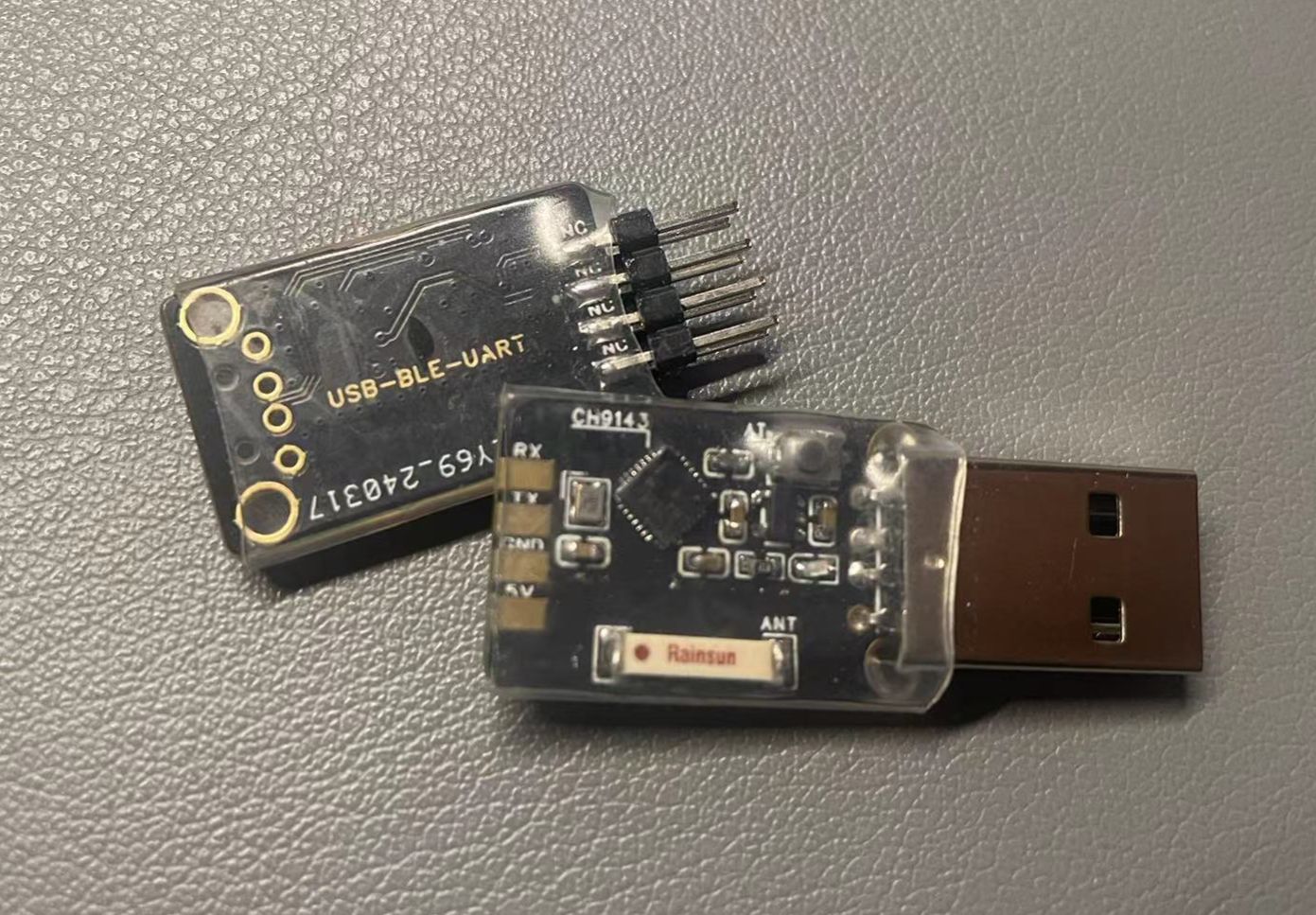

CH9143 Three-way transparent Bluetooth wireless serial port

Overview

Note: The 1.6mm thick

Zhufei Technology serial port includes RTS flow control. For complete replacement, please modify the engineering diagram accordingly

.

The bottom pads of the CH9143 QFN package need to be soldered.

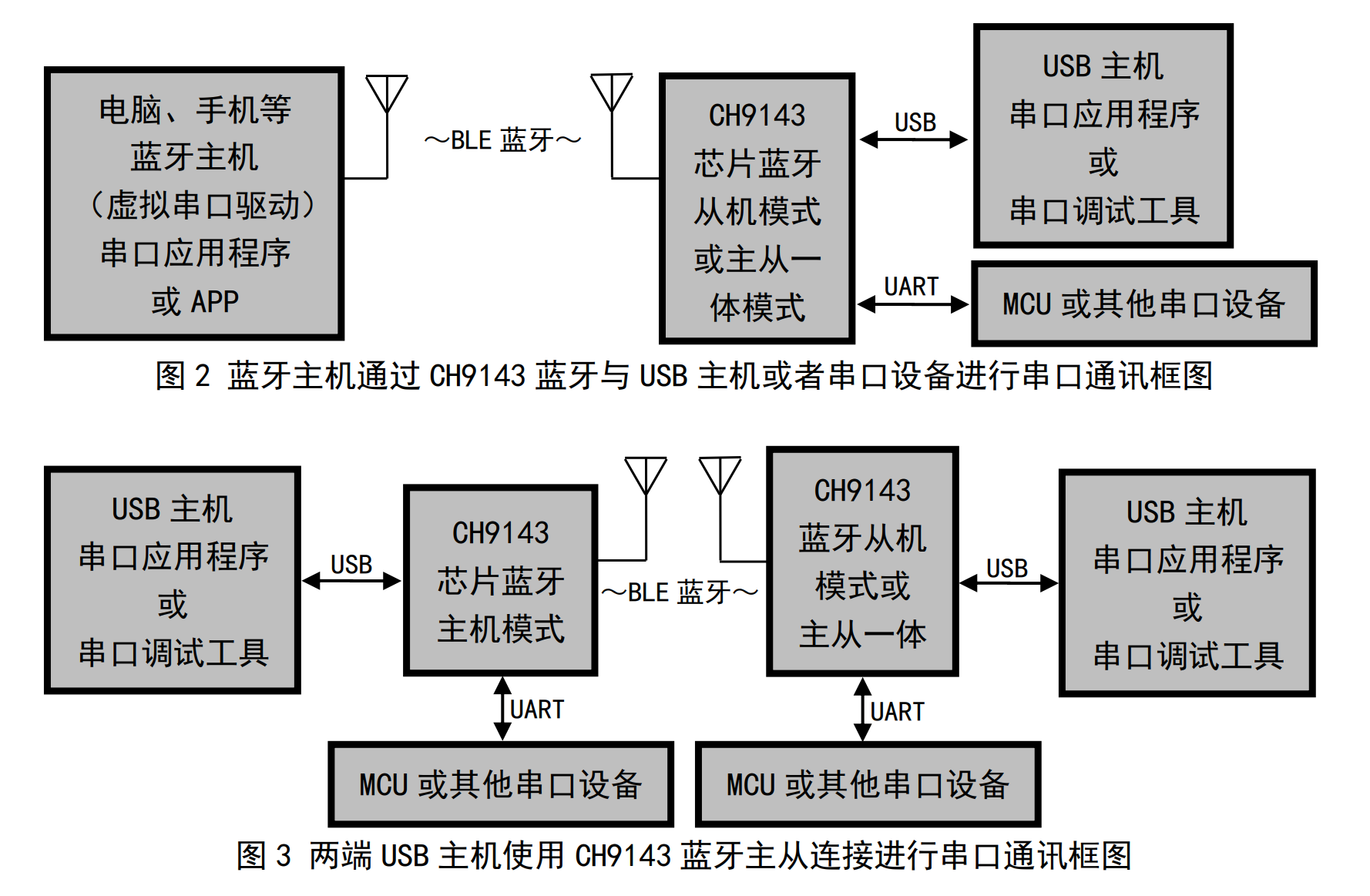

It supports USB/serial/Bluetooth three-way communication; data received from any interface will be sent to other interfaces.
The driver is CH343SER, driverless for Win10, compatible with common serial port software.
A button on the board needs to be pressed when inputting AT commands. The chip only supports AT commands returned from the serial port.
The factory default baud rate is 115200bit/s.
Bluetooth defaults to master-slave mode and supports BLE4.2.

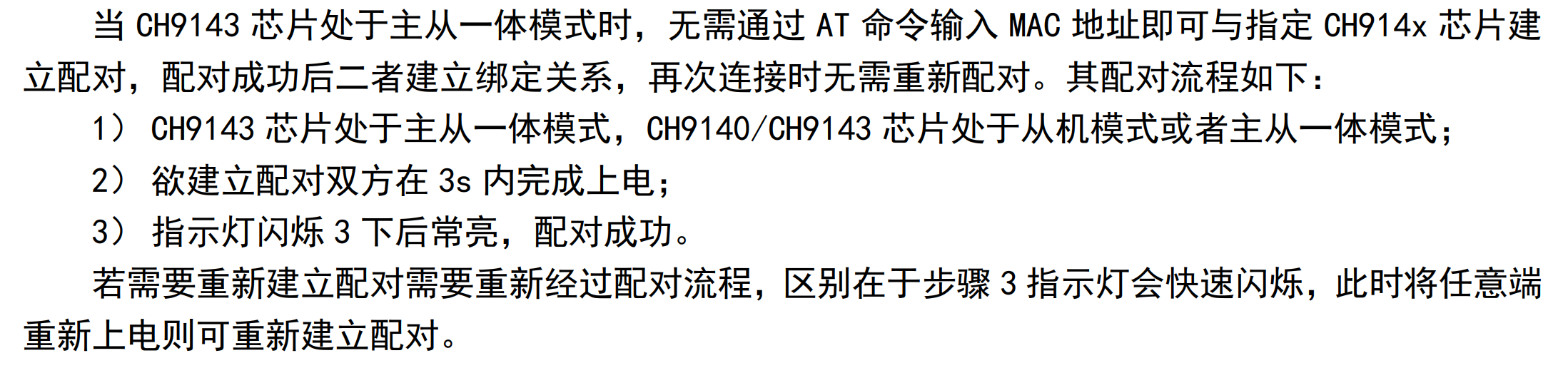

CH9143 intelligent pairing function:

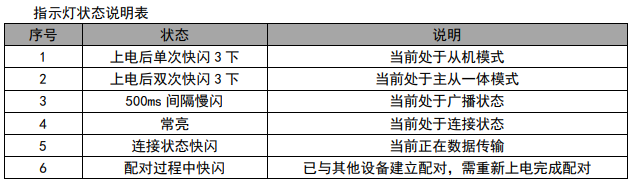

Indicator light description:

CH9143 manual: https://www.wch.cn/downloads/CH9143DS1_PDF.html
Official module manual: https://www.wch.cn/downloads/BLE2U_PDF.html
