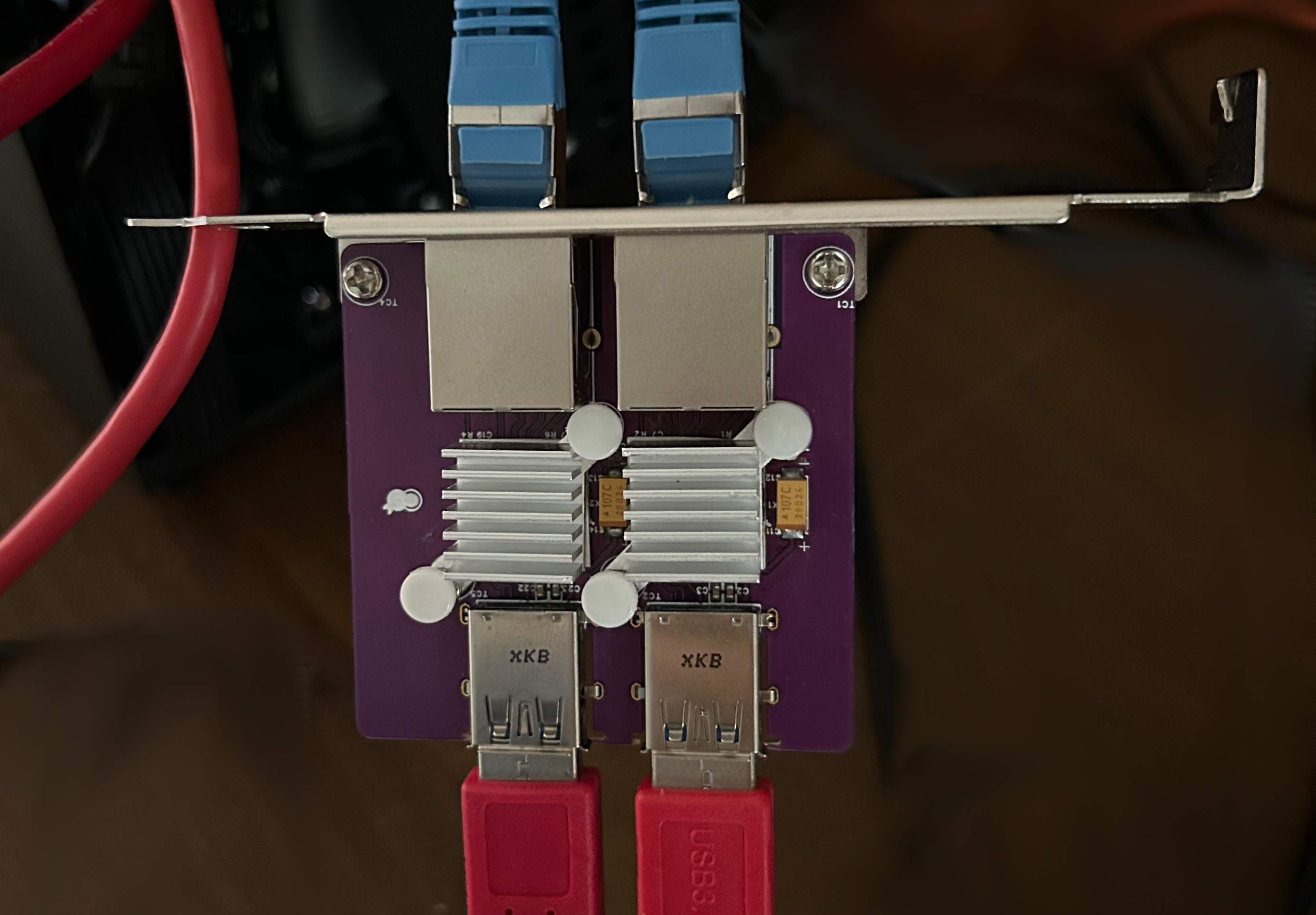

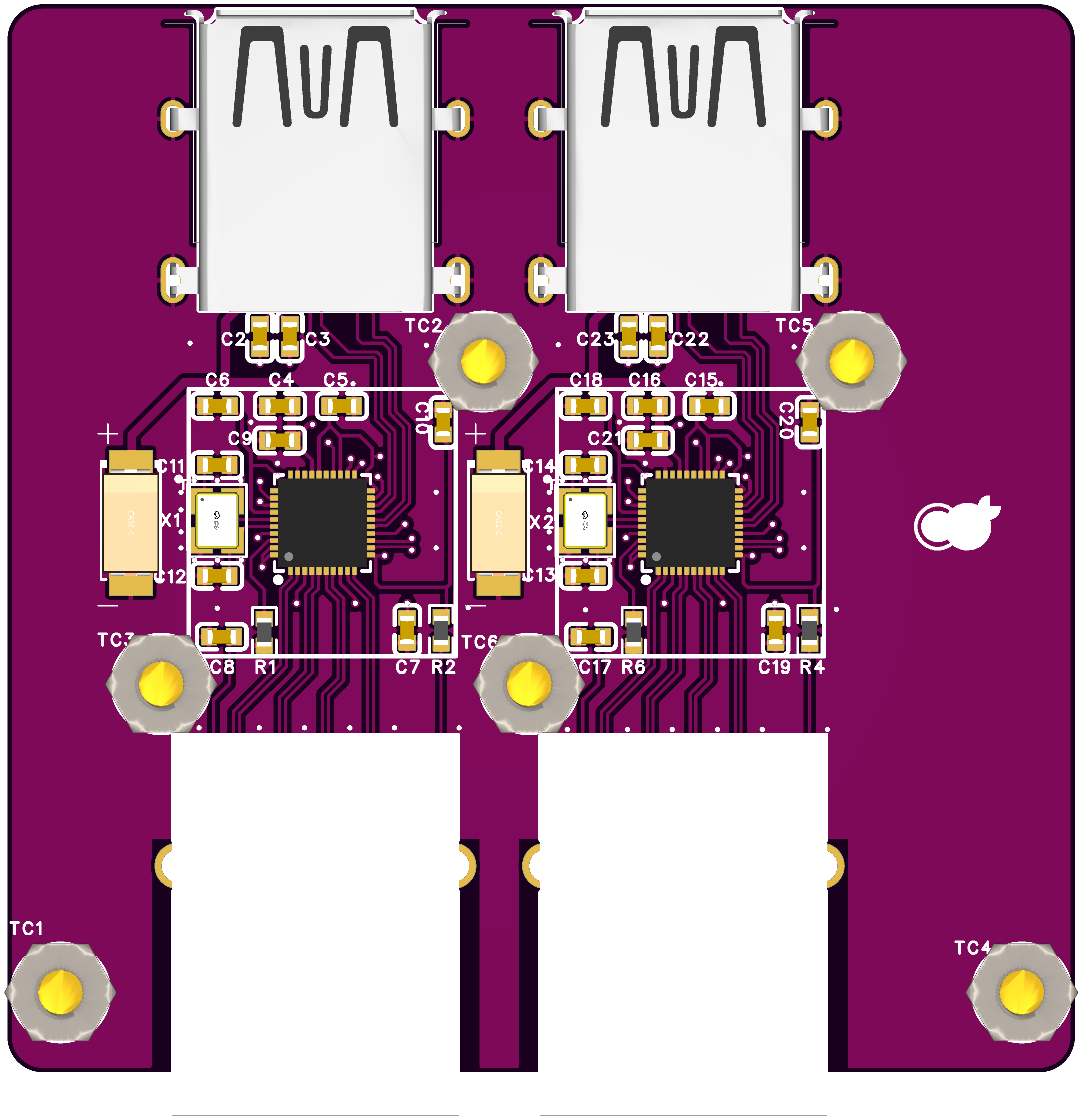

The motherboard has a USB 3.0 to dual Gigabit Ethernet PCIe slot with a fixed RTL8153B chip.

Overview

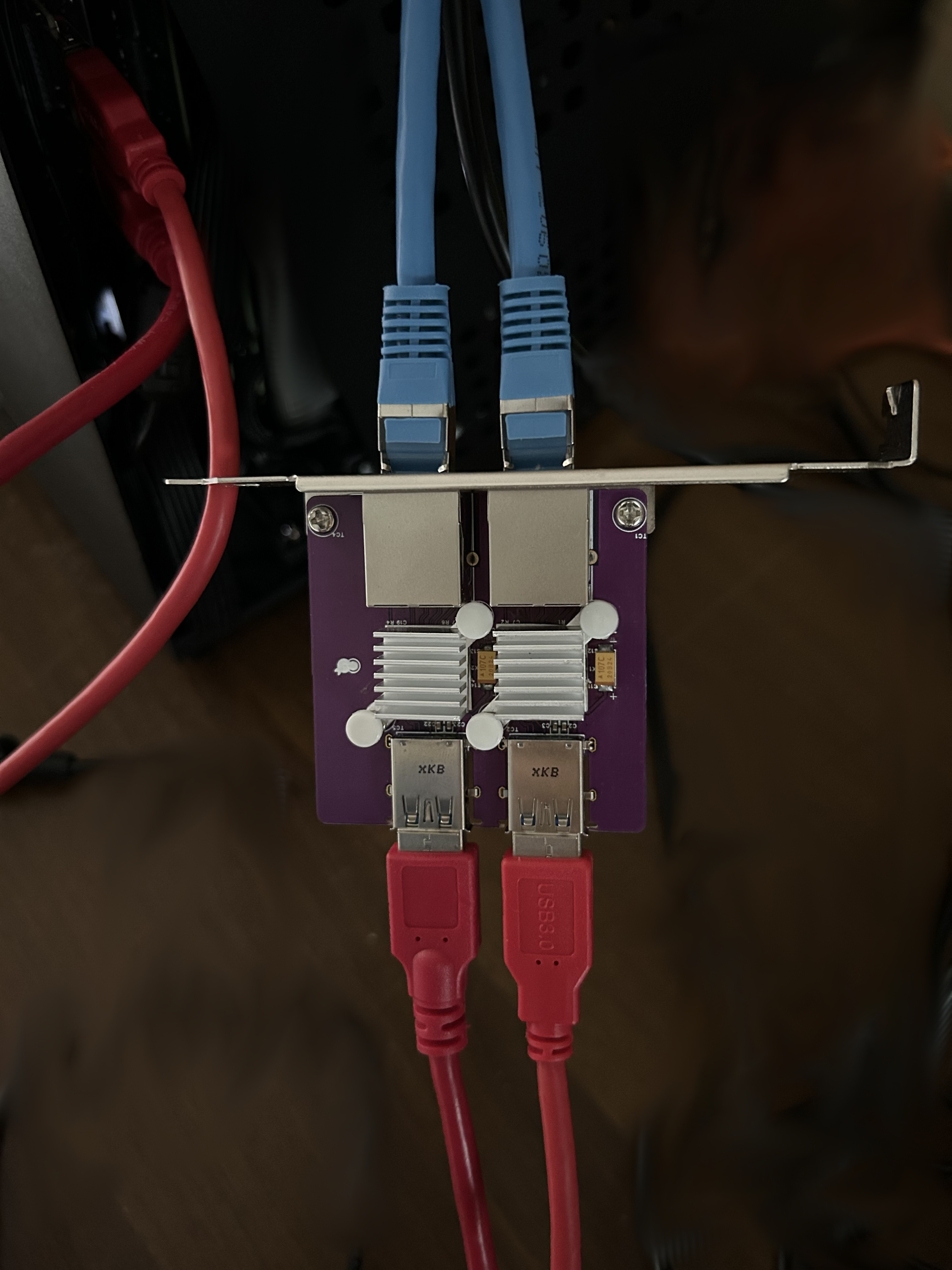

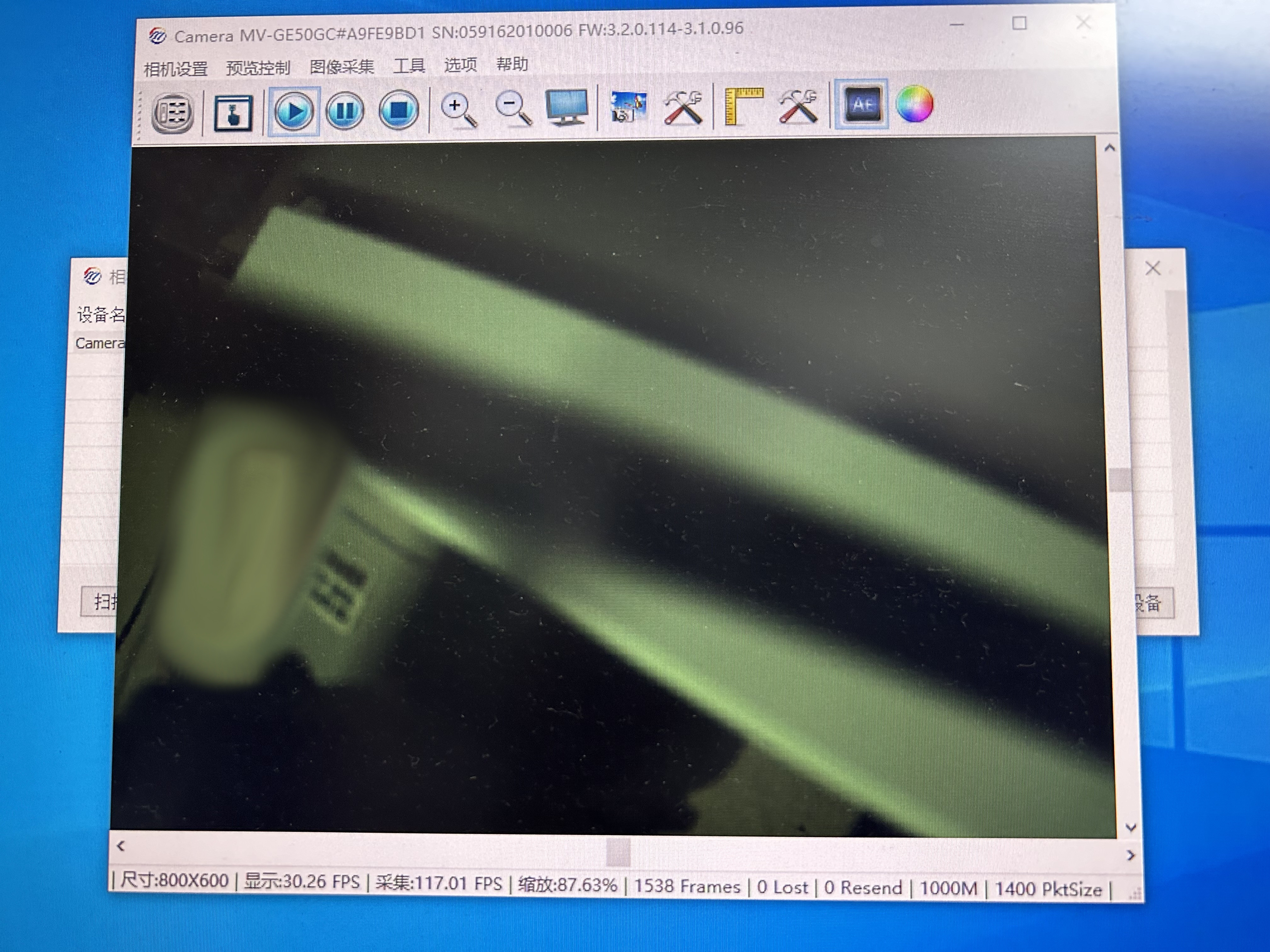

I recently built a PC and discovered that the motherboard only has a single network card, making it inconvenient to connect a camera. Using a USB-to-Ethernet adapter wasn't ideal either, so I adopted a solution from experienced users, modifying the mounting method to use a PCIe slot and adding double-layer heatsinking to solve the overheating issue. After a day of continuous stress testing and photography, no connection drops were observed, proving that the module can basically meet the requirements in an ideal environment. I'll work on the external power supply setup later when I have time. This is my first time designing a PCB, and I've chosen immersion gold plating by default. Any suggestions or questions are welcome.

Original project link:
https://oshwhub.com/Kirito/usb3-0-wang-ka-rtl8153b

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
